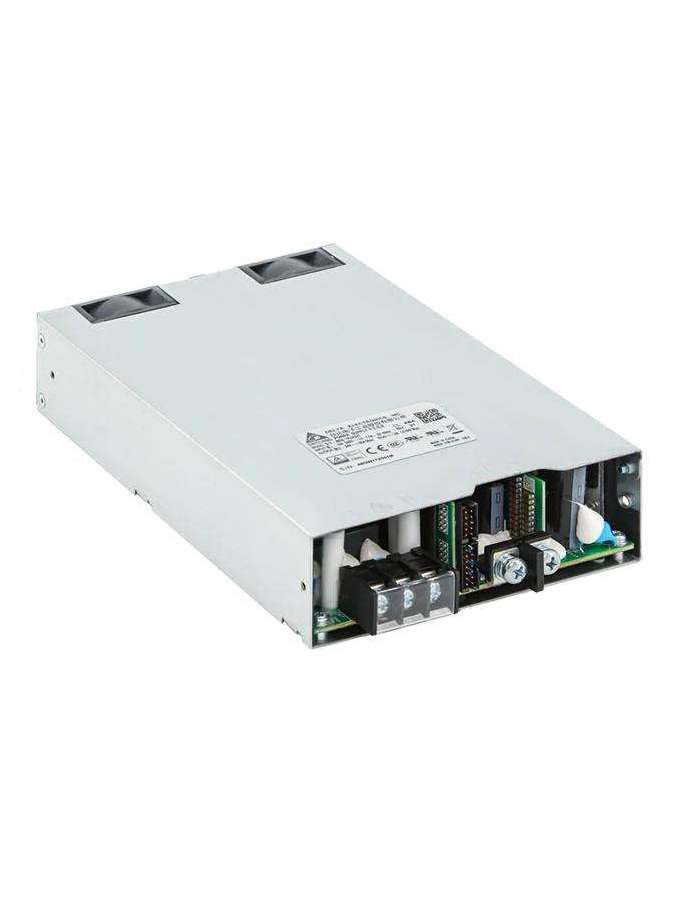

MEB-1K2A42T DELTA

Ficha técnica

Output Current

28.5A

Output Voltage

42V

Output Power

1200W

Nominal Input Voltage

100-240Vac

Input Voltage Range

85-264Vac

Nominal Input Frequency

50-60Hz

Input Frequency Range

47-63Hz

Input Current

15A

Inrush Current

40A @ 264Vac, cold/hot start

Power Factor at 100% load

0.95 @ 115V/50Hz, 230V/50Hz, full load

Operating Temperature

Absolute Maximum/Minimum Rating -20°C to +70°C

Storage Temperature

-40°C to +85°C

Operating Humidity

5-95% RH (Non-Condensing)

CE

In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU EN 60601-1: 2006 + A11: 2011 + A1: 2013 + A12: 2014 & EN 60601-1-2: 2015

Emission

EN/BS EN 55011 / EN/BS EN 55032,FCC Title 47:Class B

Harmonic Current Emissions

IEC61000-3-2: Meet Class D limit

Voltage Fluctuation and Flicker

IEC61000-3-3

Dynamic Response (Overshoot and Undershoot O/P Voltage)

± 5% @ with 50-100% load change

Vibration (Operating)

5-500Hz, 2Grms, 15 minute for each three axis

Shock Test (Non-Operating)

50G, 11ms, 3 shocks for each direction

Over Temperature

Latch Mode for Main output

Short Circuit

Hiccup Mode for Main output and Standby (Non-Latching, Auto-Recovery)

Power De-rating

Linear power derate from 100% load at 50°C, to 50% load at 70°C

Operating Altitude

Up to 5,000 meters (up to 16,400 feet or 106-54kPa)
