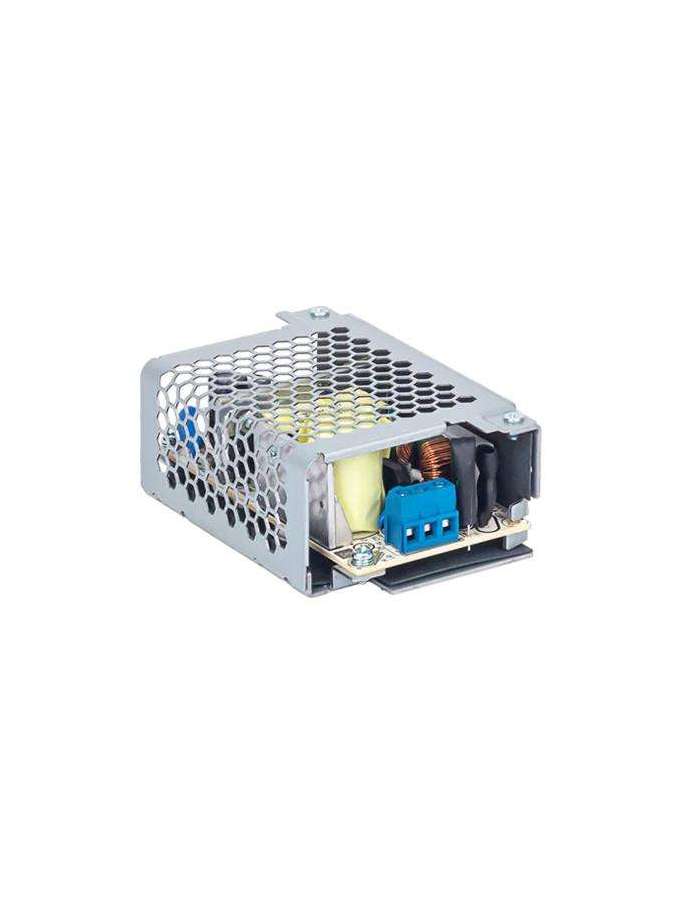

PJU-13V60WCBA DELTA

Ficha técnica

Output Current

4.3A

Output Voltage

13.8V

Output Power

60W

Nominal Input Voltage

100-240Vac

Input Voltage Range

90-264Vac

Nominal Input Frequency

50-60Hz

Input Frequency Range

47-63Hz

Case Chassis / Cover

SECC

Operating Temperature

-20°C to +70°C

Storage Temperature

-40°C to +85°C

Operating Humidity

5 to 95% RH (Non-Condensing)

Shock Test (Non-Operating)

IEC 60068-2-27, Half Sine Wave: 50G for a duration of 11ms; 3 times per direction, 9 times in total

Vibration (Non-Operating)

IEC 60068-2-6, Random: 5-500Hz; 2.09Grms; 20 min per axis for all X, Y, Z directions

Operating Altitude

0 to 5,000 Meters (16,400 ft.)

Overload / Overcurrent

105-160% of rated load current, Hiccup mode, Non-Latching (Auto recovery)

Over Temperature

Latch Mode

Short Circuit

Hiccup Mode, Non-Latching (Auto-Recovery when the fault is removed)

Protection Against Shock

Class I with Primary Earth connection

CE

In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU

Harmonic Current Emissions

IEC/EN/BS EN 61000-3-2, Class A, GB17625.1

Cooling System

Convection

Power De-rating

See datasheet

Expected Cap Life Time

10 years (115Vac & 230Vac, 50% load @ 35°C)

Immunity

Generic Standards: EN/BS EN 55024

Indicator

Green LED: DC OK

Output Voltage Adjustment Range

13.52-14.00V

Start-up with Capacitive Loads

3,600µF at 13.8V/4.3A

Vibration (Operating)

IEC 60068-2-6, Sine Wave: 10-500Hz; 2G peak; displacement of 0.35mm; 60 min per axis for all X, Y, Z directions

Shock Test (Operating)

IEC 60068-2-27, Half Sine Wave: 10G for a duration of 11ms; 1 time in X axis

Pollution Degree

2

Safety Entry Low Voltage

SELV (EN 60950-1, EN 62368-1)

Over Voltage Category

II

Battery Polarity Protection

Yes

Wrong Battery Voltage Protection

Yes, 16Vdc Max will not cause damage to the unit
