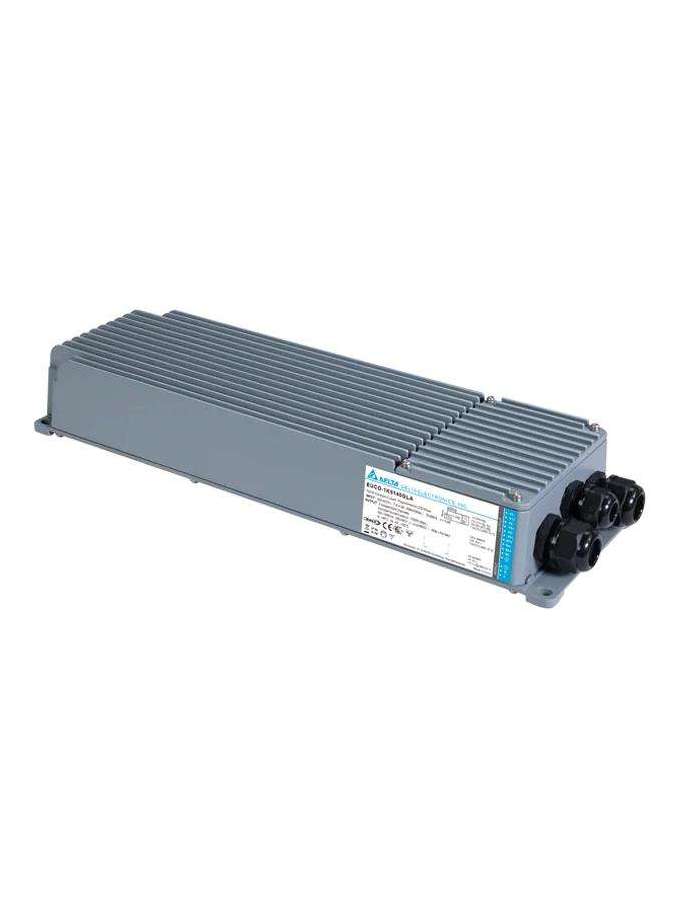

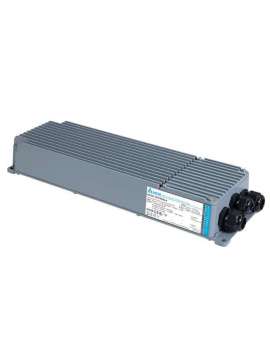

EUCO-1K5140GLA DELTA

Ficha técnica

Output Current

1.4A

Output Voltage

260-500V

Output Power

1500W

Line Regulation

±1%

Load Regulation

±3%

Nominal Input Voltage

220-400Vac

Input Voltage Range

198-440Vac

Nominal Input Frequency

50/60 Hz

Input Frequency Range

47-63Hz

Input Current

7.2A @ 220Vac, 4.1A @ 400Vac

Efficiency at 100% load

95.2% @ 220Vac, 96% @ 400Vac

Case Chassis / Cover

Aluminum case

Operating Temperature

-40°C to +50°C

Storage Temperature

-40°C to +85°C

Operating Humidity

10 to 100% RH (Non-Condensing)

Vibration (Non-Operating)

IEC 60068-2-6, Random: 5 Hz to 10 Hz (1G); 30 min per axis for all X, Y, Z direction

Overvoltage

Output voltage limited, 600Vdc

Overload / Overcurrent

Output power limited, 520W(Typ)

Short Circuit

Auto-Recovery when the fault is removed

Degree of Protection

IP66

Harmonic Current Emissions

EN61000-3-2

Cooling System

Natural Convection

Expected Cap Life Time

50,000 hours applicable for 220Vac to 400Vac(50/60Hz) @100% of load, @ ta 45°C

Immunity

EN55015

Voltage Fluctuation and Flicker

EN61000-3-3

Input Terminal

Wago 264-103, with the sign of L, N, PE

Output Terminal

Wago 264-111, with the sign of PE, NTC, V3+ V3-, V2+, V2-, V1+, V1-

Storage Humidity

10 to 100% RH (Non-Condensing)

Output Voltage Range

260-500Vdc

Max Output Voltage

600Vdc

Output Current Adjustment Range

0.5-1.4A

Max. Power

500W per channel, 1.5kW total
