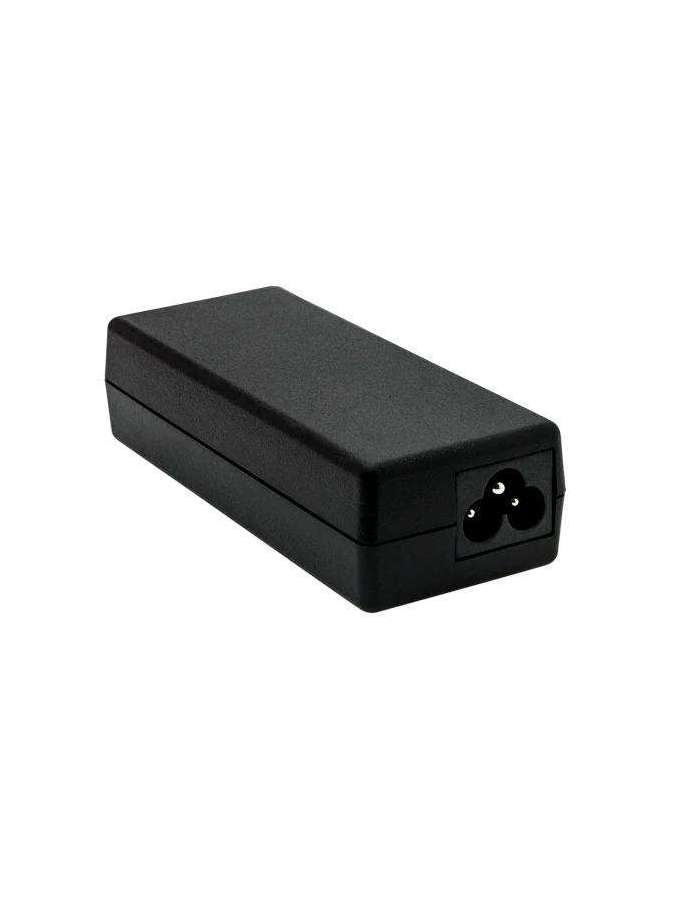

ADT-060A19AA DELTA
ADT-060A19AA
Ficha técnica
- Output Current
- 3.2A
- Output Voltage
- 19V
- Output Power
- 60.8W
- Line Regulation
- ± 1%
- Load Regulation
- ± 3.0%
- Start-up Time
- 1000ms (typ.) at 115Vac, 500ms (typ.) at 230Vac
- Hold-up Time
- 12ms (typ.) at 115Vac, 60ms (typ.) at 230Vac
- Nominal Input Voltage
- 100-240Vac
- Input Voltage Range
- 85-264Vac
- Nominal Input Frequency
- 50-60Hz
- Input Frequency Range
- 47-63Hz
- Input Current
- 1.4A max. at 115Vac, 1.0A max. at 230Vac
- Efficiency at 100% load
- 88.1% typ. at 115Vac, 90.3% typ. at 230Vac
- Case Chassis / Cover
- PC
- Storage Temperature
- -40°C to +85°C
- Operating Humidity
- 5 to 95% RH (Non-Condensing)
- Shock Test (Non-Operating)
- Half sine wave, 50G, 11ms, 1 shocks for each direction, 6 direction
- Vibration (Non-Operating)
- 5-500Hz, 2.09Grms, 20 minute for X,Y,Z axis
- Operating Altitude
- Up to 5,000 meters (up to 16,400 feet)
- Overvoltage
- 20.9-28.5V, Latch Mode
- Overload / Overcurrent
- 3.36-6.40A Auto-Recovery when the fault is removed
- Over Temperature
- Latch Mode
- Short Circuit
- Auto-Recovery when the fault is removed
- Protection Against Shock
- Class II
- CE
- In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU
- Galvanic Isolation
- Input to Output: 3000Vac
- UKCA
- In conformance with Electromagnetic Compatibility Regulations 2016 and Electrical Equipment (Safety) Regulations 2016
- Harmonic Current Emissions
- IEC 61000-3-2: Class D; GB17625.1-2003
- Rise Time
- 30mS (typ.) at 115Vac & 230Vac
- Leakage Current
- 0.1mA @ 240Vac/50Hz (max.)
- Cooling System
- Convection
- Expected Cap Life Time
- 5 years (50% load @ 25°C)
- Immunity
- EN/BS EN 55024; KN35
- Voltage Fluctuation and Flicker
- IEC 61000-3-3
- Voltage Dips
- IEC 61000-4-11
- Storage Humidity
- 5 to 95% RH (Non-Condensing)
Referencias específicas
Nuevo
Descargas
Datasheet-ADT-060A19AA.pdfNo customer reviews for the moment.
