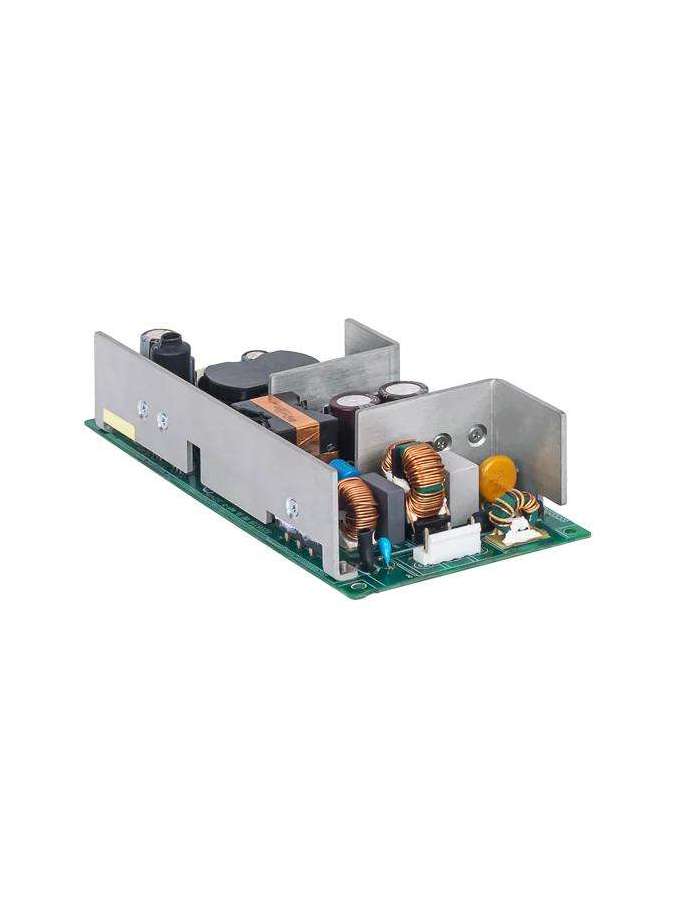

PJB-24V240WBRJ DELTA

Ficha técnica

Output Current

10A

Output Voltage

24V

Output Power

240W

Start-up Time

350ms typ. @ 100Vac (100% load)

Hold-up Time

20ms typ.@ 100Vac (100% load)

Dynamic Response (Overshoot and Undershoot O/P Voltage)

± 5% @ 0-50% load and 50-100% load (Slew Rate: 0.1A/µS)

Nominal Input Voltage

100-240Vac

Input Voltage Range

85-264Vac

Nominal Input Frequency

50-60Hz

Input Frequency Range

47-63Hz

Input Current

2.8A typ.@100Vac, 1.5A typ.@ 200Vac

Efficiency at 100% load

91% typ.@100Vac, 92.5% typ.@ 200Vac

Case Chassis / Cover

SGCC

Operating Temperature

-10°C to +70°C

Storage Temperature

-25°C to +85°C

Operating Humidity

5 to 90% RH (Non-Condensing)

Shock Test (Non-Operating)

IEC 60068-2-27, Half Sine Wave: 50G for a duration of 11ms, 3 shocks for each 3 directions

Operating Altitude

0 to 5,000 Meters (16,400 ft.) for ITE

Overvoltage

27.6-33.6V, Latch Mode

Over Temperature

Latch Mode

Short Circuit

Hiccup Mode, Non-Latching (Auto-Recovery when the fault is removed)

Protection Against Shock

Class I with Primary Earth connection

CE

In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU

UKCA

In conformance with Electromagnetic Compatibility Regulations 2016 and Electrical Equipment (Safety) Regulations 2016

Harmonic Current Emissions

IEC/EN/BS EN 61000-3-2, Class A and Class D

Cooling System

Convection / Forced Cooling

Expected Cap Life Time

10 years (115Vac, 50% load @ 40°C)

Immunity

EN/BS EN 55024

Voltage Fluctuation and Flicker

IEC/EN/BS EN 61000-3-3

Input Terminal

JST B3P5-VH (LF)(SN)

Output Voltage Adjustment Range

21.6-26.4Vdc

DC Input Voltage Range

120-370Vdc

Start-up with Capacitive Loads

8,000µF Max

Wire

AWG 22-18

Vibration (Operating)

IEC 60068-2-6, Sine Wave: 10Hz to 55Hz @ 19.6m/S? (2G peak); 10 min per cycle, 60 min per axis for all X, Y, Z direction

Pollution Degree

2

Safety Entry Low Voltage

SELV
