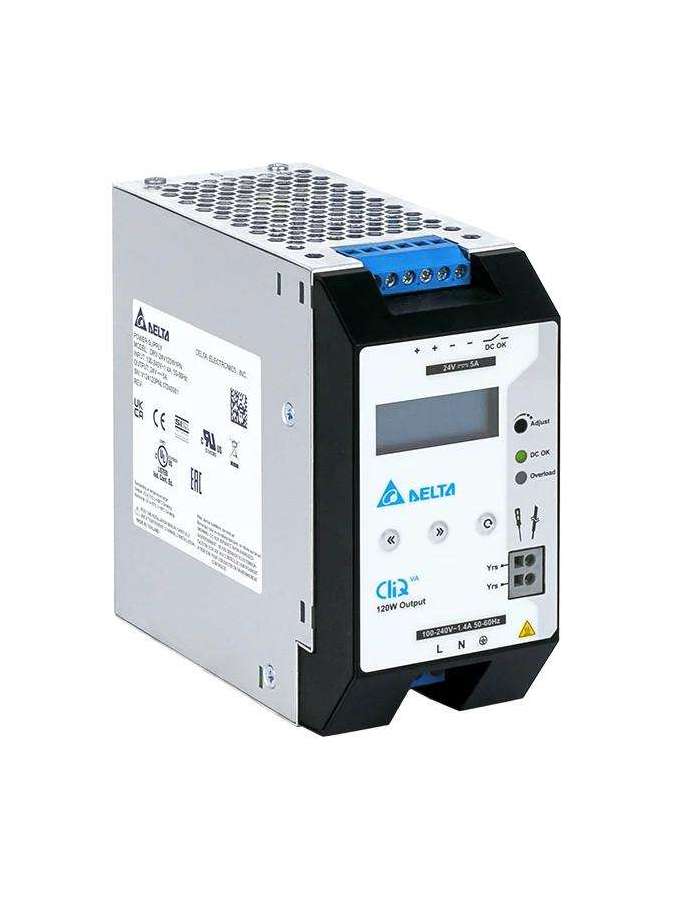

DRV-24V120W1PN DELTA

Ficha técnica

Output Current

5A

Output Voltage

24V

Output Power

120W

Line Regulation

20mV Max. (@ 85-264Vac input, 100% load)

Load Regulation

100mV Max. (@ 85-264Vac input, 0-100% load)

Start-up Time

750ms Max. @ 100Vac & 120Vac & 230Vac

Hold-up Time

70ms Typ. @ 100Vac & 120Vac & 230Vac (100% load)

Nominal Input Voltage

100-240Vac

Input Voltage Range

85-264Vac

Nominal Input Frequency

50-60Hz

Input Frequency Range

47-63Hz

Input Current

1.34A Typ. @ 100Vac, 1.11A Typ. @ 120Vac, 0.61A Typ. @ 230Vac

Efficiency at 100% load

89.67% Typ. @ 100Vac, 90.62% Typ. @ 120Vac, 91.42% Typ. @ 230Vac

Case Chassis / Cover

Aluminium and Plastic / Aluminium

Operating Temperature

-25°C to +70°C

Storage Temperature

-40°C to +85°C

Operating Humidity

5 to 95% RH (Non-Condensing)

Shock Test (Non-Operating)

IEC 60068-2-27, Half Sine Wave: 30G for a duration of 18ms; 3 times per direction, 6 times in total

Vibration (Non-Operating)

IEC 60068-2-6, Sine Wave: 10-500Hz; 3G peak; displacement of 0.35mm; 60 min per axis for all X, Y, Z directions

Operating Altitude

0 to 5,000 Meters (16,400 ft.)

Overvoltage

28.8 – 35.2V, SELV Output, Hiccup Mode, Non-Latching (Auto-Recovery)

Short Circuit

Hiccup Mode, Non-Latching (Auto-Recovery when the fault is removed)

Degree of Protection

IP20

Protection Against Shock

Class I with Primary Earth connection

CE

In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU

UKCA

In conformance with Electrical Equipment (Safety) Regulations 2016 No. 1011 and The Electromagnetic Compatibility Regulations 2016 No. 1091

Harmonic Current Emissions

IEC/EN/BS EN 61000-3-2, Class A

PARD

50mVpp Max.

Power Factor at 100% load

0.99 Typ. @ 100Vac, 0.99 Typ. @ 120Vac, 0.93 Typ. @ 230Vac

Cooling System

Convection

Immunity

Generic Standards: EN/BS EN 55024, EN/BS EN 61000-6-2

Voltage Fluctuation and Flicker

IEC/EN/BS EN 61000-3-3

Inrush Current

15.0A Max. @ 100Vac & 120Vac & 230Vac

Indicator

Green LED (DC OK) and Red LED (Overload)

Input Terminal

3 Pins (Rated 600V/35A)

Output Terminal

6 Pins (Rated 300V/28A)

Output Voltage Adjustment Range

24-28Vdc

DC Input Voltage Range

88-375Vdc

Start-up with Capacitive Loads

10,000µF Max.

Signal Terminal

2 Pins (Rated 300V/10A)

Mounting Rail

Standard TS35 DIN Rail in accordance with EN 60715

Pollution Degree

2

Industrial Control Equipment

UL/cUL listed: UL 508 and CSA C22.2 No. 107.1-01 (File No. E315355)

Safety Entry Low Voltage

SELV (IEC 60950-1)

Component Power Supply for General Use

EN/BS EN 61204-3

Nominal DC Input Voltage

110-300Vdc

Bump Test (Operating)

IEC 60068-2-29, Half Sine Wave: 10G for a duration of 11ms, 1,000 times per direction, 6,000 times in total

Electrical Equipments of Machines

EN/BS EN 60204-1 (over voltage category III)

Electrical Equipment for Use in Electrical Power Installations

IEC/EN/BS EN 62477-1 / IEC 62103

Power Boost Recovery Time

14 seconds Typ.
