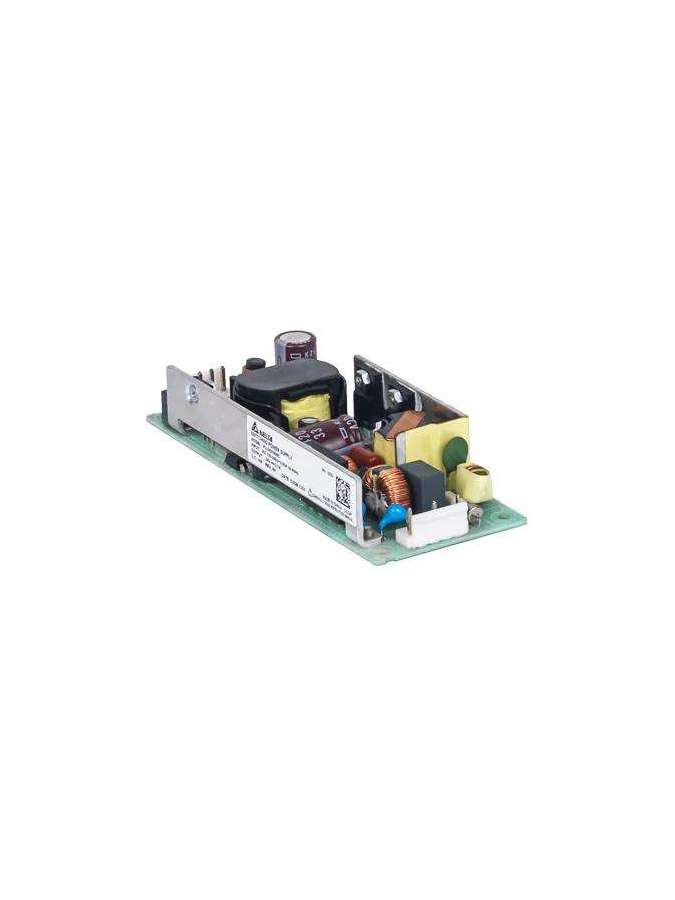

PJ-48V50WCNA DELTA

Ficha técnica

Output Current

1.1A

Output Voltage

48V

Output Power

52.8W

Start-up Time

500ms typ. @ 100Vac

Hold-up Time

20ms Typ. @ 100Vac

Dynamic Response (Overshoot and Undershoot O/P Voltage)

± 5% @ 0-50% load and 50-100% load

Nominal Input Voltage

100-240Vac

Input Voltage Range

85-264Vac

Input Frequency Range

47-63Hz

Case Chassis / Cover

SGCC

Operating Temperature

-10°C to +70°C

Storage Temperature

-25°C to +75°C

Operating Humidity

5 to 90% RH (Non-Condensing)

Shock Test (Non-Operating)

IEC60068-2-27,196.1m/S² (20G), 11ms, once along X, Y, and Z axis

Operating Altitude

0 to 5,000 Meters

Overvoltage

55.2-67.2V, Latch Mode

Over Temperature

Latch Mode

Short Circuit

Hicc-up Mode, Non-Latching (Auto-Recovery when the fault is removed)

Protection Against Shock

Class I with Primary Earth connection

CE

In conformance with EMC Directive 2004/108/EC and Low Voltage Directive 2006/95/EC

Harmonic Current Emissions

IEC/EN/BS EN 61000-3-2, Class A

Power Factor at 100% load

0.98 typ. @ 100Vac, 0.97 typ. @ 200Vac

Cooling System

Convection

Expected Cap Life Time

10 years (115Vac, 50% load @ 40°C)

Immunity

EN 55024

Voltage Fluctuation and Flicker

IEC/EN/BS EN 61000-3-3

Input Terminal

JST B3P5-VH (LF)(SN)

Output Terminal

JST B4P-VH (LF)(SN)

Output Voltage Adjustment Range

43.2-52.8Vdc

Start-up with Capacitive Loads

1,000µF Max

Wire

AWG 22-18

Vibration (Operating)

IEC60068-2-6, 10 Hz to 55 Hz @ 19.6 m/S² (2G); 3 min period, 60 min per axis for all X, Y, Z direction
