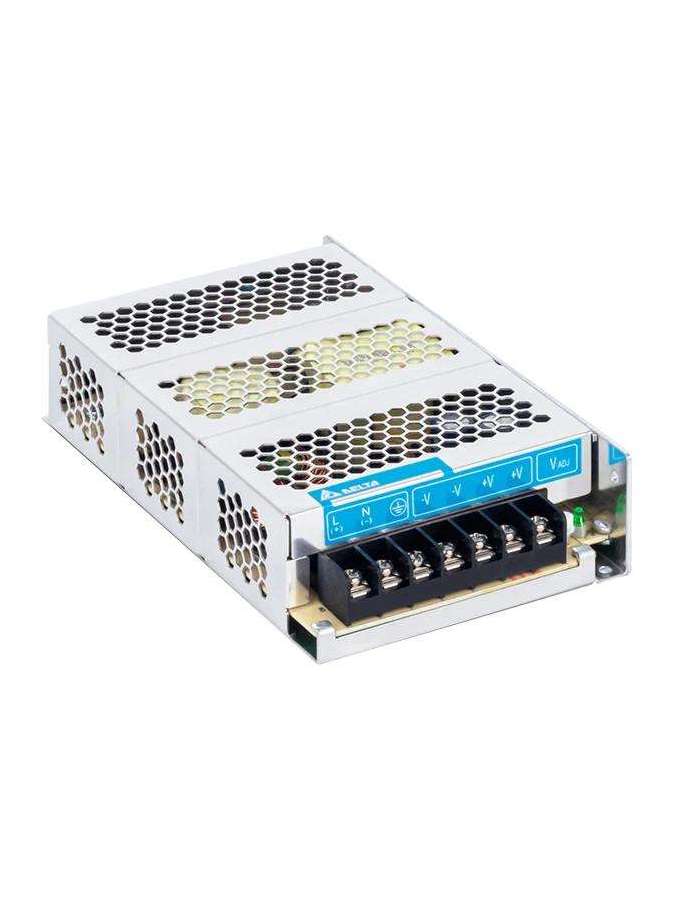

PMC-48V150W1BA DELTA

Ficha técnica

Output Current

3.125A

Output Voltage

48V

Output Power

150W

Nominal Input Voltage

100-240Vac

Input Voltage Range

85-264Vac

Nominal Input Frequency

50-60Hz

Input Frequency Range

47-63Hz

Case Chassis / Cover

Aluminium

Operating Temperature

-10°C to +70°C

Storage Temperature

-25°C to +85°C

Operating Humidity

5 to 95% RH (Non-Condensing)

Shock Test (Non-Operating)

IEC 60068-2-27, 30G (300m/S²) for a duration of 18ms, 1 time per direction, 2 times in total

Vibration (Non-Operating)

IEC 60068-2-6, 10Hz to 150Hz @ 50m/S² (5G peak); 20 min per axis for all X, Y, Z direction

Operating Altitude

0 to 5,000 Meters (16,400 ft)

Short Circuit

Hicc-up Mode, Non-Latching (Auto-Recovery when the fault is removed)

Protection Against Shock

Class I with Primary Earth connection

CE

In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU

Emission

Generic Standards: CISPR 32, EN/BS EN 55032, FCC Title 47: Class B, GB9254

Harmonic Current Emissions

IEC/EN/BS EN 61000-3-2, Class A

Cooling System

Convection

Expected Cap Life Time

10 years (115Vac & 230Vac, 50% load @ 40°C)

Immunity

Generic Standard: EN/BS EN 55024

Voltage Fluctuation and Flicker

IEC/EN/BS EN 61000-3-3

Indicator

Green LED DC OK

Output Voltage Adjustment Range

44-53Vdc

DC Input Voltage Range

125-375Vdc

Pollution Degree

2

Safety Entry Low Voltage

SELV (IEC 60950-1)

Nominal DC Input Voltage

125-250Vdc

Over Voltage Category

ll
