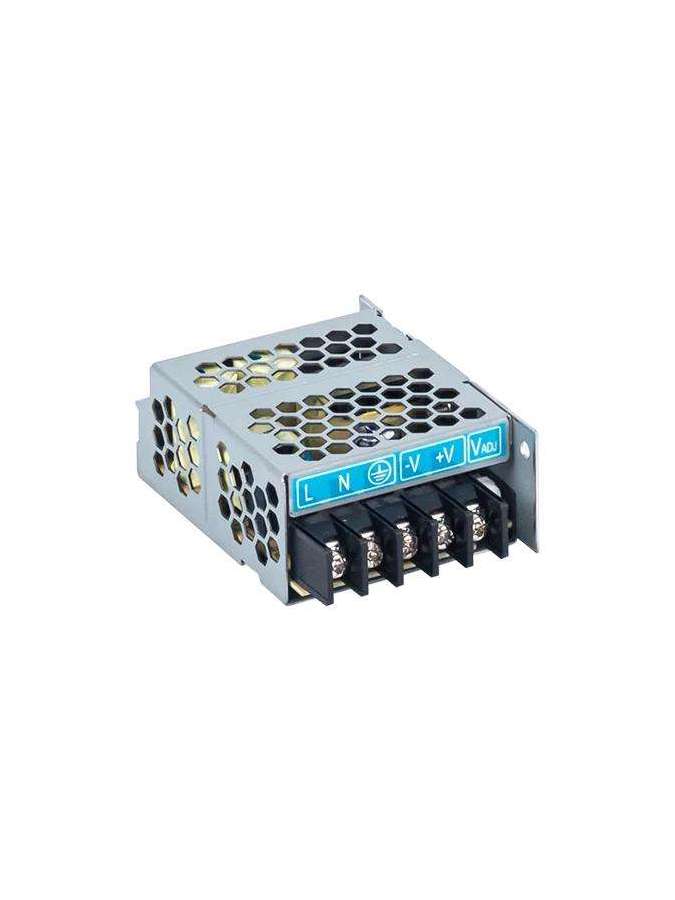

PMC-05V015W1AA DELTA

Ficha técnica

Output Current

3A

Output Voltage

5V

Output Power

15W

Dynamic Response (Overshoot and Undershoot O/P Voltage)

± 5% @ 85-264Vac input, 0-100% load (Slew Rate: 0.1A/µs, 50% duty cycle @ 5Hz to 50Hz)

Nominal Input Voltage

100-240Vac

Input Voltage Range

85-264Vac

Nominal Input Frequency

50-60Hz

Input Frequency Range

47-63Hz

Case Chassis / Cover

SECC Steel

Operating Temperature

-10°C to +70°C

Storage Temperature

-25°C to +85°C

Operating Humidity

5 to 95% RH (Non-Condensing)

Shock Test (Non-Operating)

IEC60068-2-27, 30G (300m/S²) for a duration of 18ms 1 times per direction, 6 times in total

Vibration (Non-Operating)

IEC60068-2-6, 10Hz to 150Hz @ 50m/S² (5G peak); 20 min per axis for all X, Y, Z direction

Operating Altitude

0 to 3,000 Meters (9,840 ft)

Overvoltage

6.5V +20%/-10%, SELV output, Hiccup Mode, Non-Latching (Auto-Recovery).

Short Circuit

Hiccup Mode, Non-Latching (Auto-Recovery when the fault is removed)

Protection Against Shock

Class I with Primary Earth connection

CE

In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU

Harmonic Current Emissions

IEC/EN/BS EN 61000-3-2, Class A

Power Factor at 100% load

Conform to EN61000-3-2

Cooling System

Convection

Expected Cap Life Time

10 years (115Vac & 230Vac, 50% load @ 40°C)

Immunity

Generic Standards: EN/BS EN 55024, KN 35

Voltage Fluctuation and Flicker

IEC/EN/BS EN 61000-3-3

Indicator

Green LED DC OK

Output Voltage Adjustment Range

4.75-5.5Vdc

DC Input Voltage Range

125-375Vdc

Start-up with Capacitive Loads

3,000µF Max

Wire

AWG 20-16

Pollution Degree

2

Safety Entry Low Voltage

SELV (IEC 60950-1)

Nominal DC Input Voltage

125-250Vdc

Over Voltage Category

II

Bump Test (Operating)

IEC 60068-2-29, Half Sine Wave: 10G for a duration of 11ms, 1,000 times per direction, 6,000 times in total

Input/Output Terminal

M2 x 5 Pins (Rated 300V/10A)
