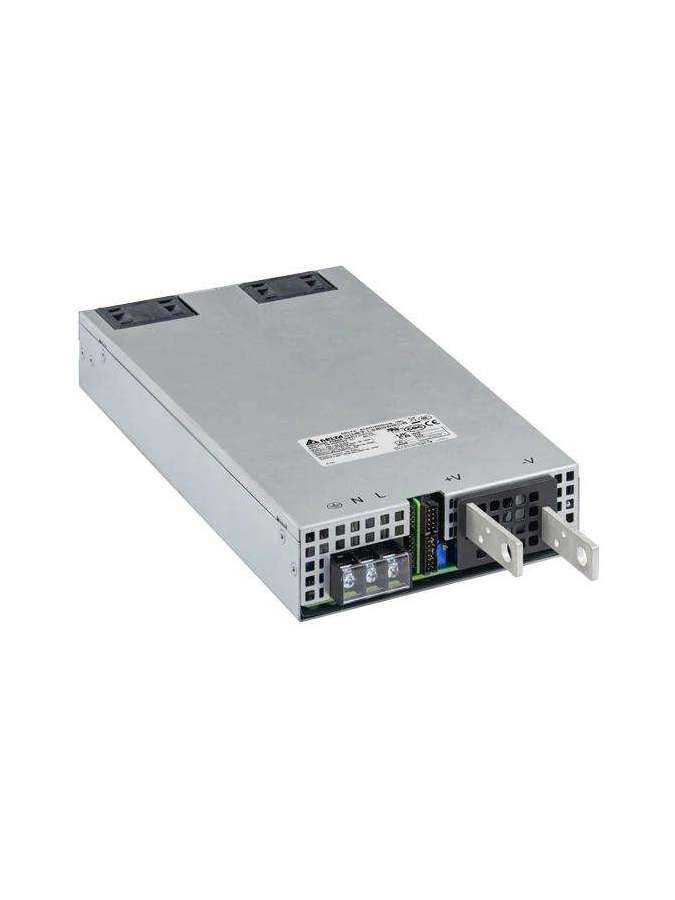

PMS-12V2K5W1BTD DELTA

Ficha técnica

Output Current

0-208.3A

Output Voltage

12V

Output Power

2500W

Line Regulation

±0.5% typ.

Load Regulation

±1% typ.

Start-up Time

2,000 ms with AC turn on

Hold-up Time

16 ms @ 2000 W load, with 230 Vac input

Nominal Input Voltage

100-240 Vac

Input Voltage Range

85-264 Vac

Nominal Input Frequency

50-60 Hz

Input Frequency Range

47-63Hz

Input Current

16 A max.

Efficiency at 100% load

90.0% typ. @ 230 Vac

Case Chassis / Cover

SGCC

Operating Temperature

-20°C to +70°C

Storage Temperature

-40°C to +85°C

Operating Humidity

5-95% RH (Non-Condensing)

Shock Test (Non-Operating)

IEC 60068-2-27, Half Sine Wave: 50 G for duration of 11 ms; 3 times per direction

Operating Altitude

0 to 5,000 Meters (0 to 16,400 ft)

Over Temperature

Auto-Recovery

Short Circuit

Hiccup Mode to Main output / Standby (Non-Latching, Auto-Recovery when the fault is removed)

Protection Against Shock

Class I with Protection Earth connection

MTBF

500K hrs based on Telcordia SR-332 (@ 230 Vac, 100% Load, 35°C)

CE

In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU

UKCA

In conformance with Electromagnetic Compatibility Regulations 2016 and Electrical Equipment (Safety) Regulations 2016

Harmonic Current Emissions

IEC/EN 61000-3-2 Meet Class A limit

Power Factor at 100% load

0.95 @ 115 V / 50 Hz, 230 V / 50 Hz

Cooling System

Force Cooling

Expected Cap Life Time

5 years, (@ 230 Vac, 100% load @ 25°C)

Voltage Fluctuation and Flicker

EN 61000-3-3

Inrush Current

40 A @ 264 Vac, cold start

Input Terminal

M3.5 x 3 Pins, CN1 / AC Input

Output Terminal

M6 x 2 Pins, CN101 / DC Output

Output Voltage Adjustment Range

12-14 Vdc

Start-up with Capacitive Loads

12,000 uF

Power Dissipation

0.75 W typ. @ remote off status

Vibration (Operating)

IEC 60068-2-6, Sine Wave: 5 Hz to 500 Hz @ 2G;10 Min per cycle,60min for X, Y, Z direction

Pollution Degree

2
