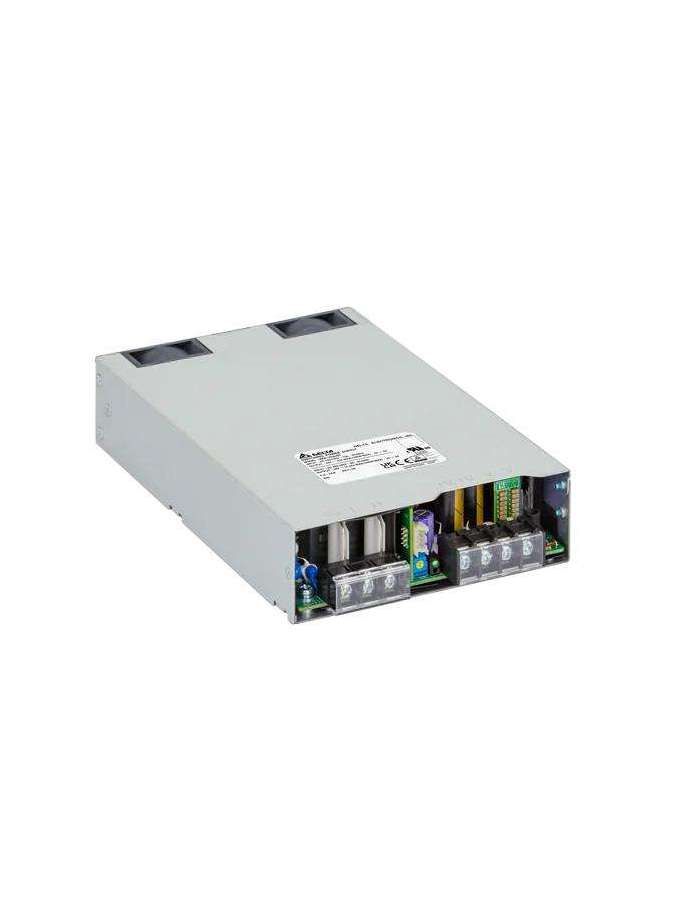

MEB-1K5A48T DELTA

Ficha técnica

Output Current

31.25A

Output Voltage

48V

Output Power

1500W

Line Regulation

1%

Load Regulation

2%

Dynamic Response (Overshoot and Undershoot O/P Voltage)

± 10% @ with 5-100% load change

Nominal Input Voltage

100-240 Vac

Input Voltage Range

90-264 Vac

Nominal Input Frequency

50-60 Hz

Input Frequency Range

47-63Hz

Input Current

15 A

Operating Temperature

Absolute Maximum/Minimum Rating. -20°C to +70°C. Linear power derate from 100% load at 50°C, to 50% load at 70°C

Storage Temperature

-40°C to +85°C

Operating Humidity

20-90% RH (Non-Condensing)

Shock Test (Non-Operating)

50 G, 11 ms, 3 shocks for each direction

Operating Altitude

Up to 5,000 meters (up to 16,400 feet or 106-54kPa)

Overvoltage

Main output 145% of rated normal voltage, Latch Mode

Over Temperature

Latch Mode for Main output

Short Circuit

Hiccup Mode for Main output and Standby (Non-Latching, Auto-Recovery)

MTBF

500K hrs based on Telecordia SR-332

CE

In conformance with EN 60601-1: 2006 + A11: 2011 + A1: 2013 + A12: 2014& EN 60601-1-2: 2015

UKCA

In conformance with Electromagnetic Compatibility Regulations 2016 and Medical Devices Regulations 2002 (UK MDR 2002)

Harmonic Current Emissions

IEC/EN/BS EN 61000-3-2 Meet Class A limit

Expected Cap Life Time

26,280 hrs

Immunity

BS EN / EN 55035, KS C 9835, EN/ BS EN 55014-2

Voltage Fluctuation and Flicker

IEC/EN/BS EN 61000-3-3

Ripple and Noise

1% pk-pk Vrated@ rated load, @25°C

Inrush Current

40 A @ 264 Vac, cold start

Indicator

Green LED

Input Terminal

M4.0 x 3 Pins (Rated 300 V/25 A)

Output Terminal

M3.5 x 4 Pins (Rated 300 V/32 A)

Start-up with Capacitive Loads

6000 uF

Wire

10 ~ 12 AWG * (2X)

Vibration (Operating)

5-500 Hz, 2 Grms, 15 minute for each three axis
