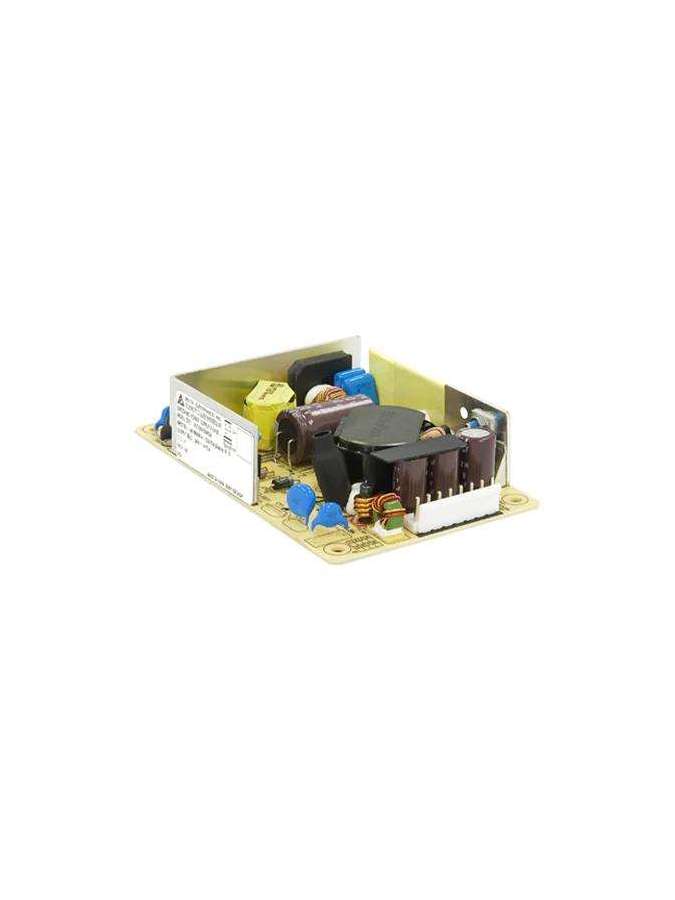

PJT-18V100WBAA DELTA

Ficha técnica

Output Current

5.55A

Output Voltage

18V

Output Power

100W

Line Regulation

± 0.5% @ 115Vac & 230Vac

Load Regulation

± 1.0% @ 115Vac & 230Vac

Start-up Time

1000ms typ. @ 115Vac & 230Vac

Hold-up Time

20ms typ. @ 115Vac & 230Vac

Nominal Input Voltage

100-240Vac

Input Voltage Range

90-264Vac

Nominal Input Frequency

50-60Hz

Input Frequency Range

47-63Hz

Input Current

1.50A typ. @ 115Vac

Efficiency at 100% load

87.5% typ. @ 115Vac & 230Vac

Operating Temperature

-10°C to +70°C

Storage Temperature

-40°C to +85°C

Operating Humidity

10 to 95% RH (Non-Condensing)

Shock Test (Non-Operating)

IEC 60068-2-27, Half Sine Wave: 50G for a duration of 11ms, 3 shocks for each 3 directions

Operating Altitude

0 to 5,000 Meters (16,400 ft.)

Over Temperature

Non-Latching (Auto-Recovery)

Short Circuit

Hiccup Mode, Non-Latching (Auto-Recovery when the fault is removed)

Protection Against Shock

Class I with Primary Earth connection

CE

In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU

UKCA

In conformance with Electromagnetic Compatibility Regulations 2016 and Electrical Equipment (Safety) Regulations 2016

Harmonic Current Emissions

IEC/EN/BS EN 61000-3-2, Class A

Leakage Current

0.1mA @ 240Vac

Cooling System

Convection

Immunity

EN/BS EN 55024

Voltage Fluctuation and Flicker

IEC/EN/BS EN 61000-3-3

Inrush Current

30A typ. @ 115Vac, 60A typ. @ 230Vac

Start-up with Capacitive Loads

3,000uF Max

Wire

AWG 22-18

Vibration (Operating)

IEC 60068-2-6, Sine Wave: 10Hz to 150Hz @ 25m/S² (2.5G); 10 min per cycle, 90 min per axis for all X, Y, Z direction

Pollution Degree

2

Over Voltage Category

II
