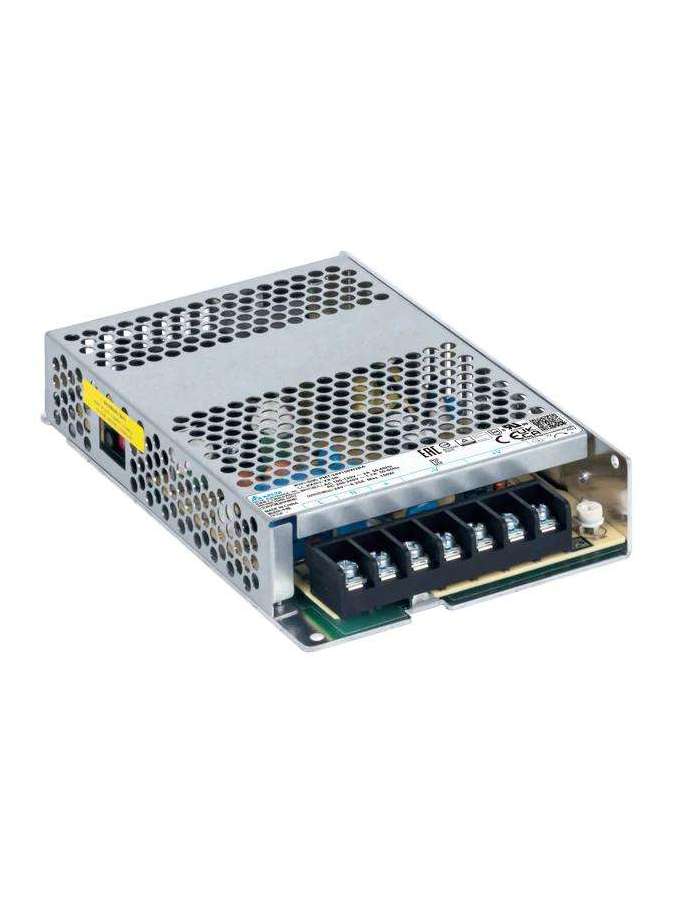

PMT-30V150W2BA DELTA

Ficha técnica

Output Current

5A

Output Voltage

30V

Output Power

150W

Line Regulation

± 0.5% typ. @ 100-132Vac, 180-264Vac (Selectable by Switch)

Load Regulation

± 0.5% typ. @ 100-132Vac, 180-264Vac (Selectable by Switch)

Start-up Time

500ms typ. @ 115Vac & 230Vac

Hold-up Time

30ms typ. @ 115Vac & 230Vac

Dynamic Response (Overshoot and Undershoot O/P Voltage)

± 10% @ 115 & 230Vac input, 10-100% load (Slew Rate: 2.5A/µS, 50% duty cycle @ 5Hz & 10KHz)

Nominal Input Voltage

100-120Vac, 200-240Vac (Selectable by Switch)

Input Voltage Range

90-132Vac, 180-264Vac (Selectable by Switch)

Nominal Input Frequency

50-60Hz

Input Frequency Range

47-63Hz

Input Current

3A typ. @ 115Vac, 1.7A typ. @ 230Vac

Efficiency at 100% load

89% typ. @ 230Vac

Case Chassis / Cover

Aluminium / SGCC

Operating Temperature

-30°C to +70°C (-40°C Cold Start)

Storage Temperature

-40°C to +85°C

Operating Humidity

20 to 90% RH (Non-Condensing)

Shock Test (Non-Operating)

IEC 60068-2-27, Half Sine Wave: 50G for a duration of 11ms, 3 shocks for each 3 directions

Vibration (Non-Operating)

IEC 60068-2-6, Random: 5Hz to 500Hz (2.09G); 20 min per axis for all X, Y, Z direction

Operating Altitude

0 to 5,000 Meters (16,400 ft.)

Overvoltage

33.0V-40.5V SELV Output, Latch Mode

Overload / Overcurrent

110-175% of rated load current, Hiccup Mode, Non-Latching (Auto-Recovery)

Over Temperature

Latch Mode

Short Circuit

Hiccup Mode, Non-Latching (Auto-Recovery when the fault is removed)

Protection Against Shock

Class I with Primary Earth connection

CE

In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU

UKCA

In conformance with Electromagnetic Compatibility Regulations 2016 and Electrical Equipment (Safety) Regulations 2016

Harmonic Current Emissions

IEC/EN/BS EN 61000-3-2, Class A

Rise Time

30ms typ. @ 115Vac & 230Vac

Cooling System

Convection

Expected Cap Life Time

10 years (230Vac, 50% load @ 40°C)

Inrush Current

60A typ. @ 230Vac

Indicator

Green LED (DC OK)

Output Voltage Adjustment Range

27.0-33.0Vdc

Start-up with Capacitive Loads

6,000µF Max

Wire

AWG 18-12

Vibration (Operating)

IEC 60068-2-6, Sine Wave: 20Hz to 500Hz (5G); 10min per cycle, 60min for each axis (X, Y,Z)

Shock Test (Operating)

IEC 60068-2-27, Half Sine Wave: 10G for a duration of 11ms, 3 shock for each 3 directions.

Pollution Degree

3

Safety Entry Low Voltage

SELV

Over Voltage Category

II (Compliance to EN 62477-1 OVC III with 2000 meters altitude)

BIS

IS 13252 (Part 1)
