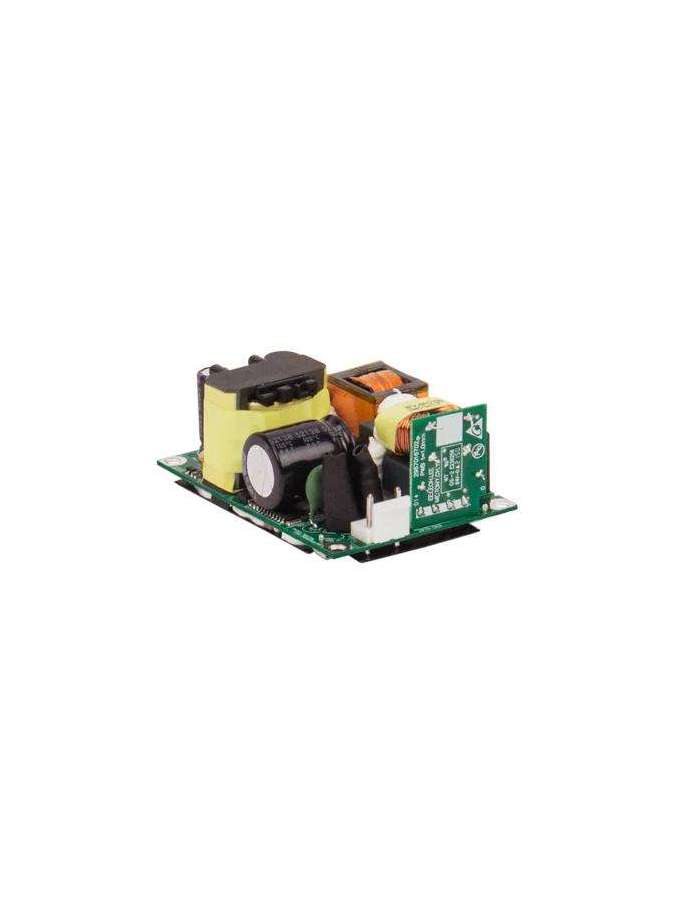

MEP-120A24J DELTA

Ficha técnica

Output Current

5A

Output Voltage

24V

Output Power

120W

Line Regulation

0.5%

Load Regulation

1%

Hold-up Time

20 ms @ 100% load, with nominal input range

Dynamic Response (Overshoot and Undershoot O/P Voltage)

± 10% @ with 5-100% load change, (50% duty @ 5 Hz & 10 KHz, 2.5 A/us slew rate )

Nominal Input Voltage

100-240 Vac

Input Voltage Range

90-264 Vac

Nominal Input Frequency

50-60 Hz

Input Frequency Range

47-63Hz

Case Chassis / Cover

Open Frame

Operating Temperature

-30°C to +70°C (-40°C cold start )

Storage Temperature

-40°C to +85°C

Operating Humidity

5-95% RH (Non-Condensing)

Shock Test (Non-Operating)

50 G, 11 ms, 3 shocks for each direction

Vibration (Non-Operating)

5-500 Hz, 2.09 Grms, 20 minute for each three axis

Operating Altitude

Up to 5,000 meters (up to 16,400 feet or 106-54 kPa) ( 4000 meters for IEC 60335-1, IEC 61558-1 )

Overvoltage

Main output 110-150% of rated normal voltage, Latch mode

Overload / Overcurrent

Main output 105-185% of rated current , Hiccup Mode

Over Temperature

Latch Mode

Short Circuit

Hiccup Mode (Non-Latching, Auto-Recovery)

Protection Against Shock

Class I & II

MTBF

700K hrs based on Telecordia SR-332

CE

In conformance with EN 60601-1: 2006 + A11: 2011 + A1: 2013 + A12: 2014& EN 60601-1-2: 2015

UKCA

In conformance with Electromagnetic Compatibility Regulations 2016 and Medical Devices Regulations 2002 Regulations 2016 (UK MDR 2002)

Harmonic Current Emissions

IEC 61000-3-2 Meet Class A limit

Rise Time

40 ms

Power Factor at 100% load

0.98 @ 115 V/60 Hz, full load

Leakage Current

0.1 mA @ NC, 1.0 mA @ SFC

Cooling System

Convection

Expected Cap Life Time

10 years

Inrush Current

60 A @ 230 Vac, cold start

Input Terminal

JST, B2P3-VH(LF)(SN) or equivalent

Output Terminal

JST : B4P-VH(LF)(SN) or equivalent

Start-up with Capacitive Loads

8000 uF

Pollution Degree

2

Over Voltage Category

II

Max. Power

150 W
