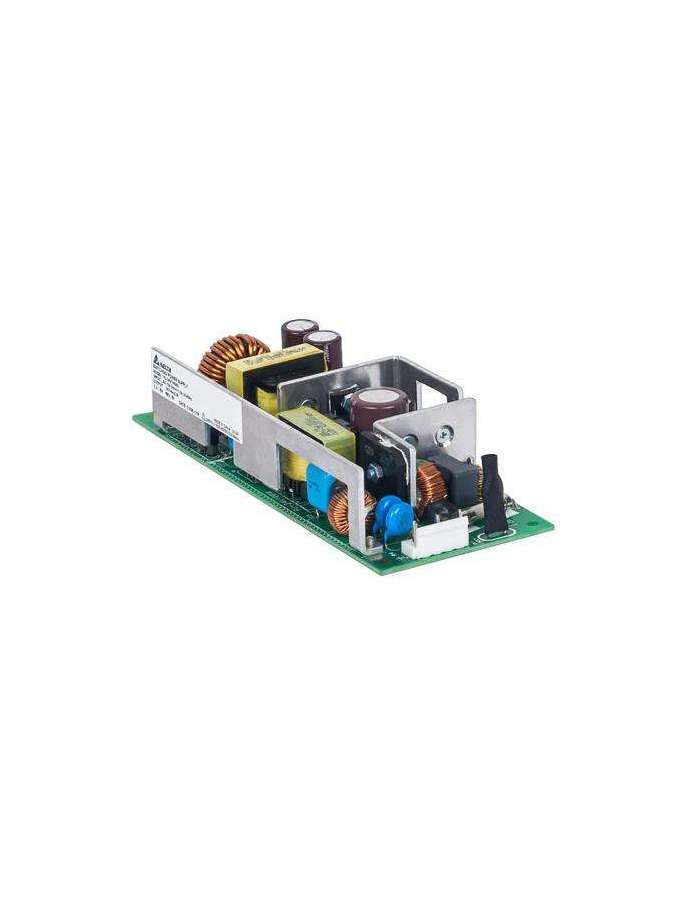

PJ-24V100WCNA DELTA

Ficha técnica

Output Current

4.3A

Output Voltage

24V

Output Power

103W

Start-up Time

500ms typ. @ 100Vac (100% load)

Hold-up Time

20ms typ. @ 100Vac (100% load)

Dynamic Response (Overshoot and Undershoot O/P Voltage)

± 5% @ 0-50% load and 50-100% load (Slew Rate: 0.1A/µS)

Nominal Input Voltage

100-240Vac

Input Voltage Range

85-264Vac

Nominal Input Frequency

50-60Hz

Input Frequency Range

47-63Hz

Input Current

1.30 A Max. @ 100 Vac, 0.65 A Max. @ 200 Vac

Case Chassis / Cover

SGCC

Operating Temperature

-10°C to +70°C

Storage Temperature

-25°C to +75°C

Operating Humidity

5 to 90% RH (Non-Condensing)

Shock Test (Non-Operating)

IEC60068-2-27,196.1m/S² (20G), 11ms, once along X, Y, and Z axis

Operating Altitude

0 to 5,000 Meters (16,400 ft)

Overvoltage

27.6-33.6V, Latch Mode

Over Temperature

Latch Mode

Short Circuit

Hicc-up Mode, Non-Latching (Auto-Recovery when the fault is removed)

Protection Against Shock

Class I with Primary Earth connection

CE

In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EC

Harmonic Current Emissions

IEC/EN/BS EN 61000-3-2, Class A

Cooling System

Convection

Expected Cap Life Time

10 years (115Vac, 50% load @ 40°C)

Voltage Fluctuation and Flicker

IEC/EN/BS EN 61000-3-3

Input Terminal

JST B3P5-VH (LF)(SN)

Output Terminal

JST B8P5-VH (LF)(SN)

Output Voltage Adjustment Range

21.6-26.4Vdc

Start-up with Capacitive Loads

8,000µF Max

Wire

AWG 22-18

Vibration (Operating)

IEC60068-2-6, 10Hz to [email protected]/S² (2G); 3min period, 60 min per axis for all X, Y, Z direction

Pollution Degree

2

Safety Entry Low Voltage

SELV (EN 60950-1)

Over Voltage Category

II
