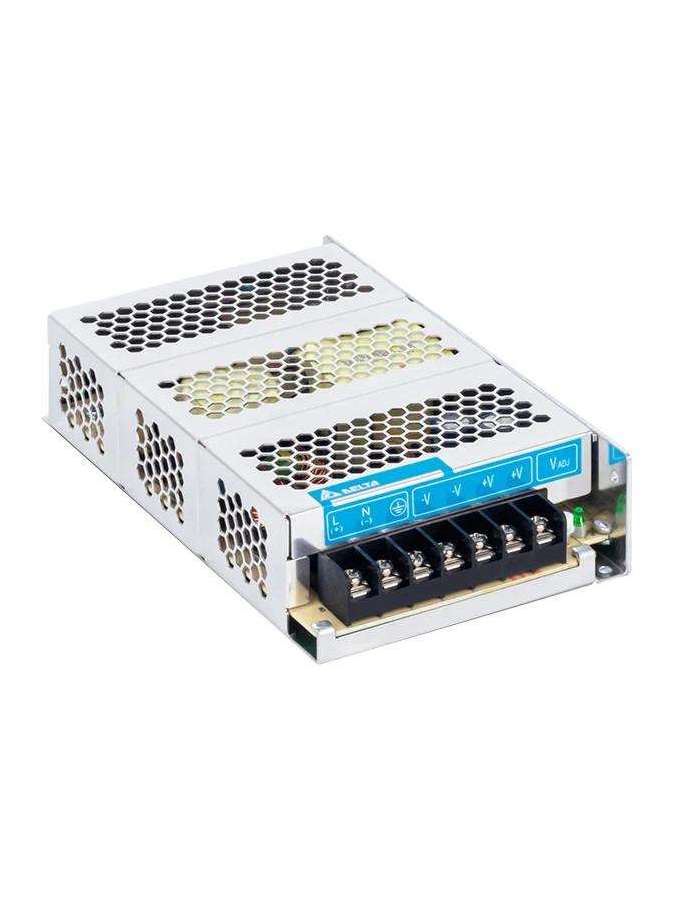

PMC-12V150W1BA DELTA

Ficha técnica

Output Current

12.5A

Output Voltage

12V

Output Power

150W

Nominal Input Voltage

100-240Vac

Input Voltage Range

85-264Vac

Nominal Input Frequency

50-60Hz

Input Frequency Range

47-63Hz

Case Chassis / Cover

Aluminium

Operating Temperature

-10°C to +70°C

Storage Temperature

-25°C to +85°C

Shock Test (Non-Operating)

IEC60068-2-27, 30G (300m/S²) for a duration of 18ms 1 times per direction, 6 times in total

Vibration (Non-Operating)

IEC60068-2-6, 10Hz to 500Hz @ 30m/S² (3G peak); 60 min per axis for all X, Y, Z direction

Operating Altitude

0 to 5,000 Meters (16,400 ft.)

Overvoltage

16V +10%/-5%, SELV output, Hiccup Mode, Non-Latching (Auto-Recovery).

Short Circuit

Hiccup Mode, Non-Latching (Auto-Recovery when the fault is removed).

Protection Against Shock

Class I with Primary Earth connection

CE

In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU

UKCA

In conformance with Electrical Equipment (Safety) Regulations 2016 No. 1011 and The Electromagnetic Compatibility Regulations 2016 No. 1091

Emission

CISPR32, EN/BS EN 55032, KN 32 FCC Title 47: Class B, GB9254

Harmonic Current Emissions

IEC/EN/BS EN 61000-3-2, Class A; GB17625.1

Cooling System

Convection

Expected Cap Life Time

10 years (115Vac & 230Vac, 50% load @ 40°C)

Immunity

Generic Standards: EN/BS EN 55024, KN 35

Voltage Fluctuation and Flicker

IEC/EN/BS EN 61000-3-3

Indicator

Green LED DC OK

Output Voltage Adjustment Range

11-14Vdc

DC Input Voltage Range

125-375Vdc

Start-up with Capacitive Loads

8,000µF Max

Pollution Degree

2

Safety Entry Low Voltage

SELV (IEC 60950-1)

Nominal DC Input Voltage

125-250Vdc

BIS

IEC 60950-1

KC

K 60950-1
