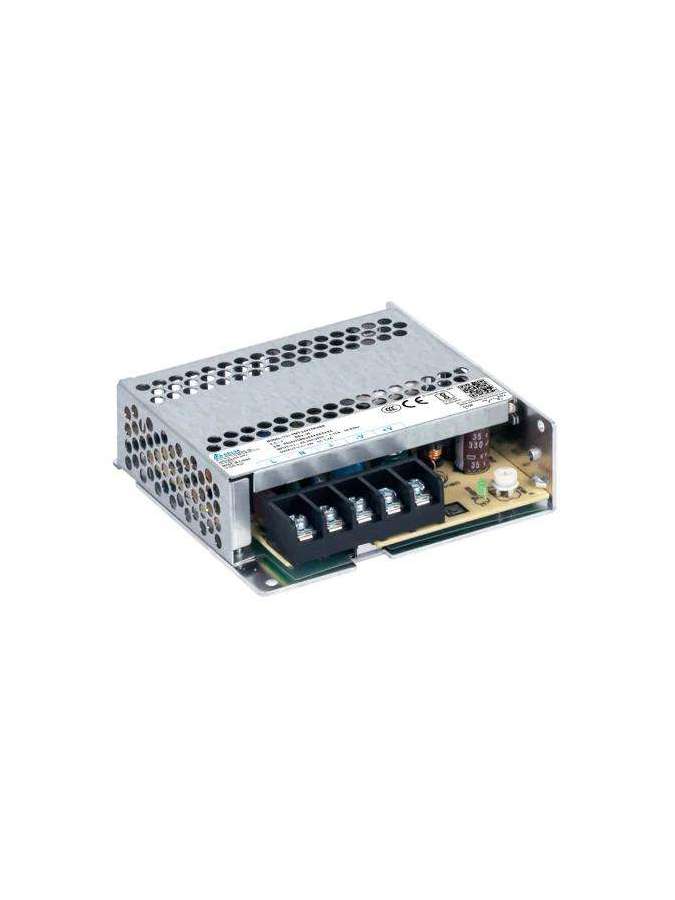

PMT-24V75W2BNJ DELTA
PMT-24V75W2BNJ
Ficha técnica
- Output Current
- 3.2A
- Output Voltage
- 24V
- Output Power
- 76.8W
- Line Regulation
- ± 0.5% (@ 230 Vac input)
- Load Regulation
- ± 0.5% (@ 230 Vac input)
- Start-up Time
- 500 ms typ. @ 230 Vac
- Hold-up Time
- 52 ms typ. @ 230 Vac
- Dynamic Response (Overshoot and Undershoot O/P Voltage)
- ± 10% @ 230 Vac input, 10-100% load (Slew Rate: 2.5 A/µS, 50% duty cycle @ 5 Hz & 10 KHz)
- Nominal Input Voltage
- 200-240 Vac
- Input Voltage Range
- 180-264 Vac
- Nominal Input Frequency
- 50-60 Hz
- Input Frequency Range
- 47-63Hz
- Input Current
- 0.85 A typ. @ 230 Vac
- Efficiency at 100% load
- 88.5% typ.
- Case Chassis / Cover
- SGCC / Aluminium
- Operating Temperature
- -40°C to +70°C
- Storage Temperature
- -40°C to +85°C
- Operating Humidity
- 20 to 90% RH (Non-Condensing)
- Shock Test (Non-Operating)
- IEC 60068-2-27, Half Sine Wave: 50G for a duration of 11 ms, 3 shocks for each 3 directions
- Vibration (Non-Operating)
- IEC 60068-2-6, Random: 5 Hz to 500 Hz (2.09G); 20 min per axis for all X, Y, Z direction
- Operating Altitude
- 0 to 5,000 Meters (16,400 ft.)
- Overload / Overcurrent
- 110-175% of rated load current, Hiccup Mode, Non-Latching (Auto-Recovery)
- Over Temperature
- Latch Mode
- Short Circuit
- Hiccup Mode, Non-Latching (Auto-Recovery when the fault is removed)
- Protection Against Shock
- Class I with Primary Earth connection
- CE
- In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU
- Harmonic Current Emissions
- IEC/EN 61000-3-2, Class A
- Rise Time
- 30 ms typ. @ 230 Vac
- Cooling System
- Convection
- Expected Cap Life Time
- 10 years (230Vac, 50% load @ 40°C)
- Immunity
- EN 55035
- Inrush Current
- 55 A typ. @ 230 Vac
- Indicator
- Green LED (DC OK)
- Input Terminal
- M3.5 x 5 Pins (Rated 300 V / 20 A)
- Output Voltage Adjustment Range
- 21.6-26.4 Vdc
- Start-up with Capacitive Loads
- 8,000µF Max
- Vibration (Operating)
- IEC 60068-2-6, Sine Wave: 20 Hz to 500 Hz (5G); 10 min per cycle, 60 min for each axis (X, Y,Z)
- Shock Test (Operating)
- IEC 60068-2-27, Half Sine Wave: 10G for a duration of 11 ms, 3 shock for each 3 directions
- Pollution Degree
- 3
- Safety Entry Low Voltage
- SELV
- Over Voltage Category
- II (Compliance to EN 62477-1 OVC III with 2000 meters altitude)
