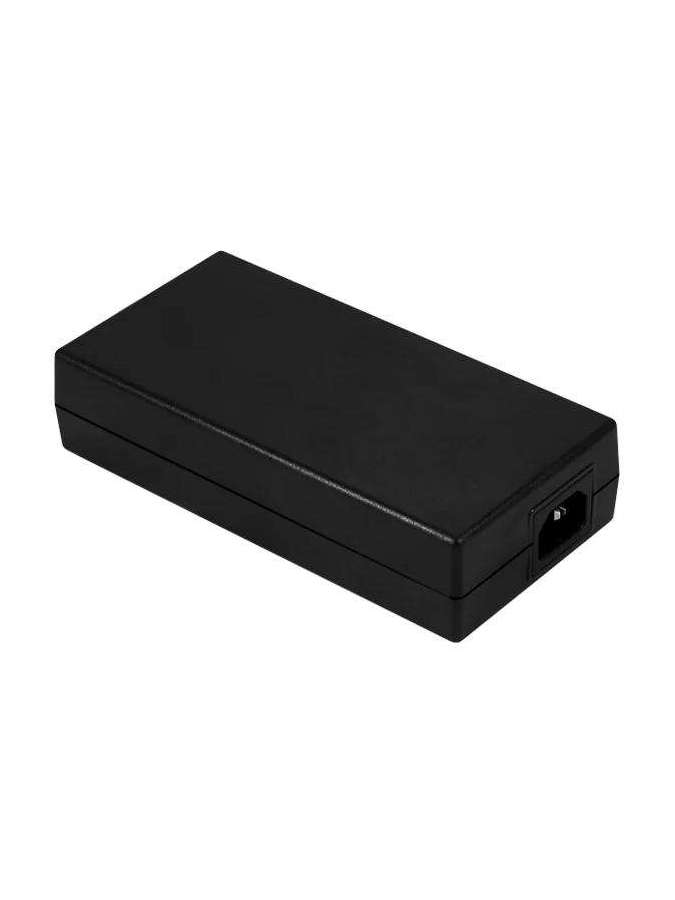

MDS-150AAS19 FA DELTA
MDS-150AAS19 FA
Ficha técnica
- Output Current
- 7.89A
- Output Voltage
- 19V
- Output Power
- 150W
- Line Regulation
- ± 0.5%
- Load Regulation
- ± 5%
- Start-up Time
- 3000ms @ 115Vac
- Hold-up Time
- 20ms @ 115Vac
- Dynamic Response (Overshoot and Undershoot O/P Voltage)
- ± 5% @ 50-100% load
- Nominal Input Voltage
- 100-240Vac
- Input Voltage Range
- 90-264Vac
- Nominal Input Frequency
- 50-60Hz
- Input Frequency Range
- 47-63Hz
- Efficiency at 100% load
- 90.5% (typ.)
- Case Chassis / Cover
- PC
- Operating Temperature
- 0°C to +40°C
- Storage Temperature
- -40°C to +85°C
- Operating Humidity
- 10-90% RH (Non-Condensing)
- Shock Test (Non-Operating)
- 50G, 11ms, 3 shocks for each direction
- Vibration (Non-Operating)
- 5-500Hz, 2.09Grms, 20 minute for each three axis
- Overvoltage
- 150%, Latch Mode
- Overload / Overcurrent
- 180% of rated load current, Hiccup Mode, (Non-Latching, Auto-Recovery)
- Over Temperature
- Hiccup Mode, (Non-Latching, Auto-Recovery)
- Short Circuit
- Hiccup Mode, (Non-Latching, Auto-Recovery)
- Degree of Protection
- IP40
- Protection Against Shock
- Class II with functional earth
- MTBF
- 1185 kHrs based on Telecordia SR-332
- Electrical Safety
- IEC60950-1 (Ed.2,2005), IEC62368-1, GB4943.1-2011, GB9254-2008, GB17625.1-2003
- Galvanic Isolation
- Input to Output: 4000 Vac
- UKCA
- In conformance with Electrical Equipment (Safety) Regulations 2016, and Electromagnetic Compatibility Regulations 2016, Medical Devices Regulations 2002(UK MDR 2002)
- ITE Safety
- IEC 60950-1, IEC 62368-1, GB 4943.1, GB/T 9254.1, GB 17625.1
- Emission
- EN/BS EN 55011, EN/BS EN 55032, FCC Title 47: Class B
- Harmonic Current Emissions
- IEC61000-3-2 Meet Class A & D limit
- Voltage Fluctuation and Flicker
- IEC61000-3-3
- Ripple and Noise
- 190 mV pk-pk @ Full load
