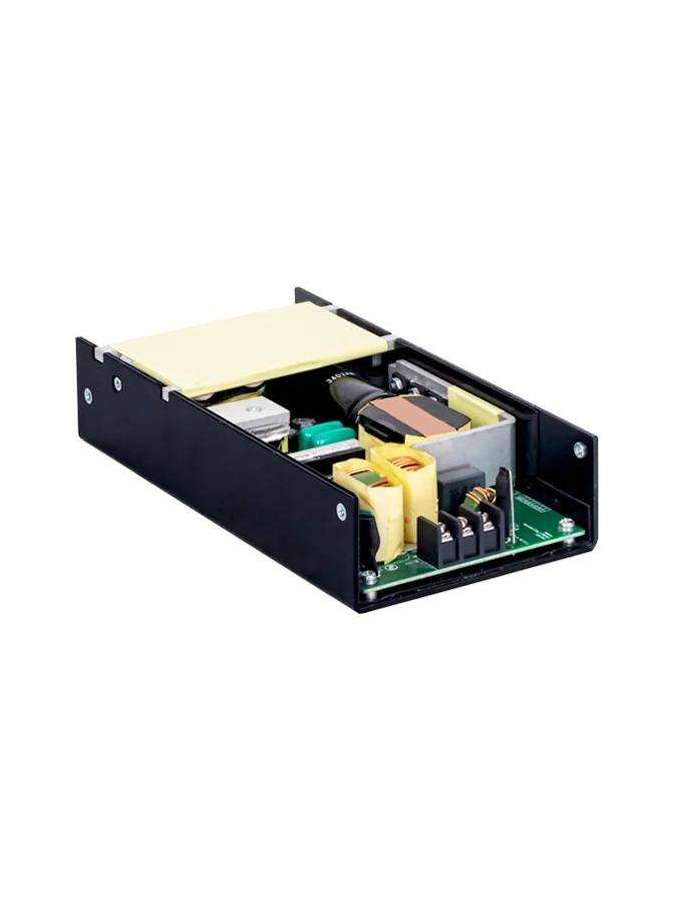

MDS-400AUS24 BA DELTA
MDS-400AUS24 BA
Ficha técnica
- Output Current
- 16.67A
- Output Voltage
- 24V
- Output Power
- 400W
- Line Regulation
- ±0.5%
- Hold-up Time
- 12ms @ 115Vac
- Nominal Input Voltage
- 100-240Vac
- Input Voltage Range
- 90-264Vac
- Nominal Input Frequency
- 50-60Hz
- Input Frequency Range
- 47-63Hz
- Efficiency at 100% load
- 91.94% (typ.)
- Case Chassis / Cover
- AL1100F (with black electro coating)
- Operating Temperature
- -10°C to +70°C
- Storage Temperature
- -40°C to +85°C
- Operating Humidity
- 5-95% RH (Non-Condensing)
- Shock Test (Non-Operating)
- 50G 11ms, 3 shocks for each direction
- Vibration (Non-Operating)
- 5-500Hz, 2.09Grms, 20minutes for each three axis
- Operating Altitude
- Up to 3,000 meters (up to 9,842 feet or 106-70kPa)
- Overvoltage
- 150%, Latch Mode
- Overload / Overcurrent
- 130% of rated load current, Hiccup Mode, (Non-Latching, Auto-Recovery)
- Over Temperature
- Latch Mode
- Short Circuit
- Hiccup Mode, (Non-Latching, Auto-Recovery)
- Protection Against Shock
- Class I with PE connection
- MTBF
- 2 Million Hrs based on Telcordia SR-332
- UKCA
- In conformance with Electrical Equipment (Safety) Regulations 2016 and Electromagnetic Compatibility Regulations 2016, Medical Devices Regulations 2002 (UK MDR 2002)
- Emission
- EN/BS EN 55011, EN/BS EN 55032, FCC Title 47:Class B
- Harmonic Current Emissions
- IEC 61000-3-2: Meet Class D limit
- Voltage Fluctuation and Flicker
- IEC 61000-3-3
- Ripple and Noise
- ±1% pk-pk @ Full load
- Input Terminal
- DECA: T33-BM1103A301
- Output Terminal
- DECA: T33-BM1104A301
- Input Power (Standby Mode)
- 1.2W
- Material and Parts
- RoHS Directive 2011/65/EU Compliant
Referencias específicas
Nuevo
Descargas
Datasheet-MDS-400AUS24 BA.pdfNo customer reviews for the moment.
