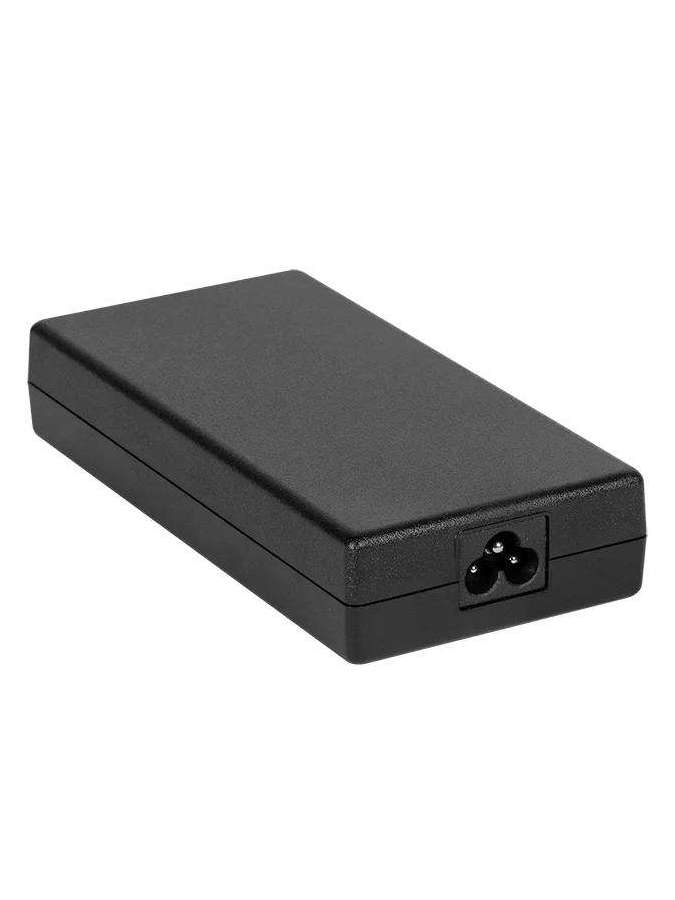

ADT-150B12AA DELTA
ADT-150B12AA
Ficha técnica
- Output Current
- 12.5A
- Output Voltage
- 12V
- Output Power
- 150W
- Line Regulation
- ± 0.5%
- Load Regulation
- ± 4.5%
- Hold-up Time
- 40ms @ 115Vac, full load
- Nominal Input Voltage
- 100-240Vac
- Input Voltage Range
- 90-264Vac
- Nominal Input Frequency
- 50-60Hz
- Input Frequency Range
- 47-63Hz
- Case Chassis / Cover
- PC
- Operating Temperature
- -10°C to +60°C
- Storage Temperature
- -40°C to +85°C
- Operating Humidity
- 5%-95% RH (non-condensing)
- Shock Test (Non-Operating)
- 50G, 11ms, 1 shock for each direction
- Vibration (Non-Operating)
- 5-500Hz, 2.09Grms, 20mins, one cycle for each three axis
- Operating Altitude
- 5,000 meters (16400 feet)
- Overvoltage
- 18V, Latch mode
- Overload / Overcurrent
- 120-180% , Latch
- Over Temperature
- Latch Mode
- Short Circuit
- Latch Mode
- Protection Against Shock
- Class I
- Galvanic Isolation
- I/P to O/P: 3000Vac
- UKCA
- In conformance with Electromagnetic Compatibility Regulations 2016 and Electrical Equipment (Safety) Regulations 2016
- Harmonic Current Emissions
- IEC 61000-3-2: Class D ; GB17625.1-2003
- Rise Time
- 40ms @ nominal input, full load
- Power Factor at 100% load
- 0.9 min. @ 230Vac
- Leakage Current
- 0.1 mA @ 240 Vac / 50 Hz
- Cooling System
- Convection
- Expected Cap Life Time
- 5 years @ 100Vac,50% load, 25°C
- Immunity
- EN/BS EN 55024; KN35
- Voltage Fluctuation and Flicker
- IEC 61000-3-3
- Inrush Current
- No damage
Referencias específicas
Nuevo
Descargas
Datasheet-ADT-150B12AA.pdfNo customer reviews for the moment.
