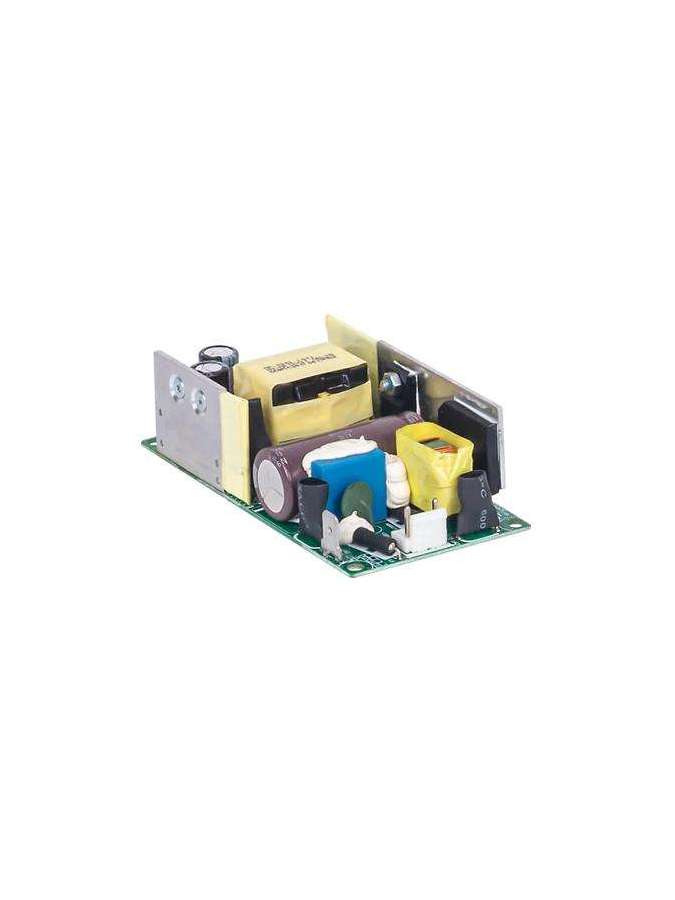

MDS-100BPS15 B DELTA

Ficha técnica

Output Current

6.7A

Output Voltage

15V

Output Power

100W

Line Regulation

±0.5% (max.)

Load Regulation

±1% (max.)

Start-up Time

3000ms @ 115Vac (max.)

Hold-up Time

10ms @ 115Vac (min.)

Dynamic Response (Overshoot and Undershoot O/P Voltage)

± 3% @ 50-100% load

Nominal Input Voltage

100-240Vac

Input Voltage Range

90-264Vac

Nominal Input Frequency

50-60Hz

Input Frequency Range

47-63Hz

Input Current

2.5A @ 100Vac, 1.25A @ 240Vac (max.)

Efficiency at 100% load

88.2% (typ.)

Operating Temperature

-10°C to +70°C

Storage Temperature

-40°C to +85°C

Operating Humidity

10-95% RH (Non-Condensing)

Shock Test (Non-Operating)

50G, 11ms, 3 shocks for each direction

Vibration (Non-Operating)

5-500Hz, 2.09Grms, 20 minute for each three axis

Operating Altitude

-400 to 5,000 meters (-1310 to 16,400 feet or 106 to 54k Pa)

Overvoltage

150%, Latch Mode (max.)

Overload / Overcurrent

170% of rated load current, Hiccup Mode, (Non-Latching, Auto-Recovery) (max.)

Over Temperature

Hiccup Mode, (Non-Latching, Auto-Recovery)

Short Circuit

Hiccup Mode, (Non-Latching, Auto-Recovery)

Protection Against Shock

Class I with Primary Earth connection

MTBF

1 Million Hrs based on Telcordia SR-332

UKCA

In conformance with Electrical Equipment (Safety) Regulations 2016 and Electromagnetic Compatibility Regulations 2016, Medical Devices Regulations 2002 (UK MDR 2002)

Emission

EN/BS EN 55011, EN/BS EN 55032, FCC Title 47: Class B

Harmonic Current Emissions

IEC 61000-3-2: Meet Class A limit

Leakage Current

0.1mA @ 264Vac Normal Condition, 0.3mA @ 264Vac Single Fault Condition

Voltage Fluctuation and Flicker

IEC 61000-3-3

Ripple and Noise

51.2mV pk-pk @ Full load (typ.)

Inrush Current

30A @ 115Vac, 60A @ 230Vac (typ.)

Input Terminal

JST 2P

Output Terminal

JST 4P
