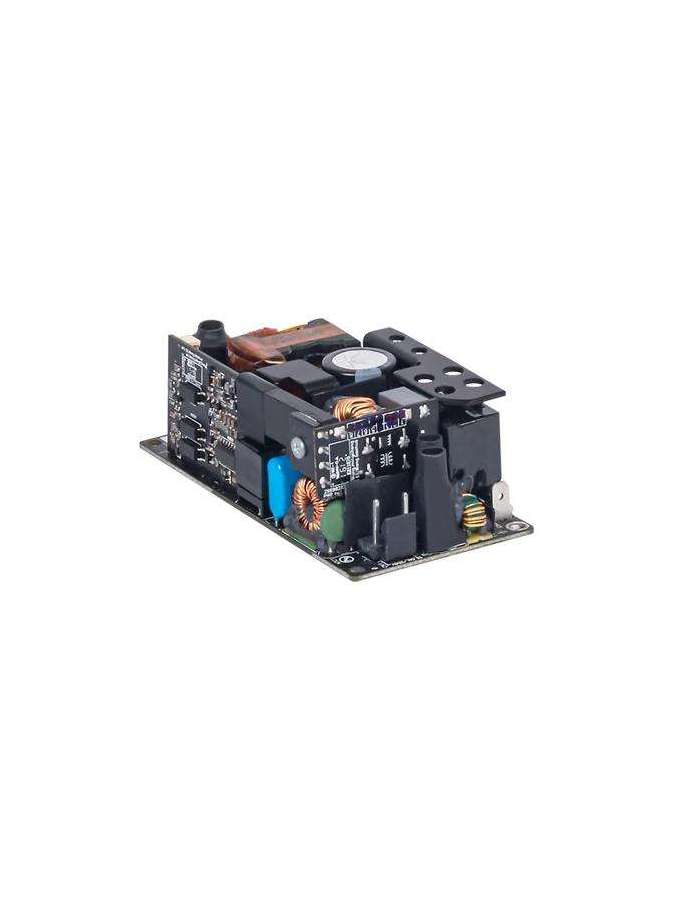

MDS-200APB12 AA DELTA
MDS-200APB12 AA
Ficha técnica
- Output Current
- 16.67A
- Output Voltage
- 12V
- Output Power
- 200W
- Line Regulation
- ±0.5%
- Load Regulation
- ±1%
- Start-up Time
- 2000ms @ 115VacI
- Hold-up Time
- 12ms @ 115Vac, tested with 130W load
- Dynamic Response (Overshoot and Undershoot O/P Voltage)
- ±5% @ 50-100% load
- Nominal Input Voltage
- 100-240Vac
- Input Voltage Range
- 90-264Vac
- Nominal Input Frequency
- 50-60Hz
- Input Frequency Range
- 47-63Hz
- Input Current
- 2.5A
- Case Chassis / Cover
- NA
- Storage Temperature
- -40°C to +85°C
- Operating Humidity
- 5-95% RH (Non-Condensing)
- Shock Test (Non-Operating)
- 50G, 11ms, 3 shocks for each direction
- Overvoltage
- 125% of rated voltage, Latch Mode
- Over Temperature
- Latch Mode
- Short Circuit
- Hiccup Mode, (Non-Latching, Auto-Recovery)
- MTBF
- 800 kHrs based on Telcordia SR-332
- UKCA
- In conformance with Electrical Equipment (Safety) Regulations 2016 and Electromagnetic Compatibility Regulations 2016, Medical Devices Regulations 2002 (UK MDR 2002)
- Emission
- EN/BS EN 55011, EN/BS EN 55032, FCC Title 47: Class B
- Harmonic Current Emissions
- IEC 61000-3-2, Meet Class D limit
- Power Factor at 100% load
- 0.95 @ 115V/50Hz, 230V/50Hz, full load
- Voltage Fluctuation and Flicker
- IEC 61000-3-3
- Input Power (Standby Mode)
- 0.5W @ 115Vac/60Hz, 230Vac/50Hz
