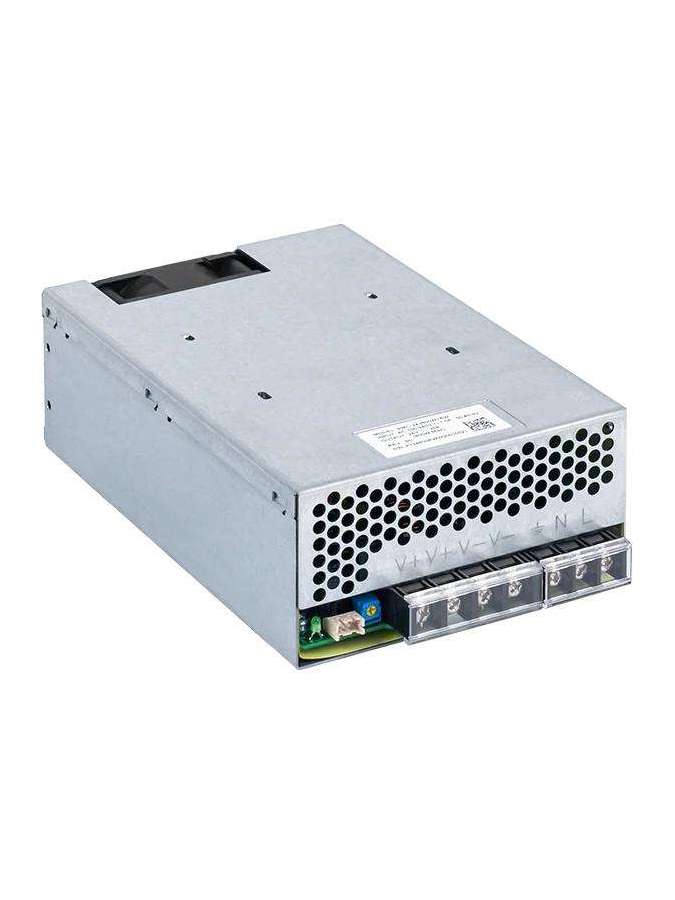

PMC-24V600W1RW DELTA
PMC-24V600W1RW
Ficha técnica
- Output Current
- 25A
- Output Voltage
- 24V
- Output Power
- 600W
- Line Regulation
- ± 0.4% typ. (@ 115 & 240Vac input, 100% load)
- Load Regulation
- ± 0.5% typ. (@115 & 240Vac input, 100% load)
- Start-up Time
- 500ms typ. @ 230Vac (100% load)
- Hold-up Time
- 20ms typ. @ 115Vac & 230Vac (100% load)
- Dynamic Response (Overshoot and Undershoot O/P Voltage)
- ± 5% @ 50-100% load
- Nominal Input Voltage
- 100-240Vac
- Input Voltage Range
- 85-264Vac
- Nominal Input Frequency
- 50-60Hz
- Input Frequency Range
- 47-63Hz
- Input Current
- 6A typ. @ 115Vac, 3A typ. @ 230Vac
- Efficiency at 100% load
- 90.0% typ. @ 115Vac, 92.0% typ. @ 230Vac
- Case Chassis / Cover
- SGCC
- Operating Temperature
- -20°C to +70°C
- Storage Temperature
- -30°C to +75°C
- Operating Humidity
- 20-95% RH
- Shock Test (Non-Operating)
- IEC60068-2-27, Half Sine Wave: 50G for a duration of 11ms, 3 shocks for each 3 directions
- Operating Altitude
- 5,000 Meters
- Overvoltage
- 27.6-33.6V, SELV Output, Latch-off Mode
- Overload / Overcurrent
- 105~160%; Constant current limit with automatic recovery
- Over Temperature
- Latch-off Mode
- Short Circuit
- Hiccup Mode, Non-Latching (Auto-Recovery when the fault is removed)
- Protection Against Shock
- Class I with PE connection
- CE
- In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU
- UKCA
- In conformance with Electromagnetic Compatibility Regulations 2016 and Electrical Equipment (Safety) Regulations 2016
- Harmonic Current Emissions
- IEC/EN/BS EN 61000-3-2 Class A
- Power Factor at 100% load
- 0.99 typ. @ 100Vac, 0.97 typ. @ 200Vac
- Cooling System
- Built-in Fan
- Expected Cap Life Time
- 10 years (115 Vac, 50% load @ 40°C)
- Voltage Fluctuation and Flicker
- IEC/EN/BS EN 61000-3-3
- Inrush Current
- 40 A typ. @ 230 Vac
- Input Terminal
- M3.5 x 3 Pins (Rated 300Vac/20A)
- Output Terminal
- M4 x 4 Pins (Rated 300Vac/25A)
- Output Voltage Adjustment Range
- 21.6-27.6Vdc
- Start-up with Capacitive Loads
- 10,000µF Max
- Shock Test (Operating)
- IEC60068-2-27, Half Sine Wave: 10G for a duration of 11ms, 3 shocks for each 3 directions
- Pollution Degree
- 2
- Safety Entry Low Voltage
- SELV
- Over Voltage Category
- II (Compliance to EN 62477-1 OVC III with 2000 meters altitude)
Referencias específicas
Nuevo
Descargas
Datasheet-PMC-24V600W1RW.pdfNo customer reviews for the moment.
