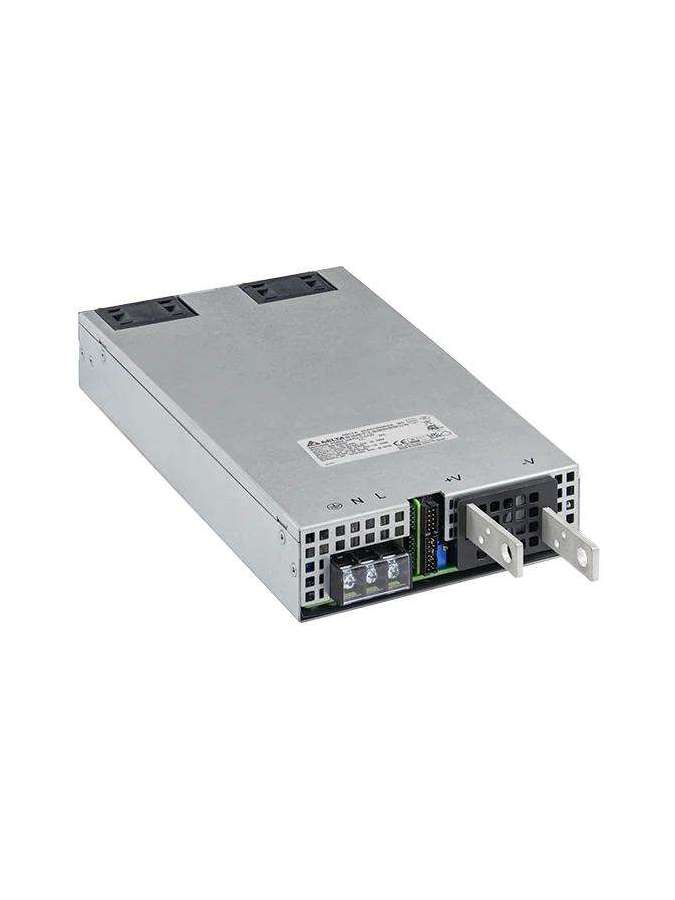

MEB-2K5A48T RAA DELTA

Ficha técnica

Output Current

52.1A

Output Voltage

48V

Output Power

2500W

Start-up Time

1200 ms typ. @ 1500 W load, 110 Vac

Dynamic Response (Overshoot and Undershoot O/P Voltage)

± 10% @ with 50-100% load change

Nominal Input Voltage

100-240 Vac

Input Voltage Range

85-264 Vac

Nominal Input Frequency

50-60 Hz

Input Frequency Range

47-63Hz

Operating Temperature

Absolute Maximum/Minimum Rating. -20°C to +70°C. Linear power derate from 100% load at 50°C, to 50% load at 70°C

Storage Temperature

-40°C to +85°C

Operating Humidity

5-95% RH (Non-Condensing)

Shock Test (Non-Operating)

50G, 11 ms, 3 shocks for each direction

Operating Altitude

Up to 5,000 meters (up to 16,400 feet or 106-54kPa)

Over Temperature

Hiccup Mode (Non-Latching, Auto-Recovery)

Short Circuit

Hiccup Mode for Main output and Standby (Non-Latching, Auto-Recovery)

MTBF

500 Khrs based on Telecordia SR-332 at 230 Vac, 2,500 W, 35 °C

Electrical Safety

CB scheme: IEC 60950-1 CB report, IEC 62368-1 CB report

UKCA

In conformance with Electromagnetic Compatibility Regulations 2016 and Medical Devices Regulations 2002 (UK MDR 2002)

Emission

EN55011/ EN55032, FCC Title 47: Class B

Harmonic Current Emissions

IEC 61000-3-2 Meet Class A limit

Expected Cap Life Time

26,280 hrs at 230 Vac, 2,500 W, 25°C

Immunity

IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8

Voltage Fluctuation and Flicker

IEC 61000-3-3

Voltage Dips

IEC 61000-4-11, IEC 60601-1-2

Ripple and Noise

1% pk-pk Vrated @ rated load

Start-up with Capacitive Loads

6000 uF

Vibration (Operating)

5-500 Hz, 2.09 Grms, 20 minutes for each three axis

Pollution Degree

3 (for IEC 60335-1)
