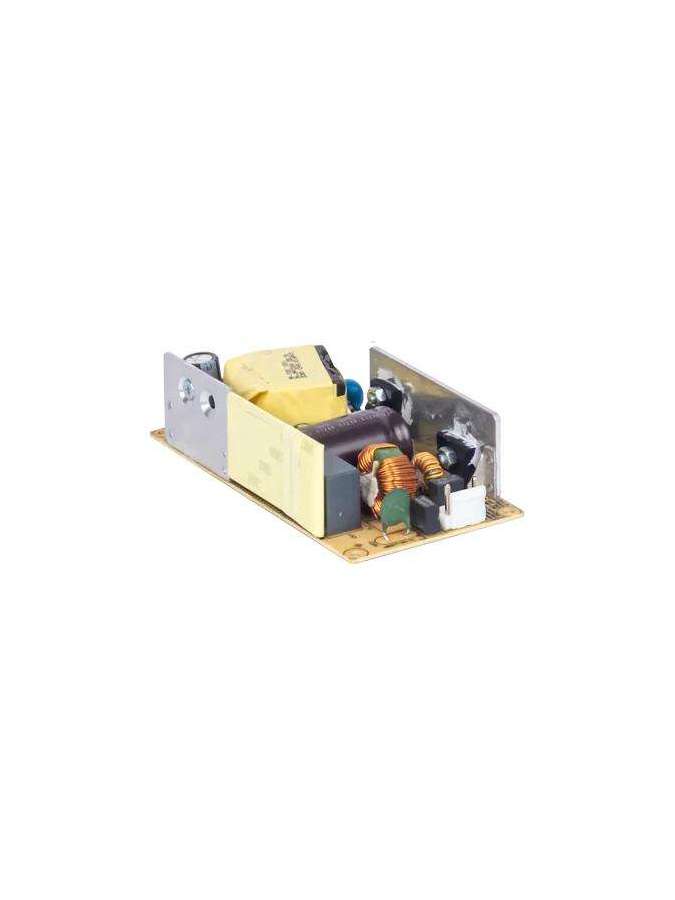

MDS-065APS12 B DELTA

Ficha técnica

Output Current

5.42A

Output Voltage

12V

Output Power

65W

Line Regulation

± 0.5%

Load Regulation

± 1%

Start-up Time

3000ms @ 115Vac

Dynamic Response (Overshoot and Undershoot O/P Voltage)

± 5% @ 50-100% load

Nominal Input Voltage

100-240Vac

Input Voltage Range

90-264Vac

Nominal Input Frequency

50-60Hz

Input Frequency Range

47-63Hz

Efficiency at 100% load

87.5% (typ.)

Operating Temperature

-10°C to +70°C

Storage Temperature

-40°C to +85°C

Operating Humidity

5-95% RH (Non-Condensing)

Shock Test (Non-Operating)

50G 11ms, 3 shocks for each direction

Vibration (Non-Operating)

5-500Hz, 2.09Grms, 20 minutes for each three axis

Operating Altitude

Up to 3,000 meters (up to 9,842 feet or 106-70kPa)

Overvoltage

150%, Latch Mode

Overload / Overcurrent

150%~210% of rated load current, Hiccup Mode, (Non-Latching, Auto-Recovery)

Over Temperature

Hiccup Mode, (Non-Latching, Auto-Recovery)

Short Circuit

Hiccup Mode, (Non-Latching, Auto-Recovery)

Protection Against Shock

Class I with PE* connection

MTBF

2.5 Million Hours based on Telecordia SR-332

Emission

EN/BS EN 55011, EN/BS EN 55032, FCC Title 47:Class B

Harmonic Current Emissions

IEC61000-3-2: Meet Class A limit

Leakage Current

0.1mA @ 264Vac Normal Condition, 0.3mA @ 264Vac Single Fault Condition

Voltage Fluctuation and Flicker

IEC61000-3-3

Ripple and Noise

21.6mV pk-pk @ Full load (typ.)

Input Terminal

JST 2P

Output Terminal

JST 4P
