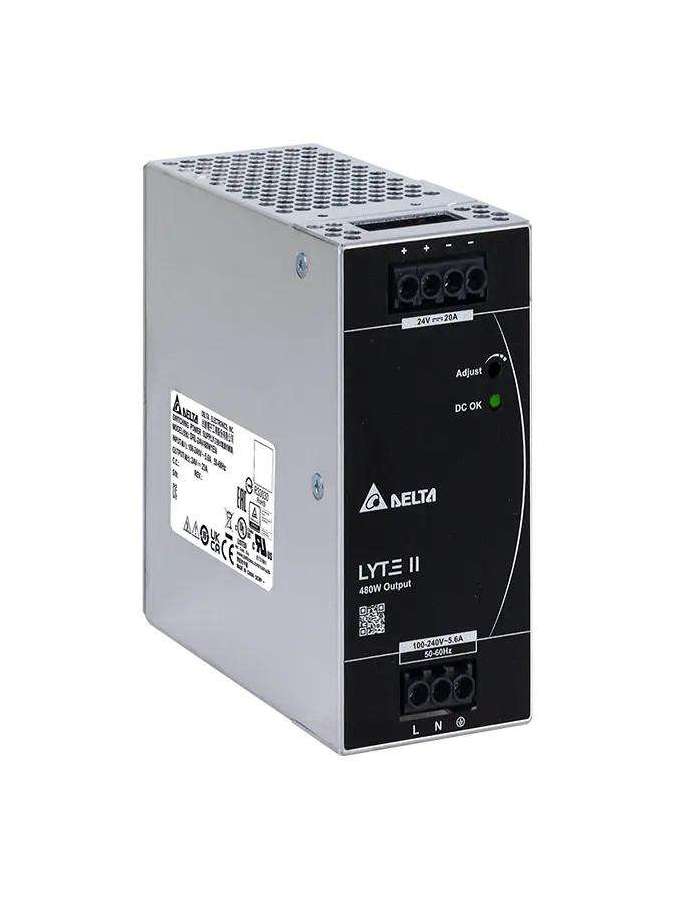

DRL-24V480W1ENA DELTA

Ficha técnica

Output Current

20A

Output Voltage

24V

Output Power

480W

Line Regulation

± 0.5% @ 115 Vac & 230 Vac

Load Regulation

± 0.5%

Hold-up Time

25 ms typ. @ 115 Vac & 230 Vac (100% load)

Dynamic Response (Overshoot and Undershoot O/P Voltage)

± 10% @ 115 Vac & 230 Vac input, 10-100% load (Slew Rate: 2.5 A/µS, 50% duty cycle @ 5 Hz & 10 kHz)

Nominal Input Voltage

100-240 Vac

Input Voltage Range

90-264 Vac

Nominal Input Frequency

50-60 Hz

Input Frequency Range

47-63Hz

Input Current

4.7 A typ. @ 115 Vac, 2.4 A typ. @ 230 Vac

Efficiency at 100% load

93.0% typ. @ 230 Vac

Case Chassis / Cover

Aluminum

Operating Temperature

-40°C to +70°C

Storage Temperature

-40°C to +85°C

Operating Humidity

20 to 95% RH (Non-Condensing)

Shock Test (Non-Operating)

IEC 60068-2-27, Half Sine Wave: 50 G for duration of 11 ms; 3 times per direction, 9 times in total

Vibration (Non-Operating)

IEC 60068-2-6, Random: 5 Hz to 500 Hz (2.09 G); 20 min per axis for all X, Y, Z direction

Operating Altitude

0 to 5,000 Meters (16,400 ft.)

Over Temperature

Latch Mode

Short Circuit

Hiccup Mode, Non-Latching (Auto-Recovery when the fault is removed)

Protection Against Shock

Class I with Primary Earth connection

CE

In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU

UKCA

In conformance with Electrical Equipment (Safety) Regulations 2016 and Electromagnetic Compatibility Regulations 2016

Harmonic Current Emissions

IEC/EN/BS 61000-3-2, Class A

Rise Time

30 ms typ. @ 115 Vac & 230Vac

Cooling System

Convection

Expected Cap Life Time

10 years (230 Vac, 50% load @ 40°C)

Immunity

EN 55035, KS C 9835, EN/BS 61000-6-2, Compliance to EN/BS 61000-6-1

Voltage Fluctuation and Flicker

IEC/EN/BS 61000-3-3

Inrush Current

40 A typ. @ 230 Vac

Indicator

Green LED DC OK

Input Terminal

3 Pins (Rated 600 V / 30 A)

Output Terminal

4 Pins (Rated 600 V / 30 A)

Output Voltage Adjustment Range

24-28 Vdc

Start-up with Capacitive Loads

8,000 µF Max

Mounting Rail

Standard TS35 DIN Rail in accordance with EN 60715

Vibration (Operating)

IEC 60068-2-6, Sine Wave: 10 Hz to 500 Hz; 3 G peak; 60 min per axis for all X, Y, Z directions

Shock Test (Operating)

IEC 60068-2-27, Half Sine Wave: 10 G for duration of 11 ms; 1 time in X axis

Pollution Degree

2

Component Power Supply for General Use

EN/BS EN 61204-3

Over Voltage Category

II (Compliance to EN 62477-1 OVC III with 2000 meters altitude)

Input Power (Standby Mode)

0.75 W max @ 115 Vac & 230 Vac

Internal Fuse

T10 A / 250 V
