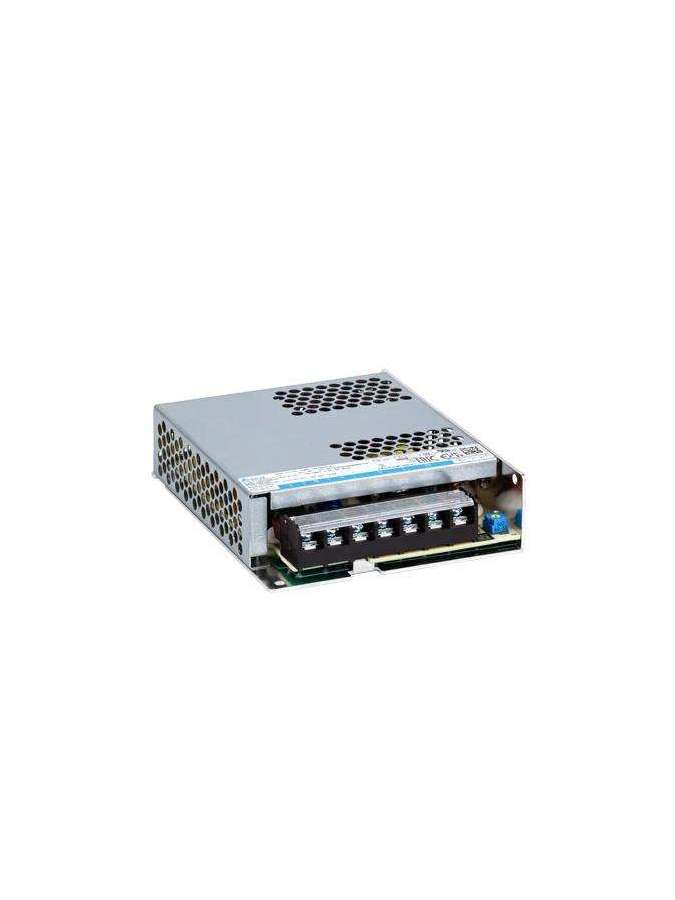

PMR-24V150W1AT DELTA
PMR-24V150W1AT
Ficha técnica
- Output Current
- 6.5A
- Output Voltage
- 24V
- Output Power
- 150W
- Line Regulation
- ± 0.5% typ. @ 115 Vac & 230 Vac
- Load Regulation
- ±0.5% typ.
- Start-up Time
- 500 ms typ. @ 115 Vac & 230 Vac
- Hold-up Time
- 30 ms typ. @ 115 Vac & 230 Vac
- Nominal Input Voltage
- 100-240 Vac
- Input Voltage Range
- 90-264 Vac
- Nominal Input Frequency
- 50-60 Hz
- Input Frequency Range
- 47-63Hz
- Efficiency at 100% load
- 92.5% typ. @ 230 Vac
- Case Chassis / Cover
- Aluminum / SGCC
- Operating Temperature
- -40°C to +70°C
- Storage Temperature
- -40°C to +85°C
- Operating Humidity
- 20 to 90% (Non-Condensing)
- Shock Test (Non-Operating)
- IEC 60068-2-27, Half Sine Wave: 50 G for duration of 11 ms; 3 times per direction
- Operating Altitude
- 0 to 5,000 Meters (0 to 16,400 ft)
- Overload / Overcurrent
- 110-175% of rated load current, Hiccup Mode, Non-Latching (Auto-Recovery)
- Over Temperature
- Latch Mode
- Protection Against Shock
- Class I with Protection Earth connection
- CE
- In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU
- UKCA
- In conformance with Electromagnetic Compatibility Regulations 2016 and Electrical Equipment (Safety) Regulations 2016
- Harmonic Current Emissions
- IEC/EN/BS EN 61000-3-2, Class A & Class D
- Rise Time
- 30 ms typ. @ 115 Vac & 230 Vac
- Cooling System
- Convection
- Expected Cap Life Time
- 10 years (230 Vac, 50% load @ 40°C)
- Immunity
- EN/BS EN 55035, KS C 9835, & Compliance to EN/ BS EN 55014-2 , EN/BS EN 61000-6- 1 , EN/BS EN 61000-6-2
- Voltage Fluctuation and Flicker
- IEC/EN/BS EN 61000-3-3
- Inrush Current
- 45 A typ. @ 230 Vac
- Indicator
- Green LED (DC OK)
- Output Voltage Adjustment Range
- 21.6-26.4 Vdc
- DC Input Voltage Range
- 127-375 Vdc
- Start-up with Capacitive Loads
- 8,000 µF Max
- Wire
- AWG 18-12
- Vibration (Operating)
- IEC 60068-2-6, Sine Wave: 10 Hz to 500 Hz @ 2G;10Min per cycle,60min for X,Y,Z direction
- Pollution Degree
- 3
- Safety Entry Low Voltage
- SELV
- Over Voltage Category
- II (Compliance to EN 62477-1 OVC III with 2000 meters altitude)
- Input Power (Standby Mode)
- 0.3 W max. @ 230 Vac
- Max. Power
- 156.0 W
- Terminal
- M3.5 x 7 Pins (Rated 300 V / 20 A)
