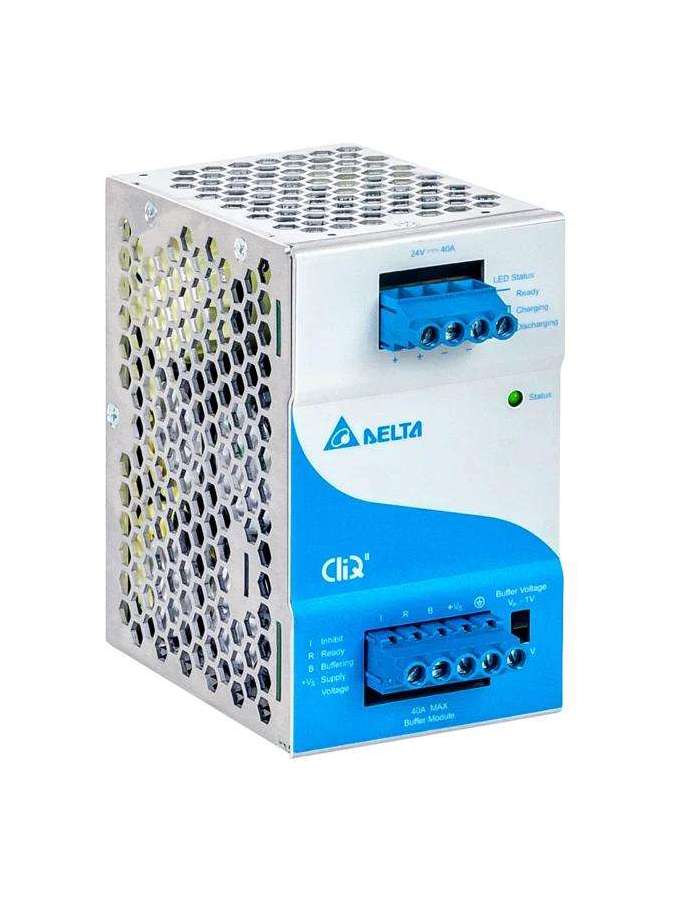

DRB-24V040ABN DELTA

Fiche technique

Output Current

40A

Output Voltage

24V

Nominal Input Voltage

24Vdc

Input Voltage Range

22.8-28.8Vdc

Input Power (Standby Mode)

2.5W

Case Chassis / Cover

Aluminium

Cooling System

Convection

Operating Temperature

-25°C to +75°C

Storage Temperature

-25°C to +85°C

Operating Humidity

5 to 95% RH (Non-Condensing)

Vibration (Non-Operating)

IEC 60068-2-6, 10Hz to 500Hz @ 30m/S² (3G peak); 60 min per axis for all X, Y, Z direction

Degree of Protection

IP20

Expected Cap Life Time

10 years (Standby Mode @ 40°C)

CE

In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU

Harmonic Current Emissions

IEC/EN/BS EN 61000-3-2, Class A

Voltage Fluctuation and Flicker

IEC/EN/BS EN 61000-3-3

Shock Test (Non-Operating)

IEC 60068-2-27, 30G (300m/S²) for a duration of 18ms, 1 time per direction, 2 times in total

Overvoltage

Yes, 35Vdc Max (the maximum input voltage that will not cause damage to the unit)

Short Circuit

Yes, No damage to the unit, Latch-off Mode

Protection Against Shock

Class I with Primary Earth connection

Operating Altitude

0 to 2,500 Meters (8,200 ft.)

Immunity

Generic Standards: EN/BS EN 55024, EN/BS EN 61000-6-2

Pollution Degree

2

Component Power Supply for General Use

EN 61204-3

Mounting Rail

Standard TS35 DIN Rail in accordance with EN 60715

Electrical Equipments of Machines

EN/BS EN 60204-1

Electrical Equipment for Use in Electrical Power Installations

IEC/EN/BS EN 62477-1 / IEC 62103

Buffering Time

200ms Min @ 24V/40A Load, 8s Min @ 24V/1A Load
