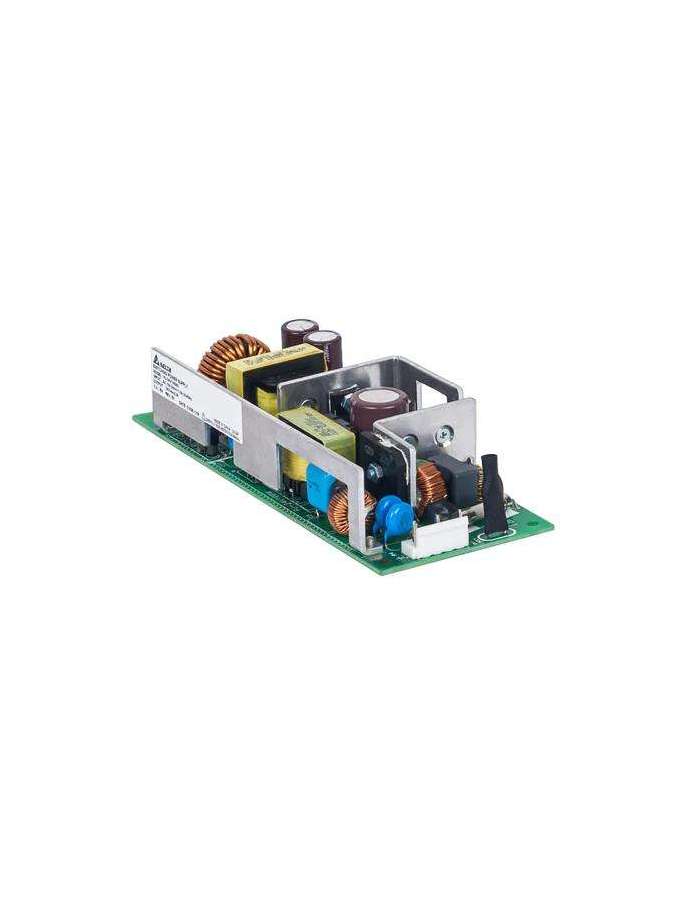

PJ-12V100WBNA DELTA

Fiche technique

Output Current

8.5A

Output Voltage

12V

Output Power

100W

Start-up Time

500ms typ. @ 100Vac (100% load)

Hold-up Time

20ms typ. @ 100Vac (100% load)

Dynamic Response (Overshoot and Undershoot O/P Voltage)

± 5% @ 0-50% load and 50-100% load (Slew Rate: 0.1A/µS)

Nominal Input Voltage

100-240Vac

Input Voltage Range

85-264Vac

Nominal Input Frequency

50-60Hz

Input Frequency Range

47-63Hz

Case Chassis / Cover

SGCC

Operating Temperature

-10°C to +70°C

Storage Temperature

-25°C to +75°C

Operating Humidity

5 to 90% RH (Non-Condensing)

Shock Test (Non-Operating)

IEC60068-2-27,196.1m/S² (20G), 11ms, once along X, Y, and Z axis

Operating Altitude

0 to 5,000 Meters (16,400 ft)

Overvoltage

13.8-16.8V, Latch Mode

Over Temperature

Latch Mode

Short Circuit

Hicc-up Mode, Non-Latching (Auto-Recovery when the fault is removed)

Protection Against Shock

Class I with Primary Earth connection

CE

In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU

UKCA

In conformance with Electromagnetic Compatibility Regulations 2016 and Electrical Equipment (Safety) Regulations 2016

Emission

CISPR 32, EN/BS EN 55032, Comply with FCC Title 47: Class B

Harmonic Current Emissions

IEC/EN/BS EN 61000-3-2, Class A

Cooling System

Convection

Power De-rating

Refer to datasheet (Engineering Data Fig.1.1~Fig.1.5 on Page8~10)

Expected Cap Life Time

10 years (115Vac, 50% load @ 40°C

Immunity

EN/BS EN 55024

Voltage Fluctuation and Flicker

IEC/EN/BS EN 61000-3-3

Input Terminal

JST B3P5-VH (LF)(SN)

Output Terminal

JST B8P5-VH (LF)(SN)

Output Voltage Adjustment Range

10.8-13.2Vdc

Start-up with Capacitive Loads

8,000µF Max

Wire

AWG 22-18

Vibration (Operating)

IEC60068-2-6, 10Hz to [email protected]/S² (2G); 3min period, 60 min per axis for all X, Y, Z direction

Pollution Degree

2

Safety Entry Low Voltage

SELV (EN 60950-1)

Over Voltage Category

II
