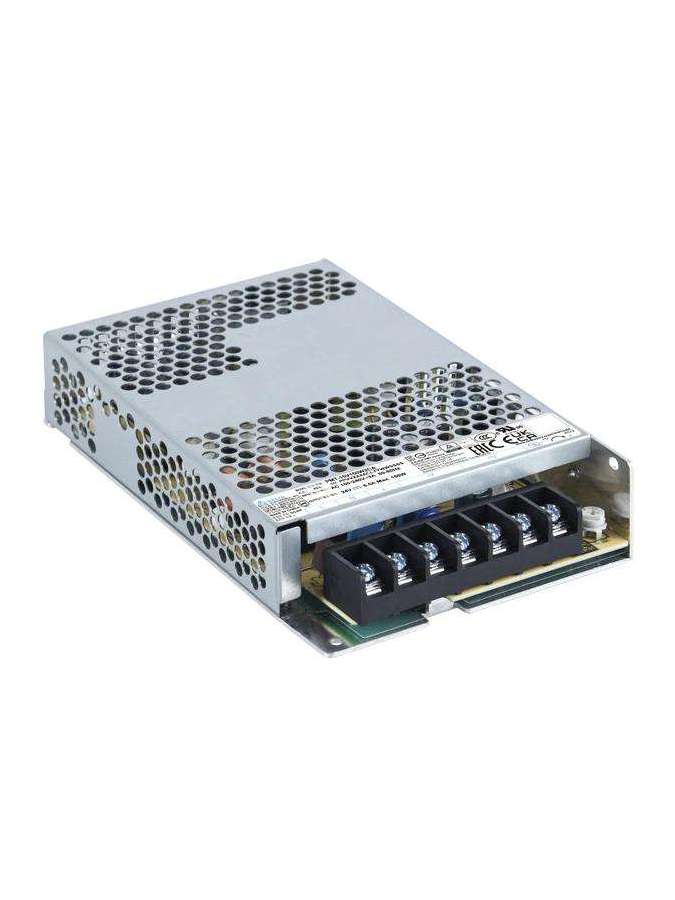

PMT-15V150W2CA DELTA

Fiche technique

Output Current

0-10A

Output Voltage

15V

Output Power

150W

Line Regulation

± 0.5% typ. (@ 115Vac & 230Vac input)

Load Regulation

± 0.5% typ. (@ 115Vac & 230Vac input)

Start-up Time

500 ms typ. @ 115 Vac & 230 Vac

Hold-up Time

12 ms typ. @ 115 Vac & 55 ms typ. @230 Vac full load

Dynamic Response (Overshoot and Undershoot O/P Voltage)

± 10% @ 115 & 230 Vac input, 10-100% load (Slew Rate: 2.5 A/µS, 50% duty cycle @ 5 Hz & 10 KHz)

Nominal Input Voltage

100-240 Vac

Input Voltage Range

90-264 Vac

Nominal Input Frequency

50-60 Hz

Input Frequency Range

47-63Hz

Input Current

3 A typ. @ 115 Vac, 1.7 A typ. @ 230 Vac

Efficiency at 100% load

89% typ. @230 Vac

Case Chassis / Cover

Aluminum / SGCC

Operating Temperature

-30°C to +70°C ( -40°C Cold Start )

Storage Temperature

-40°C to +85°C

Operating Humidity

20 to 90% RH (Non-Condensing)

Shock Test (Non-Operating)

IEC 60068-2-27, Half Sine Wave: 50 G for a duration of 11 ms, 3 shocks for each 3 directions

Vibration (Non-Operating)

IEC 60068-2-6, Random: 5 Hz to 500 Hz (2.09 G); 20 min per axis for all X, Y, Z direction

Operating Altitude

0 to 5,000 Meters (0 to 16,400 ft)

Overvoltage

16.5 V - 21.0 V SELV Output, Latch Mode

Overload / Overcurrent

110-175% of rated load current, Hiccup Mode, Non-Latching (Auto-Recovery)

Over Temperature

Latch Mode

Short Circuit

Hiccup Mode, Non-Latching (Auto-Recovery when the fault is removed)

Protection Against Shock

Class I with Protechtion Earth connection

CE

In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU

UKCA

In conformance with Electromagnetic Compatibility Regulations 2016 and Electrical Equipment (Safety) Regulations 2016

Harmonic Current Emissions

IEC/EN/BS EN 61000-3-2 Class A

Rise Time

30 ms typ. @ 115 Vac & 230 Vac

Cooling System

Convection

Expected Cap Life Time

10 years (230Vac, 50% load @ 40°C)

Immunity

EN/ BS EN 55035, KN 35, EN/BS EN 61000-6-2 Compliance to EN/BS EN 55014-2, EN/BS EN 61000-6-1

Inrush Current

60 A typ. @ 230 Vac

Indicator

Green LED (DC OK)

Output Voltage Adjustment Range

13.5-16.5 Vdc

Start-up with Capacitive Loads

8,000 µF Max

Wire

AWG 18-12

Vibration (Operating)

IEC 60068-2-6, Sine Wave: 20 Hz to 500Hz (5 G); 10 min per cycle, 60min for each axis (X, Y,Z)

Shock Test (Operating)

IEC 60068-2-27, Half Sine Wave: 10 G for a duration of 11 ms, 3 shock for each 3 directions.

Pollution Degree

3

Safety Entry Low Voltage

SELV

Over Voltage Category

II (Compliance to EN 62477-1 OVC III with 2000 meters altitude)
