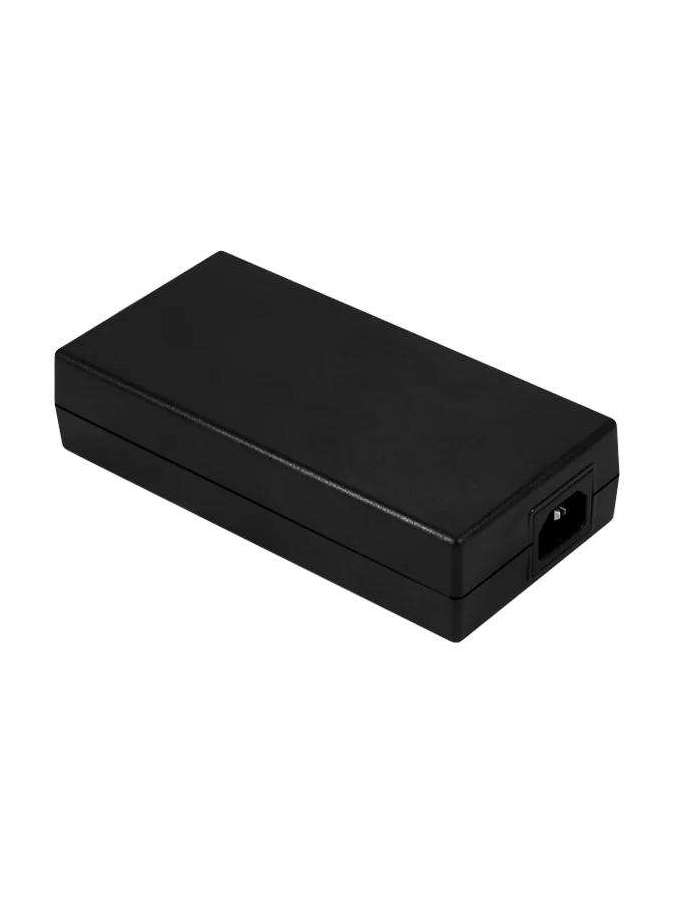

MDS-150AAS12 BA DELTA
MDS-150AAS12 BA
Ficha técnica
- Output Current
- 10A
- Output Voltage
- 12V
- Output Power
- 120W
- Nominal Input Voltage
- 100-240Vac
- Input Voltage Range
- 90-264Vac
- Nominal Input Frequency
- 50-60Hz
- Input Frequency Range
- 47-63Hz
- Efficiency at 100% load
- 88.1% (typ.)
- Case Chassis / Cover
- PC
- Operating Temperature
- 0°C to +40°C
- Storage Temperature
- -40°C to +85°C
- Operating Humidity
- 10-95% RH (Non-Condensing)
- Vibration (Non-Operating)
- 5-500Hz, 2.09Grms, 20 minute for each three axis
- Degree of Protection
- IP40
- MTBF
- 1185 kHrs based on Telecordia SR-332
- CE
- In conformance with EN 60601-1 & EN 60601-1-2
- UKCA
- Medical Devices Regulations 2002(UK MDR 2002)
- Emission
- EN/BS EN 55011, EN/BS EN 55032, FCC Title 47: Class B
- Harmonic Current Emissions
- IEC61000-3-2: Meet Class A limit
- Voltage Fluctuation and Flicker
- IEC61000-3-3
- Line Regulation
- ± 0.5%
- Load Regulation
- ± 5%
- Start-up Time
- 3000ms @ 115Vac
- Hold-up Time
- 20ms @ 115Vac
- Dynamic Response (Overshoot and Undershoot O/P Voltage)
- ± 5% @ 50-100% load
- Shock Test (Non-Operating)
- 50G, 11ms, 3 shocks for each direction
- Overvoltage
- 130% of rated load current, Hiccup Mode, (Non-Latching, Auto-Recovery)
- Overload / Overcurrent
- Hiccup Mode, (Non-Latching, Auto-Recovery)
- Over Temperature
- Hiccup Mode, (Non-Latching, Auto-Recovery)
- Short Circuit
- Hiccup Mode, (Non-Latching, Auto-Recovery)
- Protection Against Shock
- Class II with functional earth
- Electrical Safety
- IEC60950-1 (Ed.2,2005), IEC62368-1, GB4943.1-2011, GB9254-2008, GB17625.1-2003
- Galvanic Isolation
- Input to Output: 4000 Vac
- ITE Safety
- IEC 60950-1, IEC 62368-1, GB 4943.1, GB/T 9254.1, GB 17625.1
Referencias específicas
Nuevo
Descargas
Datasheet-MDS-150AAS12 B.pdfNo customer reviews for the moment.
