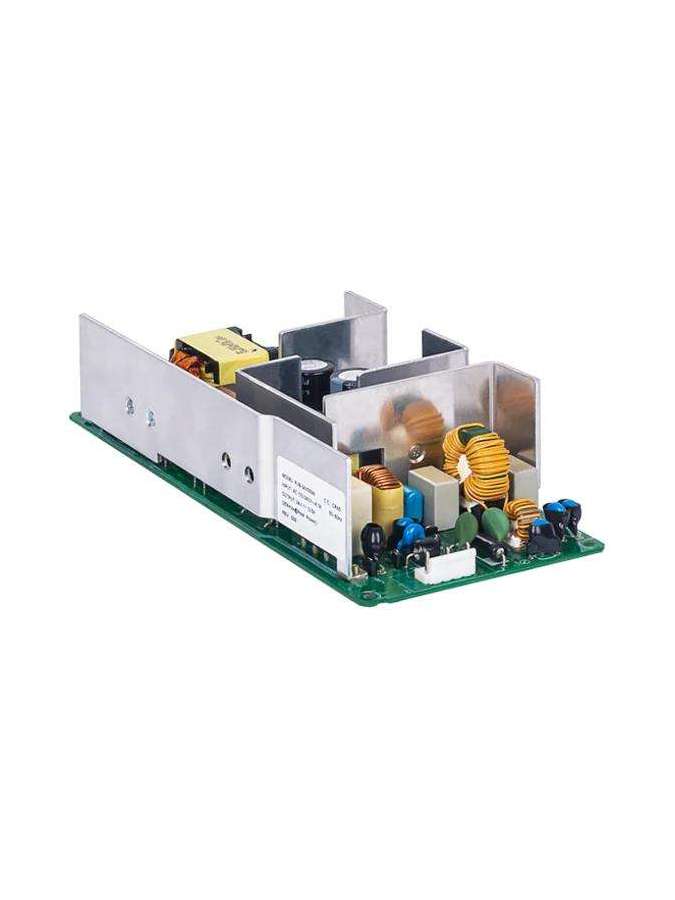

PJB-24V300WBNA DELTA

Ficha técnica

Output Current

12.5A

Output Voltage

24V

Output Power

300W

Nominal Input Voltage

100-240Vac

Input Voltage Range

85-264Vac

Nominal Input Frequency

50-60Hz

Input Frequency Range

47-63Hz

Input Current

4.1A typ. @ 100Vac, 2.0A typ. @ 200Vac

Efficiency at 100% load

91% typ. @ 100Vac, 93.5% typ. @ 200Vac

Power Factor at 100% load

0.99 typ. @ 100Vac, 0.95 typ. @ 200Vac

Case Chassis / Cover

SGCC

Cooling System

Convection / Forced Cooling

Input Terminal

JST B3P5-VH (LF)(SN)

Operating Temperature

-10°C to +70°C

Storage Temperature

-25°C to +85°C

Operating Humidity

5 to 95% RH (Non-Condensing)

Expected Cap Life Time

10 years (100Vac, 50% load @ 40°C)

CE

In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU

UKCA

In conformance with Electromagnetic Compatibility Regulations 2016 and Electrical Equipment (Safety) Regulations 2016

Emission

(CE & RE) CISPR 32, EN/BS EN 55032, FCC Title 47: Class B

Harmonic Current Emissions

IEC/EN/BS EN 61000-3-2, Class A and Class D (@100% Load)

Voltage Fluctuation and Flicker

IEC/EN/BS EN 61000-3-3

Start-up Time

500ms typ. @ 100Vac & 200Vac (100% load)

Hold-up Time

20ms typ.@ 100Vac & 200Vac (100% load)

Vibration (Operating)

IEC 60068-2-6, Sine Wave: 10Hz to 55Hz @ 19.6m/S² (2G peak); 10 min per cycle, 60 min per axis for all X, Y, Z direction

Shock Test (Non-Operating)

IEC 60068-2-27, Half Sine Wave: 50G for a duration of 11ms, 3 shocks for each 3 directions

Overvoltage

27.6-33.6V, Latch Mode

Over Temperature

Latch Mode

Short Circuit

Hiccup Mode, Non-Latching (Auto-recovery when the fault is removed)

Protection Against Shock

Class I with Primary Earth connection

Output Voltage Adjustment Range

21.6-26.4Vdc

Start-up with Capacitive Loads

8,000µF Max

Wire

AWG 22-16

Operating Altitude

0 to 5,000 Meters (16,400 ft.)

Safety Entry Low Voltage

SELV

Immunity

Generic Standards: EN/BS EN 55035; Design to meet IEC 61000-6-2

DC Input Voltage Range

120-370Vdc

Pollution Degree

2

Material and Parts

RoHS Directive 2011/65/EU
