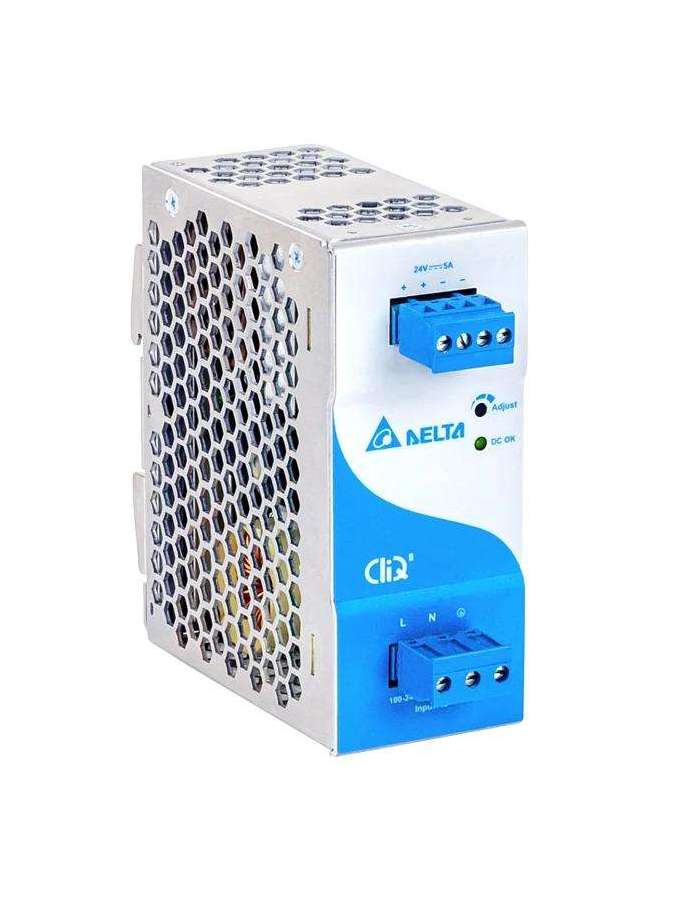

DRP024V120W1BN DELTA

Ficha técnica

Output Current

5A

Output Voltage

24V

Output Power

120W

Nominal Input Voltage

100-240Vac

Input Voltage Range

85-264Vac

Nominal Input Frequency

50-60Hz

Input Frequency Range

47-63Hz

Case Chassis / Cover

Aluminium

Cooling System

Convection

Input Terminal

3 Pins (Rated 300V/15A)

Output Terminal

4 Pins (Rated 300V/15A)

Operating Temperature

-25°C to +80°C (Cold Start at -40°C)

Storage Temperature

-40°C to +85°C

Operating Humidity

5 to 95% RH (Non-Condensing)

Vibration (Non-Operating)

IEC 60068-2-6, 10Hz to 500Hz @ 30m/S² (3G peak); 60 min per axis for all X, Y, Z direction

Degree of Protection

IP20

Expected Cap Life Time

10 years (115Vac & 230Vac, 50% load @ 40°C)

UKCA

In conformance with 2016 No. 1101. The Electrical Equipment (Safety) Regulations 2016 and 2016 No. 1091 The Electromagnetic Compatibility Regulations 2016

Harmonic Current Emissions

IEC/EN 61000-3-2, Class A

Voltage Fluctuation and Flicker

IEC/EN 61000-3-3

Shock Test (Non-Operating)

IEC 60068-2-27, 30G (300m/S²) for a duration of 18ms, 1 time per direction, 2 times in total

Short Circuit

Hiccup Mode, Non-Latching (Auto-recovery when the fault is removed)

Protection Against Shock

Class I with Primary Earth connection

Output Voltage Adjustment Range

24-28Vdc

Start-up with Capacitive Loads

10,000µF Max

Wire

Input / Output: AWG 20-14

Operating Altitude

0 to 2,000 Meters (6,560 ft)

Safety Entry Low Voltage

SELV (IEC 60950-1)

Immunity

Generic Standards: EN 55024, KN 35 (for DRP024V120W1BN), EN 61000-6-1, EN 61000-6-2

DC Input Voltage Range

120-375Vdc

Indicator

Green LED (DC OK)

Pollution Degree

2

Component Power Supply for General Use

EN 61204-3

Mounting Rail

Standard TS35 DIN Rail in accordance with EN 60715

Electrical Equipments of Machines

EN 60204-1 (over voltage category III)

Electrical Equipment for Use in Electrical Power Installations

IEC/EN 62477-1 / IEC 62103
