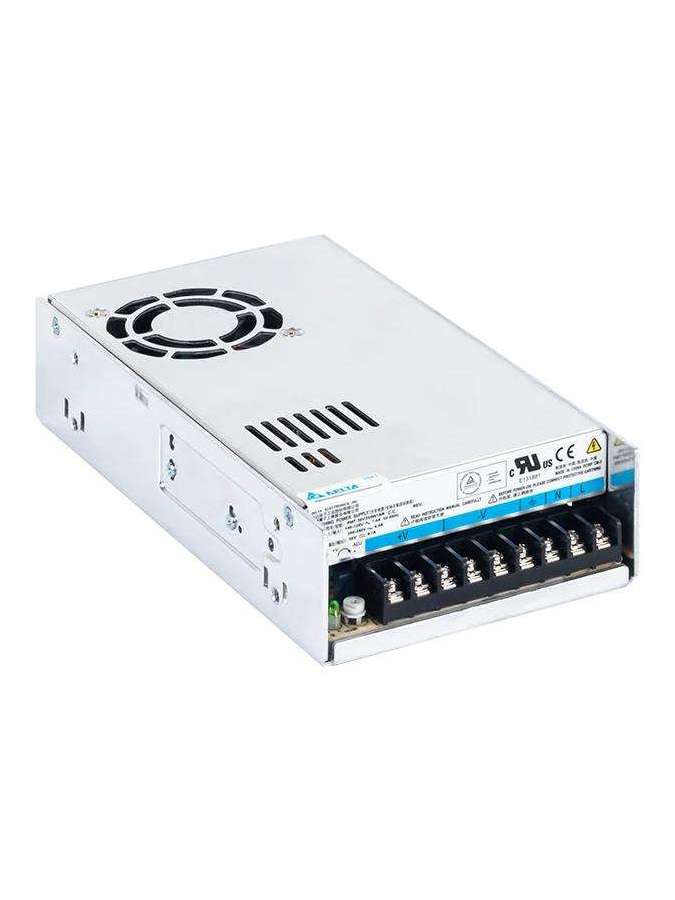

PMT-36V350W1AR DELTA
PMT-36V350W1AR
Ficha técnica
- Output Current
- 9.7A
- Output Voltage
- 36V
- Output Power
- 349.2W
- Nominal Input Voltage
- 100-120Vac, 200-240Vac (Selectable by Switch)
- Input Voltage Range
- 90-132Vac, 180-264Vac (Selectable by Switch)
- Nominal Input Frequency
- 50-60Hz
- Input Frequency Range
- 47-63Hz
- Input Current
- 7.00A typ. @115Vac, 4.00A typ. @ 230Vac
- Efficiency at 100% load
- 87.5% typ. @ 230Vac
- Inrush Current
- 40A typ. @ 115Vac, 60A typ. @ 230Vac
- Case Chassis / Cover
- Aluminium
- Cooling System
- Forced Cooling
- Operating Temperature
- -10°C to +70°C
- Storage Temperature
- -25°C to +85°C
- Operating Humidity
- 5 to 95% RH (Non-Condensing)
- Vibration (Non-Operating)
- IEC 60068-2-6, Random: 5Hz to 500Hz @ 2.09Grms peak; 20 min per axis for all X, Y, Z direction
- Expected Cap Life Time
- 10 years (115Vac & 230Vac, 50% load @ 40°C)
- CE
- In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU
- UKCA
- In conformance with Electromagnetic Compatibility Regulations 2016 and Electrical Equipment (Safety) Regulations 2016 The Electromagnetic Compatibility Regulations 2016
- Voltage Fluctuation and Flicker
- IEC/EN/BS EN 61000-3-3
- Line Regulation
- ± 0.5% typ.
- Load Regulation
- ± 1% typ.
- Hold-up Time
- 16ms typ. @ 115Vac, 20ms typ. @ 230Vac (100% load)
- Dynamic Response (Overshoot and Undershoot O/P Voltage)
- ± 5% @ 10-50% load and 50-100% load
- Vibration (Operating)
- IEC 60068-2-6, Sine Wave: 10Hz to 150Hz @ 25m/S² (2.5G peak); 90 min per axis for all X, Y, Z direction
- Shock Test (Non-Operating)
- IEC 60068-2-27, Half Sine: 50G for a duration of 11ms, 3 times per direction, 18 times in total
- Overvoltage
- 41.4V~48.6V, Latch Mode
- Short Circuit
- Hiccup Mode, Non-Latching (Auto-recovery when the fault is removed)
- Protection Against Shock
- Class I with Primary Earth connection
- Output Voltage Adjustment Range
- 32.4-39.6Vdc
- Start-up with Capacitive Loads
- 8,000µF Max
- Wire
- AWG 22-12
- Operating Altitude
- 0 to 5,000 Meters (16,400 ft.)
- Safety Entry Low Voltage
- SELV
- Immunity
- EN/BS EN 55024
- Indicator
- Green LED (DC OK)
- Pollution Degree
- 2
- Over Voltage Category
- II
