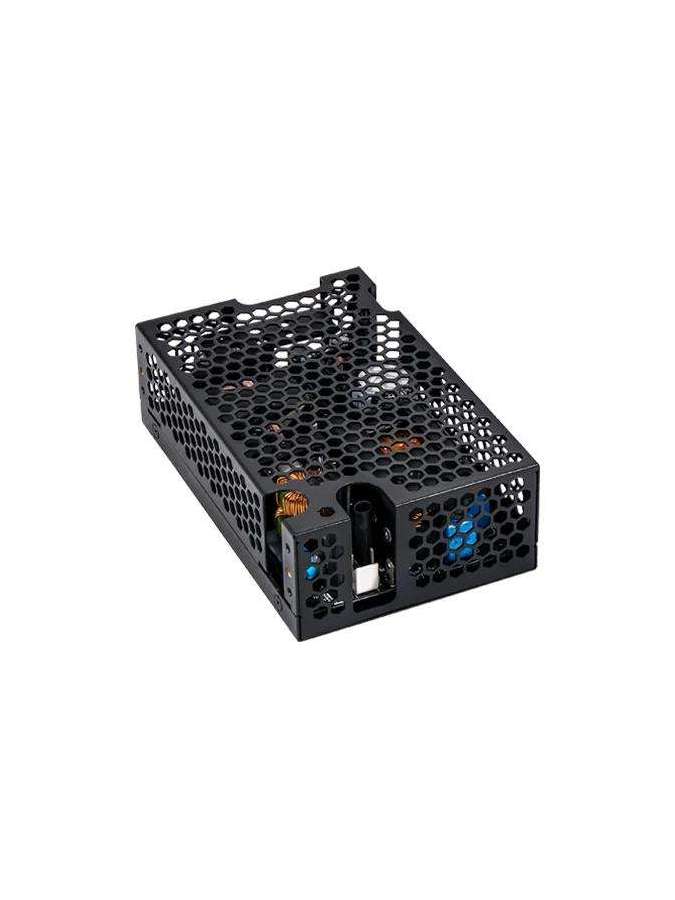

MDS-300ADB24 AB DELTA

Ficha técnica

Output Current

12.5A

Output Voltage

24V

Output Power

300W

Line Regulation

±0.5

Load Regulation

±1%

Start-up Time

2000ms @ 115Vac

Dynamic Response (Overshoot and Undershoot O/P Voltage)

± 5% @ with 50-100% load change

Nominal Input Voltage

100-240Vac

Input Voltage Range

90-264Vac

Nominal Input Frequency

50-60Hz

Input Frequency Range

47-63Hz

Input Current

4A

Case Chassis / Cover

Enclosed cover

Storage Temperature

-40°C to +85°C

Operating Humidity

5-95% RH (Non-Condensing)

Shock Test (Non-Operating)

50G, 11ms, 3 shocks for each direction

Operating Altitude

5,000 meters (16,400 feet or 50kPa)

Over Temperature

Latch Mode for Main output

MTBF

MTBF(Minimum) at 115Vac, 210W, 35 °C / Convection Air Flow / 800 Khrs based on Telecordia SR-332

Emission

EN/BS EN 55011,EN/BS EN 55032,FCC Title 47:Class B

Harmonic Current Emissions

IEC61000-3-2 Class D limit

PARD

1% pk-pk Vrated@ Full load

Rise Time

100ms

Power Factor at 100% load

0.9 @ 115V/50Hz, 230V/50Hz, full load

Power De-rating

Linear power derate from 100% load at 50°C, to 50% load at 70°C

Voltage Fluctuation and Flicker

IEC61000-3-3

Inrush Current

40A @ 230Vac, cold start

Vibration (Operating)

5-500Hz, 2Grms, 15 minute for each three axis
