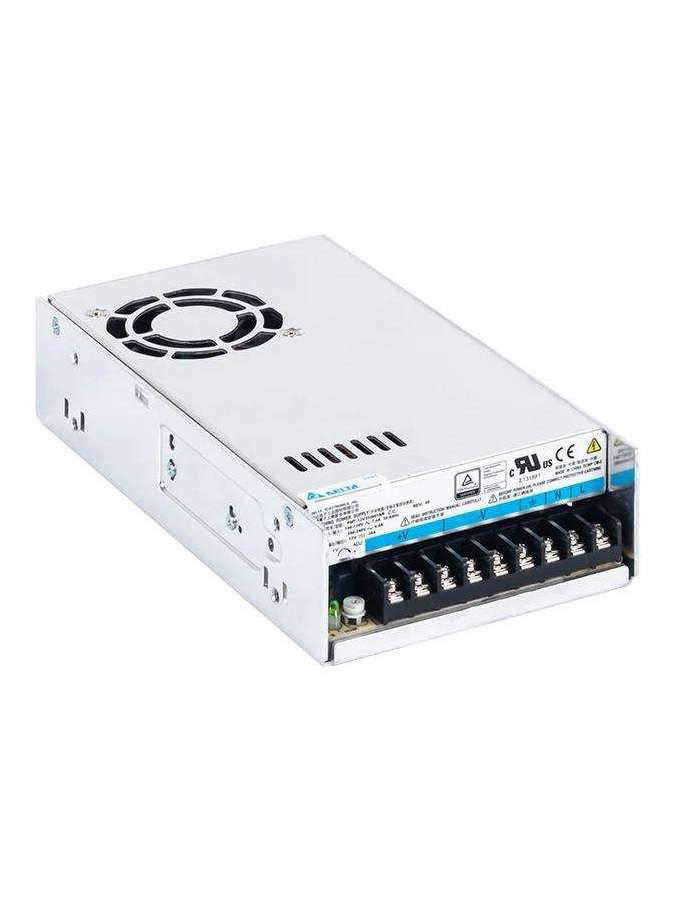

PMT-12V350W1AK DELTA
PMT-12V350W1AK
Ficha técnica
- Output Current
- 29A
- Output Voltage
- 12V
- Output Power
- 348W
- Line Regulation
- ± 0.5% typ.
- Load Regulation
- ± 1% typ.
- Hold-up Time
- 12ms typ.@ 115Vac, 16ms typ. @ 230Vac (100% load)
- Dynamic Response (Overshoot and Undershoot O/P Voltage)
- ± 5%, 10-50% load and 50-100% load (Slew Rate: 0.1A/µS)
- Nominal Input Voltage
- 100-120Vac, 200-240Vac (Selectable by Switch)
- Input Voltage Range
- 90-132Vac, 180-264Vac (Selectable by Switch)
- Nominal Input Frequency
- 50-60Hz
- Input Frequency Range
- 47-63Hz
- Input Current
- 7.00A typ. @ 115Vac, 4.00A typ. @ 230Vac
- Efficiency at 100% load
- 84.0% typ.@ 230Vac
- Case Chassis / Cover
- Aluminum / SGCC
- Operating Temperature
- -10°C to +70°C
- Storage Temperature
- -25°C to +85°C
- Operating Humidity
- 5 to 95% RH (Non-Condensing)
- Shock Test (Non-Operating)
- IEC 60068-2-27, Half Sine: 50G for a duration of 11ms, 3 times per direction, 18 times in total
- Vibration (Non-Operating)
- IEC 60068-2-6, Random: 5Hz to 500Hz @ 2.09Grms peak; 20 min per axis for all X, Y, Z direction
- Operating Altitude
- 0 to 5,000 Meters (16,400 ft.)
- Overvoltage
- 13.8-16.2V, SELV Output, Latch Mode
- Overload / Overcurrent
- 105%-150% of rated load current, Hiccup Mode, Non-Latching (Auto-Recovery)
- Over Temperature
- Hiccup Mode, Non-Latching (Auto-Recovery when the fault is removed)
- Short Circuit
- Hiccup Mode, Non-Latching (Auto-Recovery when the fault is removed)
- Protection Against Shock
- Class I with Primary Earth connection
- CE
- In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU
- UKCA
- In conformance with 2016 No. 1101. The Electrical Equipment (Safety) Regulations 2016 and 2016 No. 1091 The Electromagnetic Compatibility Regulations 2016
- Cooling System
- Forced Cooling
- Expected Cap Life Time
- 10 years (115Vac , 50% load @ 40°C)
- Immunity
- EN/BS EN 55024
- Voltage Fluctuation and Flicker
- IEC/EN/BS EN 61000-3-3
- Indicator
- Green LED (DC OK)
- Output Voltage Adjustment Range
- 10.8-13.2Vdc
- Start-up with Capacitive Loads
- 8,000µF Max
- Wire
- AWG 16-12
- Vibration (Operating)
- IEC 60068-2-6, Sine Wave: 10Hz to 150Hz @ 25m/S? (2.5G peak); 90 min per axis for all X, Y, Z direction
- Pollution Degree
- 2
- Safety Entry Low Voltage
- SELV
- Over Voltage Category
- II
