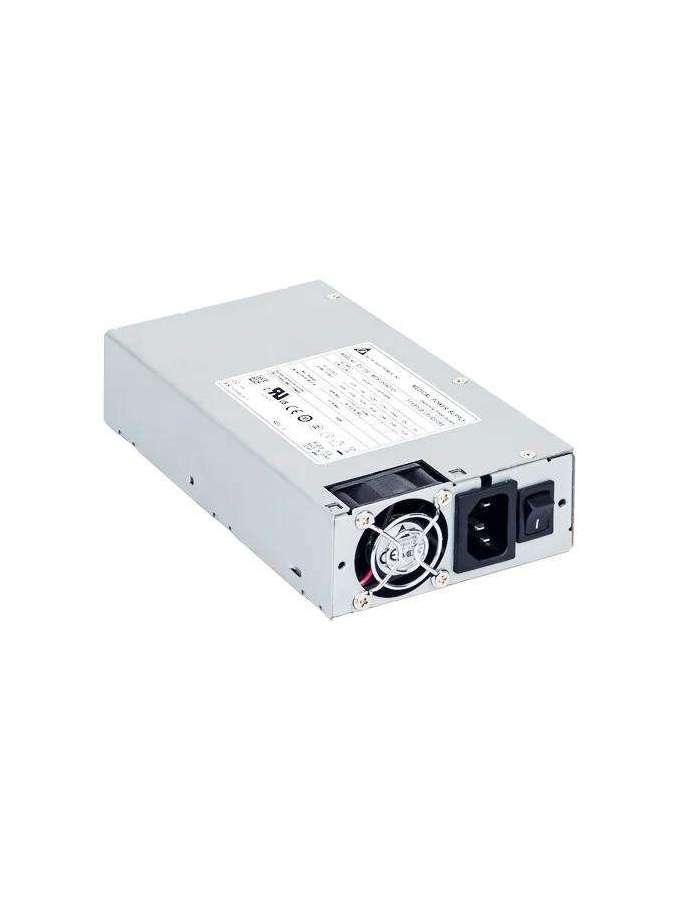

MDS-350AD701 DELTA
MDS-350AD701
Ficha técnica
- Output Current
- 8A,9A,1.25A,8A,8A,0.25A,0.1A
- Output Voltage
- 12V,12V,5V,3.3V,5V,-5V,-12V
- Output Power
- 350W
- Line Regulation
- ±0.5%
- Load Regulation
- ±10% (max.)
- Start-up Time
- 1000ms @ 115 Vac
- Hold-up Time
- 17ms @ 115 Vac / 60Hz
- Dynamic Response (Overshoot and Undershoot O/P Voltage)
- ± 10% @ 50-100% load
- Nominal Input Voltage
- 100-240Vac
- Input Voltage Range
- 90-264Vac
- Nominal Input Frequency
- 50-60Hz
- Input Current
- 6A
- Case Chassis / Cover
- SECC (Steel, Electrogalvanized, Cold Rolled, Coil)
- Operating Temperature
- 0°C to +50°C
- Storage Temperature
- -40°C to +85°C
- Operating Humidity
- 5-95% RH (Non-Condensing)
- Shock Test (Non-Operating)
- 50G, 11ms, 3 shocks for each direction
- Operating Altitude
- 5,000 meters (16,400 feet)
- Over Temperature
- Protection Method: Latch Mode
- MTBF
- 500 K hrs based on Telecordia SR-332
- Electrical Safety
- IEC60950-1 (Ed.2,2005) & IEC 62368-1 CB report
- CE
- In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU EN 60601-1: 2006 + A11: 2011 + A1: 2013 + A12: 2014 & EN 60601-1-2: 2015
- Emission
- EN/BS EN 55011 & compliant with EN/BS EN 55032, FCC Title 47:Class B
- Harmonic Current Emissions
- IEC 61000-3-2: Meet Class D limit
- Rise Time
- 20ms (max.)
- Power Factor at 100% load
- 0.90 min @ 115V & 230V
- Cooling System
- Forced Cooling
- Expected Cap Life Time
- 26,280 hrs
- Voltage Fluctuation and Flicker
- IEC 61000-3-3
- Inrush Current
- No damage, cold start
- ESD Immunity
- IEC 61000-4-2
- EFT
- IEC 61000-4-4
- Surge
- IEC 61000-4-5
- Conducted Immunity
- IEC 61000-4-6
- Magnetic Field
- IEC 61000-4-8
- Vibration (Operating)
- 5-500Hz, 2Grms, 15 minute for each three axis
- Shock Test (Operating)
- 50G, 11ms, 3 shocks for each direction
