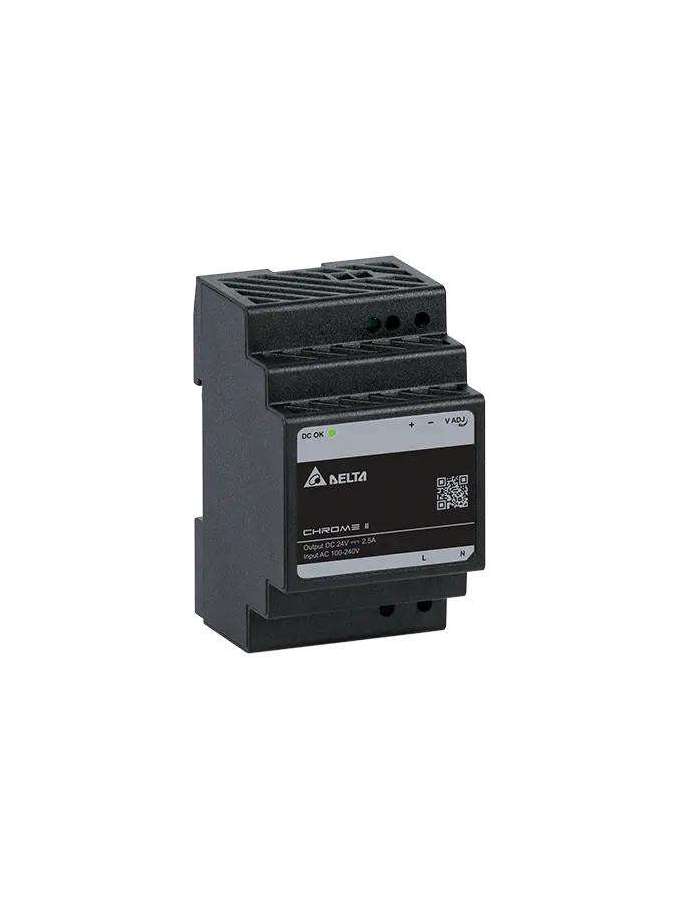

DRC-24V060W1RZ DELTA
DRC-24V060W1RZ
Ficha técnica
- Output Current
- 2.5A
- Output Voltage
- 24V
- Output Power
- 60W
- Nominal Input Voltage
- 100-240 Vac
- Input Voltage Range
- 85-264 Vac
- Nominal Input Frequency
- 50-60 Hz
- Input Frequency Range
- 47-63Hz
- Inrush Current
- 40 A typ. @ 230 Vac
- Case Chassis / Cover
- Plastic
- Cooling System
- Convection
- Input Terminal
- M2.5 x 2 Pins (Rated 300 V / 16 A)
- Output Terminal
- M2.5 x 2 Pins (Rated 300 V / 16 A)
- Operating Temperature
- -30°C to +70°C (-40°C Cold Start)
- Storage Temperature
- -40°C to +85°C
- Operating Humidity
- 5 to 95% RH (Non-Condensing)
- Degree of Protection
- IP20
- Expected Cap Life Time
- 10 years (115 Vac & 230 Vac, 50% load @ 40°C)
- CE
- In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU
- UKCA
- In conformance with Electrical Equipment (Safety) Regulations 2016 and Electromagnetic Compatibility Regulations 2016
- Harmonic Current Emissions
- IEC/EN 61000-3-2, Class A
- Voltage Fluctuation and Flicker
- IEC/EN 61000-3-3
- Line Regulation
- ± 0.5% @ 115 Vac & 230 Vac
- Load Regulation
- ± 0.5%
- Start-up Time
- 300 ms typ. @ 115 Vac & 230 Vac
- Hold-up Time
- 16 ms typ. @ 115 Vac & 80 ms typ. 230 Vac (100% load)
- Vibration (Operating)
- IEC 60068-2-6, Sine Wave: 10 Hz to 500 Hz @ 2 G; 10 min per cycle, 60 min for X, Y, Z direction
- Shock Test (Non-Operating)
- IEC 60068-2-27, Half Sine Wave: 50 G for duration of 11 ms; 3 times per direction
- Over Temperature
- Latch Mode
- Short Circuit
- Hiccup Mode, Non-Latching (Auto-recovery when the fault is removed)
- Protection Against Shock
- Class II (No Primary Earth connection is required)
- Galvanic Isolation
- Input to Output 4.0 kVac
- Output Voltage Adjustment Range
- 21.6-26.4 Vdc
- Start-up with Capacitive Loads
- 8,000 µF Max
- Operating Altitude
- 0 to 5,000 Meters (16,400 ft)
- Indicator
- Green LED DC OK
- Pollution Degree
- 2
- Component Power Supply for General Use
- EN 61204-3
- Rise Time
- 30 ms typ. @ 115 Vac & 230 Vac
- Internal Fuse
- T3.15 A / 250 V
- Mounting Rail
- Standard TS35 DIN Rail in accordance with EN 60715
