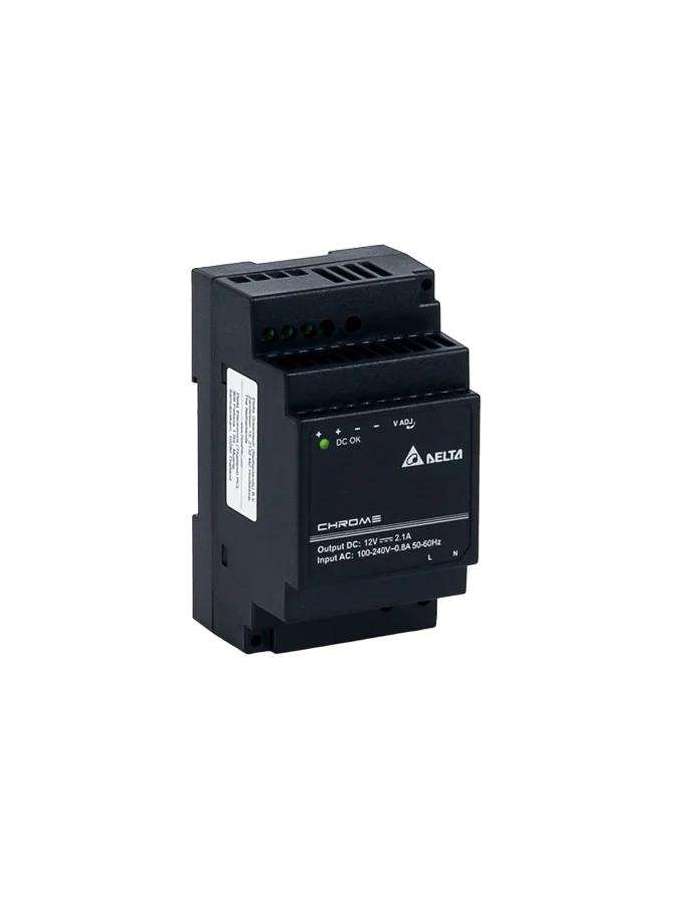

DRC-12V30W1AZ DELTA

Ficha técnica

Output Current

2.1A

Output Voltage

12V

Output Power

25W

Nominal Input Voltage

100-240Vac

Input Voltage Range

90-264Vac

Nominal Input Frequency

50-60Hz

Input Frequency Range

47-63Hz

Case Chassis / Cover

Plastic

Cooling System

Convection

Input Terminal

2 Pins (Rated 300V/25A)

Output Terminal

4 Pins (Rated 300V/25A)

Operating Temperature

-25°C to +71°C

Storage Temperature

-25°C to +85°C

Operating Humidity

5 to 95% RH (Non-Condensing)

Degree of Protection

IP20

Expected Cap Life Time

10 years (115Vac & 230Vac, 50% load @ 40°C)

CE

In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU

UKCA

In conformance with 2016 No. 1101. The Electrical Equipment (Safety) Regulations 2016 and 2016 No. 1091 The Electromagnetic Compatibility Regulations 2016

Harmonic Current Emissions

IEC/EN 61000-3-2, Class A

Voltage Fluctuation and Flicker

IEC/EN 61000-3-3

Vibration (Operating)

IEC 60068-2-6, Sine Wave: 10-500Hz @ 19.6m/S² (2G peak); 10 min per cycle, 60 min for all X, Y, Z directions

Short Circuit

Hiccup Mode, Non-Latching (Auto-recovery when the fault is removed)

Protection Against Shock

Class II (No Primary Earth connection is required)

Galvanic Isolation

Input to Output: 3.0KVac

Output Voltage Adjustment Range

11.5-14.5Vdc

Start-up with Capacitive Loads

3,000µF Max

Wire

Input / Output: AWG 22-12

Operating Altitude

0 to 2,000 Meters (6,560 ft.)

Safety Entry Low Voltage

SELV (EN 60950)

Immunity

Generic Standards: EN 55024

DC Input Voltage Range

125-375Vdc

Indicator

Green LED (DC OK)

Pollution Degree

2

Industrial Control Equipment

UL/cUL listed: UL 508 and CSA C22.2 No. 107.1-01 (File No. E338991)

Over Voltage Category

II

Mounting Rail

Standard TS35 DIN Rail in accordance with EN 60715
