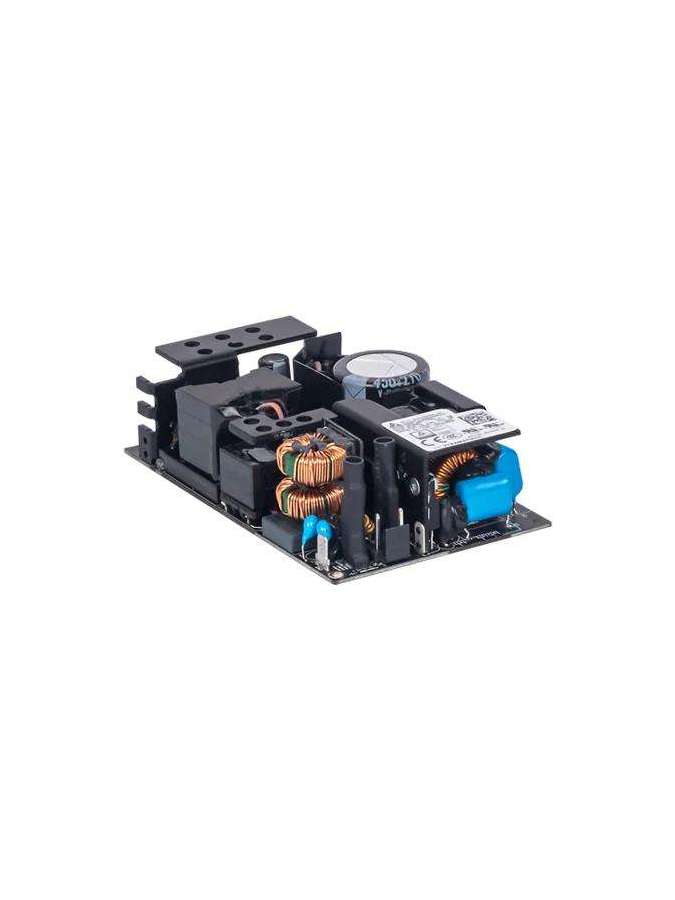

MDS-400APB24 AB DELTA
MDS-400APB24 AB
Ficha técnica
- Output Current
- 16.66A
- Output Voltage
- 24V
- Output Power
- 400W
- Nominal Input Voltage
- 100-240Vac
- Input Voltage Range
- 90-264Vac
- Nominal Input Frequency
- 50-60Hz
- Input Frequency Range
- 47-63Hz
- Input Current
- 5.5A
- Inrush Current
- 40A @ 230Vac, cold start
- Case Chassis / Cover
- NA
- Operating Temperature
- -10°C to +70°C,
- Storage Temperature
- -40°C to +85°C
- Operating Humidity
- 5-95% RH (Non-Condensing)
- MTBF
- 500 kHrs based on Telecordia SR-332 at 100 Vac, 400 W, ambient 25 °C
- Expected Cap Life Time
- 26,280 Hrs at 115 Vac, 400 W, ambient 25 °C,
- UKCA
- In conformance with Electrical Equipment (Safety) Regulations 2016 and Electromagnetic Compatibility Regulations 2016, Medical Devices Regulations 2002 (UK MDR 2002)
- Emission
- EN/BS EN 55011 & compliant with EN/BS EN 55032, FCC Title 47:Class B
- Harmonic Current Emissions
- IEC 61000-3-2 Class D limit
- Voltage Fluctuation and Flicker
- IEC 61000-3-3
- Line Regulation
- ±0.5%
- Load Regulation
- ±1%
- Start-up Time
- 2000ms @ 115Vac
- Hold-up Time
- 10ms @ 115Vac, with 400W load
- Dynamic Response (Overshoot and Undershoot O/P Voltage)
- ± 5% @ 50-100% load
- Vibration (Operating)
- 5-500 Hz, 2 Grms, 15 minute for each three axis
- Shock Test (Non-Operating)
- 50G, 11ms, 3 shocks for each direction
- Overvoltage
- 135% of rated voltage, Latch Mode
- Over Temperature
- Latch Mode
- Ripple and Noise
- 1% pk-pk Vrated @ Full load
- Power De-rating
- power linearly de-rate from 50°C to 50% rated up to 70°C with 12 CFM forced air
