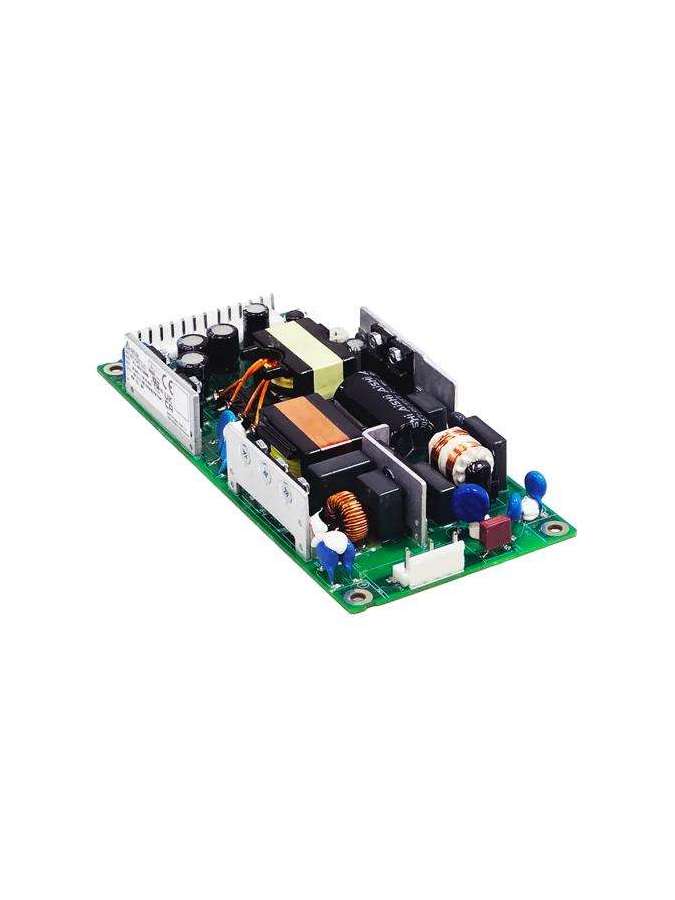

PJ-48V150WDRA DELTA

Ficha técnica

Output Current

3.2A

Output Voltage

48V

Output Power

153.6W

Nominal Input Voltage

100-240Vac

Input Voltage Range

85-264Vac

Nominal Input Frequency

50-60Hz

Input Frequency Range

47-63Hz

Power Factor at 100% load

0.98 typ. @ 100Vac, 0.95 typ. @ 200Vac

Case Chassis / Cover

SGCC

Cooling System

Convection

Input Terminal

JST B3P5-VH (LF)(SN)

Output Terminal

V–: JST B7P-VH (LF)(SN), V+: JST B6P-VH (LF)(SN)

Operating Temperature

-40°C to +70°C

Storage Temperature

-40°C to +85°C

Operating Humidity

5 to 90% RH (Non-Condensing)

Expected Cap Life Time

10 years (115Vac, 50% load @ 40°C)

CE

In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU

UKCA

In conformance with Electromagnetic Compatibility Regulations 2016 and Electrical Equipment (Safety) Regulations 2016

Emission

CISPR 32, EN/BS EN 55032, Comply with FCC Title 47: Class B

Harmonic Current Emissions

IEC/EN/BS EN 61000-3-2, Class A & Class D

Voltage Fluctuation and Flicker

IEC/EN/BS EN 61000-3-3

Line Regulation

+/- 0.5%

Load Regulation

+/- 0.5%

Start-up Time

500ms typ. @ 100Vac

Hold-up Time

30 ms typ. @ 100 Vac (100% load)

Dynamic Response (Overshoot and Undershoot O/P Voltage)

± 10% @ 115 & 230 Vac input, 10-100% load (Slew Rate: 2.5 A/µS, 50% duty cycle @ 5 Hz & 10 KHz)

Shock Test (Non-Operating)

IEC 60068-2-27, Half Sine Wave 50G,11 ms, 3 shocks X, Y, and Z direction

Overvoltage

55.0-68.0 V, Latch Mode

Over Temperature

Latch Mode

Short Circuit

Hicc-up Mode, Non-Latching (Auto-Recovery when the fault is removed)

Protection Against Shock

Class I with Primary Earth connection

Output Voltage Adjustment Range

43.2-52.8 Vdc

Start-up with Capacitive Loads

5,000µF Max

Wire

AWG 22-18

Power De-rating

Refer to Engineering Data Fig.1.1~Fig.1.5 on Page7~9

Immunity

EN/BS EN 55035

DC Input Voltage Range

120-373 Vdc
