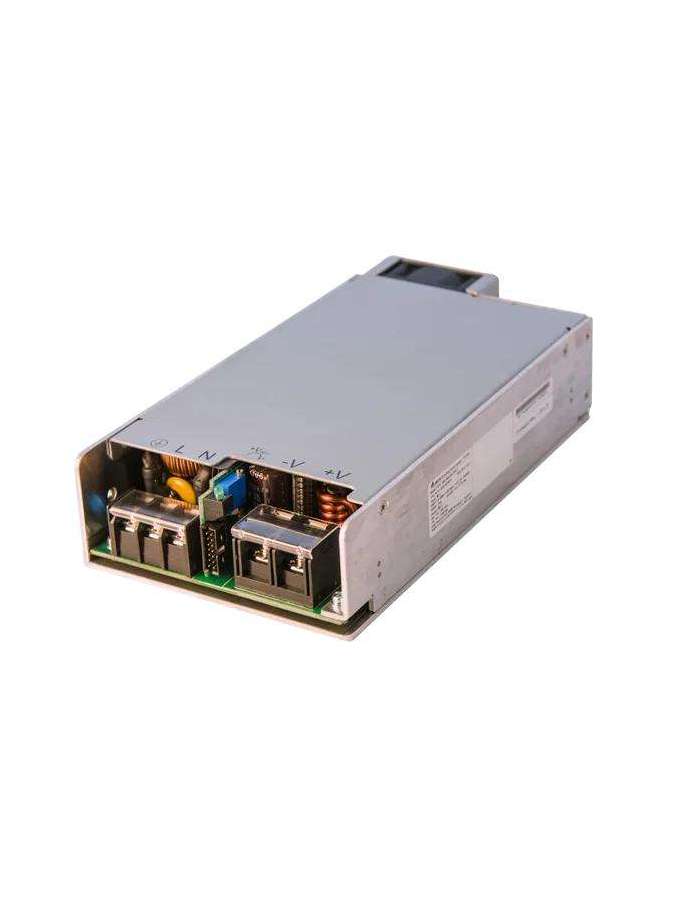

IMA-S600-48-ZYPLI DELTA
IMA-S600-48-ZYPLI
Ficha técnica
- Output Current
- 12.5A
- Output Voltage
- 48V
- Output Power
- 600W
- Hold-up Time
- 20 msec nominal
- Nominal Input Voltage
- 100-240Vac
- Input Voltage Range
- 80-275Vac
- Nominal Input Frequency
- 50-60Hz
- Input Frequency Range
- 47-63Hz
- Operating Temperature
- -20°C to +70°C
- Storage Temperature
- -40°C to +85°C
- Shock Test (Non-Operating)
- IEC 60068-2-27 compliant, 50 g, 11 msec, 3 shocks for each direction
- Vibration (Non-Operating)
- IEC 60068-2-6 compliant, 2.09 Grms, 5 Hz to 500 Hz, 20 minutes per side (3 planes)
- Overload / Overcurrent
- YES, at 108% to 140% of nominal output current; auto recovery
- Over Temperature
- YES, auto recovery
- Short Circuit
- YES, auto recovery
- MTBF
- 500,000 hours (Telecordia SR-332, Issue 3, 25 °C, 90% confidence level)
- Emission
- EN 55011, EN 55022 and FCC, Class B
- Harmonic Current Emissions
- EN 61000-3-2, Class A
- Power Factor at 100% load
- 0.9 (typical)
- Cooling System
- Fan with variable speed control
- Output Voltage Adjustment Range
- 38.4-56.0V
- DC Input Voltage Range
- 120-300Vdc
Referencias específicas
Nuevo
Descargas
Datasheet-IMA-S600-48.pdfNo customer reviews for the moment.
