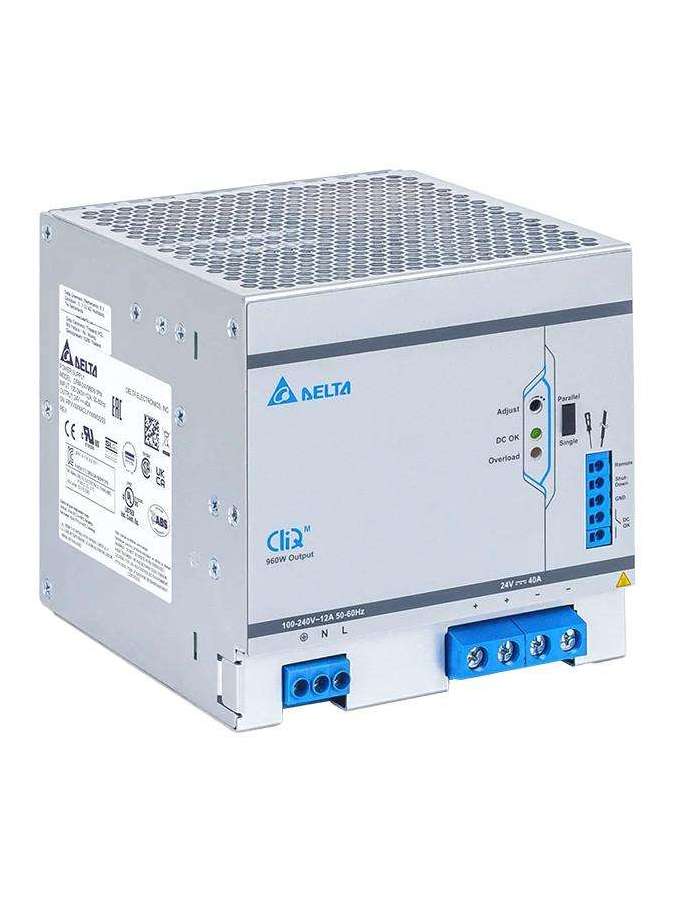

DRM-24V960W1PN DELTA

Ficha técnica

Output Current

40A

Output Voltage

24V

Output Power

960W

Line Regulation

10mV Max. (@ 85-264Vac input, 100% load)

Start-up Time

800ms Max. @ 100Vac & 120Vac & 230Vac

Hold-up Time

24ms Typ. @ 100Vac & 120Vac & 230Vac (100% load)

Nominal Input Voltage

100-240Vac

Input Voltage Range

85-264Vac

Nominal Input Frequency

50-60Hz

Input Frequency Range

47-63Hz

Input Current

10.50A Typ. @ 100Vac, 8.60A Typ. @ 120Vac, 4.50A Typ. @ 230Vac

Efficiency at 100% load

94.10% Typ. @ 100Vac, 94.71% Typ. @ 120Vac, 95.98% Typ. @ 230Vac

Case Chassis / Cover

Aluminium

Operating Temperature

-25°C to +70°C (Cold Start -40°C)

Storage Temperature

-40°C to +85°C

Operating Humidity

5 to 95% RH (Non-Condensing)

Shock Test (Non-Operating)

IEC 60068-2-27, Half Sine Wave: 30G for a duration of 18ms; 3 times per direction, 6 times in total

Vibration (Non-Operating)

IEC 60068-2-6, Sine Wave: 10-500Hz; 3G peak; displacement of 0.35mm; 60 min per axis for all X, Y, Z directions

Short Circuit

Hiccup Mode, Non-Latching (Auto-Recovery when the fault is removed)

Degree of Protection

IP20

Protection Against Shock

Class I with Primary Earth connection

CE

In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU

UKCA

In conformance with Electrical Equipment (Safety) Regulations 2016 No. 1011 and The Electromagnetic Compatibility Regulations 2016 No. 1091

Harmonic Current Emissions

IEC/EN/BS EN 61000-3-2, Class A

PARD

100mVpp Max.

Power Factor at 100% load

0.99 Typ. @ 100Vac, 0.99 Typ. @ 120Vac, 0.96 Typ. @ 230Vac

Cooling System

Convection

Immunity

Generic Standards: EN/BS EN 55024, KN 35, EN/BS EN 61000-6-2

Voltage Fluctuation and Flicker

IEC/EN/BS EN 61000-3-3

Inrush Current

11A Max. @ 100Vac, 13A Max. @ 120Vac, 20A Max. @ 230Vac

Indicator

Green LED (DC OK) and Red LED (Overload)

Input Terminal

3 Pins (Rated 600V/35A)

Output Terminal

4 Pins (Rated 300V/65A)

Output Voltage Adjustment Range

24-28Vdc

Start-up with Capacitive Loads

40,000µF Max.

Signal Terminal

5 Pins (Rated 300V/10A)

Mounting Rail

Standard TS35 DIN Rail in accordance with EN 60715

Pollution Degree

2

Safety Entry Low Voltage

SELV (IEC 60950-1)

Component Power Supply for General Use

EN/BS EN 61204-3

Bump Test (Operating)

IEC 60068-2-29, Half Sine Wave: 10G for a duration of 11ms, 1,000 times per direction, 6,000 times in total

Electrical Equipments of Machines

EN/BS EN 60204-1 (over voltage category III)

Electrical Equipment for Use in Electrical Power Installations

IEC/EN/BS EN 62477-1 / IEC 62103

Power Boost Recovery Time

17 seconds Typ.
