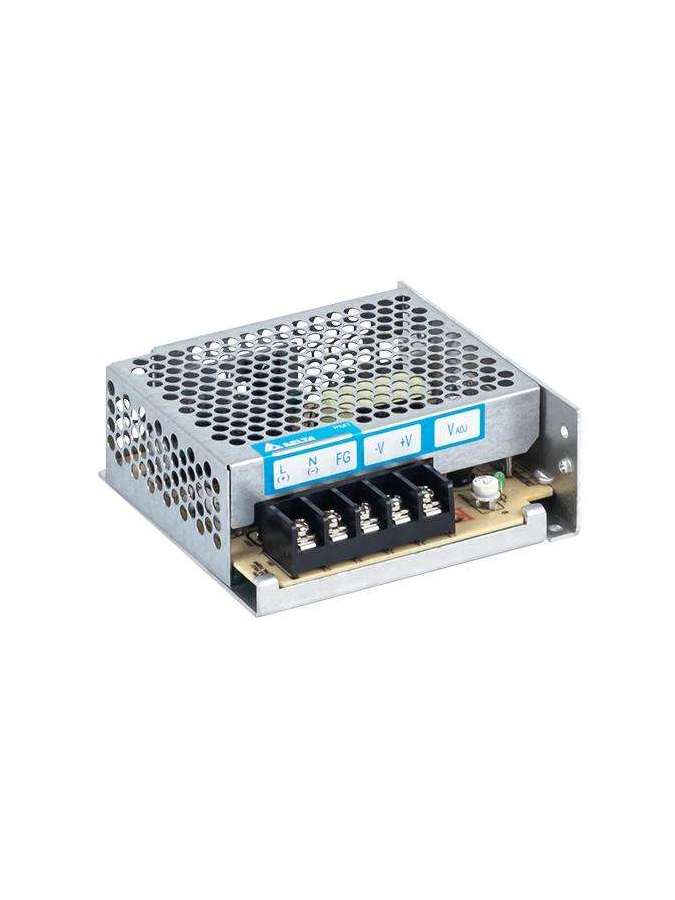

PMT-24V50W1AA DELTA

Ficha técnica

Output Current

2.09A

Output Voltage

24V

Output Power

50W

Dynamic Response (Overshoot and Undershoot O/P Voltage)

± 5% @ 0-100% load (Slew Rate: 0.1A/µS)

Nominal Input Voltage

100-240Vac

Input Voltage Range

85-264Vac

Nominal Input Frequency

50-60Hz

Input Frequency Range

47-63Hz

Case Chassis / Cover

SGCC

Operating Temperature

-10°C to +70°C

Storage Temperature

-25°C to +85°C

Operating Humidity

5 to 95% RH (Non-Condensing)

Shock Test (Non-Operating)

IEC60068-2-27, Half Sine Wave: 50G for a duration of 11ms, 3 shocks for each 3 directions

Vibration (Non-Operating)

IEC60068-2-6, Random: 5Hz to 500Hz (2.09Grms); 20 min per axis for all X, Y, Z direction

Operating Altitude

0 to 5,000 Meters (16,400 ft.)

Over Temperature

Non-Latching (Auto-Recovery)

Short Circuit

Hicc-up Mode, Non-Latching (Auto-Recovery when the fault is removed)

Protection Against Shock

Class I with PE* connection

CE

In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU

UKCA

In conformance with 2016 No. 1101. The Electrical Equipment (Safety) Regulations 2016 and 2016 No. 1091 The Electromagnetic Compatibility Regulations 2016

Power Factor at 100% load

Conform to EN61000-3-2

Cooling System

Convection

Immunity

EN55024: 1998/A1:2001/ A2:2003 Level 3; EN61000-4-2, Level 4 “Criteria A”

Output Voltage Adjustment Range

22-28Vdc

Start-up with Capacitive Loads

8,000µF Max

Pollution Degree

2

Safety Entry Low Voltage

SELV (EN 60950-1)

Over Voltage Category

II
