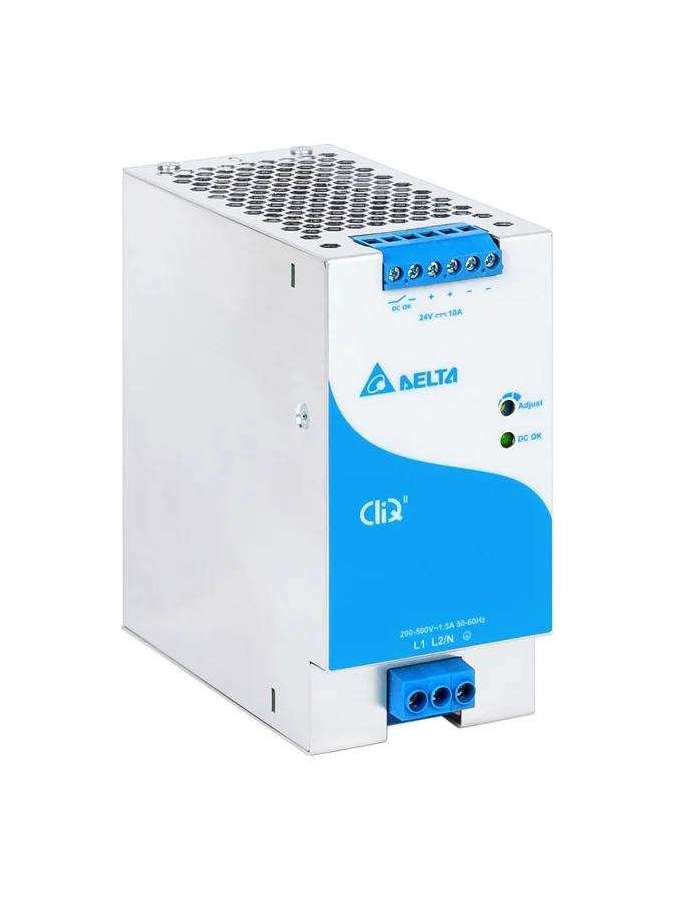

DRP-24V240W2BN DELTA

Ficha técnica

Output Current

10A

Output Voltage

24V

Output Power

240W

Nominal Input Frequency

50-60Hz

Input Frequency Range

47-63Hz

Case Chassis / Cover

Aluminium

Operating Temperature

-30°C to +70°C

Storage Temperature

-40°C to +85°C

Operating Humidity

5 to 95% RH (Non-Condensing)

Overvoltage

32V ±10%, SELV Output, Hiccup Mode, Non-Latching (Auto-Recovery)

Short Circuit

Hiccup Mode, Non-Latching (Auto-Recovery when the fault is removed)

Degree of Protection

IP20

Protection Against Shock

Class I with Primary Earth connection

CE

In conformance with EMC Directive 2014/30/EU (only AC input) and Low Voltage Directive 2014/35/EU

UKCA

In conformance with Electrical Equipment (Safety) Regulations 2016 No. 1011 and The Electromagnetic Compatibility Regulations 2016 No. 1091

Harmonic Current Emissions

IEC/EN/BS EN 61000-3-2, Class A

Cooling System

Convection

Expected Cap Life Time

10 years (2 x 200Vac & 500Vac, 50% load @ 40°C)

Immunity

Generic Standards: EN/BS EN 55024, EN/BS EN 61000-6-2

Voltage Fluctuation and Flicker

IEC/EN/BS EN 61000-3-3

Indicator

Green LED (DC OK)

Input Terminal

3 Pins (Rated 600V/35A)

Output Terminal

4 Pins (Rated 300V/28A)

Output Voltage Adjustment Range

24-28Vdc

DC Input Voltage Range

254-780Vdc

Start-up with Capacitive Loads

10,000µF Max

Mounting Rail

Standard TS35 DIN Rail in accordance with EN 60715

Pollution Degree

2

Safety Entry Low Voltage

SELV (IEC 60950-1)

Component Power Supply for General Use

EN/BS EN 61204-3

Bump Test (Operating)

IEC 60068-2-29, Half Sine Wave: 10G for a duration of 11ms, 1,000 times per direction, 6,000 times in total

Electrical Equipments of Machines

EN/BS EN 60204-1 (over voltage category III)

Electrical Equipment for Use in Electrical Power Installations

IEC/EN/BS EN 62477-1 / IEC 62103
