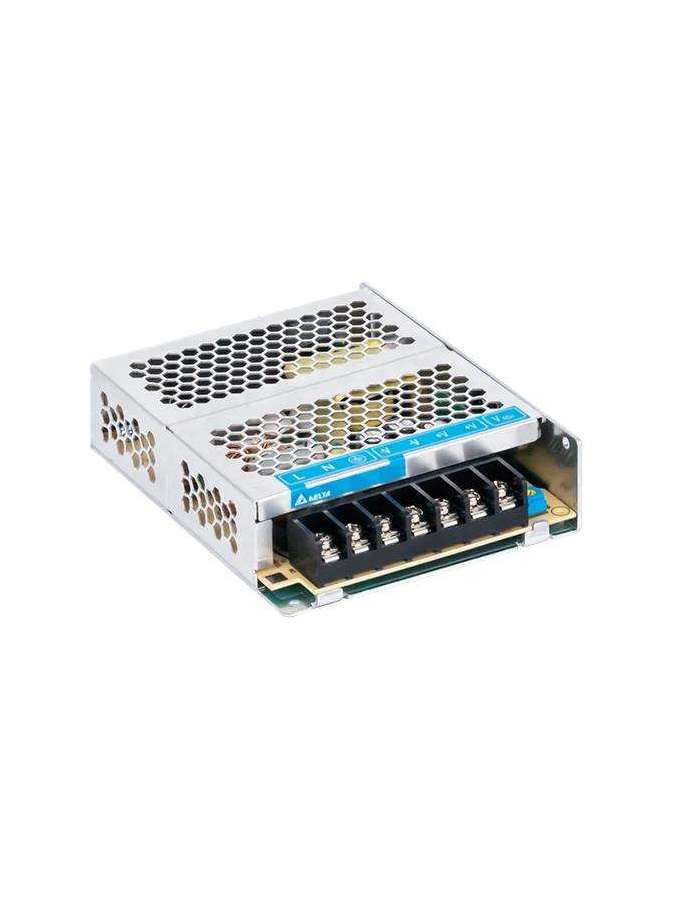

PMH-24V100WCMS DELTA

Ficha técnica

Output Current

3.8A

Output Voltage

24V

Output Power

91W

Nominal Input Voltage

100-240Vac

Input Voltage Range

85-264Vac

Nominal Input Frequency

50-60Hz

Input Frequency Range

47-63Hz

Case Chassis / Cover

Aluminium

Operating Temperature

-30°C to +70°C

Storage Temperature

-40°C to +85°C

Operating Humidity

5 to 95% RH (Non-Condensing)

Shock Test (Non-Operating)

IEC 60068-2-27, 30G (300m/S²) for a duration of 18ms,3 times per direction, 9 times in total

Vibration (Non-Operating)

IEC 60068-2-6, 10Hz to 150Hz @ 50m/S² (5G peak); displacement of 0.35mm; 20 min per axis for all X, Y, Z direction

Operating Altitude

0 to 5,000 Meters (16,400 ft.)

Overload / Overcurrent

105~130% of rated load current, Hiccup mode, Non-Latching (Auto-Recovery)

Short Circuit

Hiccup Mode, Non-Latching (Auto-Recovery when the fault is removed)

Degree of Protection

IP20 (PMH-24V100WC?U)

Protection Against Shock

Class I with Primary Earth connection

CE

In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU

Emission

Generic Standards: EN/BS EN 55011, EN/BS EN 55032, CISPR 32, FCC Title 47: Class B, EN 55014-1, EN 61000-6-3

Harmonic Current Emissions

IEC/EN/BS EN 61000-3-2, Class A

Cooling System

Convection

Expected Cap Life Time

10 years (115Vac & 230Vac, 50% load @ 40°C)

Immunity

Generic Standards: EN/BS EN 55024, EN/BS EN 61000-6-2, EN 55014-2

Voltage Fluctuation and Flicker

IEC/EN/BS EN 61000-3-3

Indicator

Green LED (DC OK)

Output Voltage Adjustment Range

22-24Vdc

DC Input Voltage Range

120-375Vdc

Start-up with Capacitive Loads

3,000µF Max

Pollution Degree

2

Safety Entry Low Voltage

SELV (IEC 60950-1)

Component Power Supply for General Use

EN 61204-3

Over Voltage Category

II
