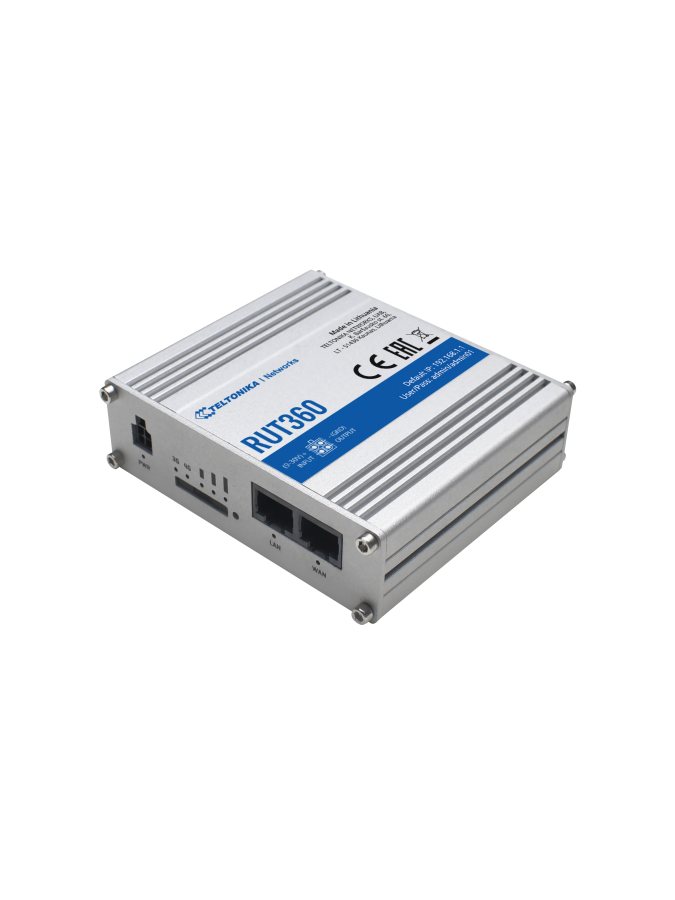

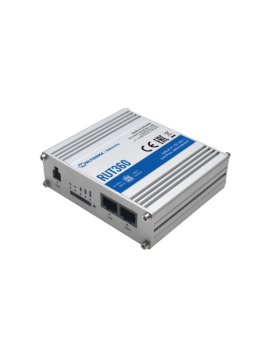

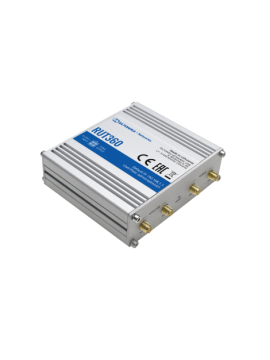

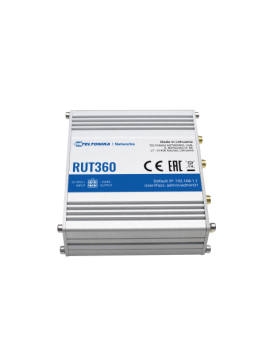

RUT360 TELTONIKA

RUT360 TELTONIKA, MOBILE Mobile module 4G (LTE) – Cat 6 up to 300 Mbps, 3G – Up to 42 Mbps, Status Signal strength, SINR, RSRP, RSRQ, Bytes sent/received, connected band, carrier aggregation, IMSI, ICCID, SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET, Email to SMS, SMS to Email, SMS to HTTP, SMS to SMS, SMS auto reply, USSD Supports sending and reading Unstructured Supplementary Service Data messages, Black/Whiles list (planned) Operator black/white list, Multiple PDN Possibility to use different PDNs for multiple network access and services, Band management Band lock, Used band status display, APN Auto APN, Bridge mode Direct connection (bridge) between mobile ISP and device on LAN, WIRELESS Wireless mode 802.11 b/g/n, 2x2 MIMO, Access Point (AP), Station (STA), WiFi security WPA3-EAP, WPA3-SAE, WPA2-Enterprise-PEAP, WPA2-PSK, WEP; AES-CCMP, TKIP, Auto Cipher modes, client separation, ESSID ESSID stealth mode, Wireless Hotspot Captive portal (Hotspot), internal/external Radius server, SMS OTP, MAC auth, built in customizable landing page, walled garden, ETHERNET WAN 1 x WAN port (can be configured as LAN) 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX crossover, LAN 1 x LAN ports, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX crossover, NETWORK Routing Static routes, Dynamic routes (planned), Network protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP (planned), SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet client, SNMP (planned), MQTT (planned), Wake on LAN (WOL) (planned), VoIP passthrough support H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets, Connection monitoring Ping Reboot, Wget reboot, Periodic Reboot, LCP and ICMP for link inspection, Firewall Port forwards, traffic rules, NAT rules, custom rules, DHCP Static and dynamic IP allocation, DHCP Relay, Relayd, QoS / Smart Queue Management (SQM) (planned) Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e, DDNS (planned) Supported >25 service providers, others can be configured manually, Network backup Mobile, Wired and WiFi WAN options, each of which can be used as an automatic Failover, Load balancing Balance Internet traffic over multiple WAN connections, SSHFS (optional) Possibility to mount remote file system via SSH protocol (not available in standard FW), SECURITY Authetication Pre-shared key, digital certificates, X.509 certificates, Firewall Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T, Attack prevention DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks), VLAN Tag based VLAN separation, Mobile quota control Custom data limits for both SIM cards, WEB filter (planned) Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only, Access control Flexible access control of TCP, UDP, ICMP packets, MAC address filter, VPN OpenVPN Multiple clients and a server can run simultaneously, 12 encryption methods, OpenVPN Encryption DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, BF-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBC, IPSec IKEv1, IKEv2, with 5 encryption methods for IPsec (DES, 3DES, AES128, AES192, AES256), GRE GRE tunnel, PPTP, L2TP Client/Server instances can run simultaneously, L2TPv3 support (planned), Stunnel (planned) Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code, DMVPN (planned) Method of building scalable IPsec VPNs, SSTP (planned) SSTP client instance support, ZeroTier ZeroTier VPN client support, WireGuard WireGuard VPN client and server support, MODBUS MODBUS TCP SLAVE (PLANNED) ID filtering Respond to one ID in range [1;255] or any, Allow remote access Allow access through WAN, Custom registers Modbus TCP custom register block, which allows to read/write to a file inside the router, and can be used to extend Modbus TCP slave functionality, MODBUS TCP MASTER (PLANNED) Supported functions 01, 02, 03, 04, 05, 06, 15, 16, Supported data formats 8 bit: INT, UINT; 16 bit: INT, UINT (MSB or LSB first); 32 bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII, MQTT GATEWAY (PLANNED) Gateway Allows sending commands and receiving data from Modbus Master trough MQTT broker, DATA TO SERVER (PLANNED) Protocols HTTP(S), MQTT, Azure MQTT, Kinesis, MONITORING & MANAGEMENT WEB UI HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, event log, system log, kernel log, FOTA Firmware update from server, automatic notification, SSH SSH (v1, v2), SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET, Call Reboot, Status, Mobile data on/off, Output on/off, MQTT (planned) MQTT Broker, MQTT publisher, SNMP (planned) SNMP (v1, v2, v3), SNMP trap, JSON-RPC Management API over HTTP/HTTPS, Modbus (planned) Modbus TCP status/control, RMS Teltonika Remote Management System (RMS), IoT PLATFORMS Clouds of things Allows monitoring of: Device data, Mobile data, Network info, Availability, ThingWorx Allows monitoring of: WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type, Cumulocity Allows monitoring of: Device Model, Revision and Serial Number, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength, WAN Type and IP, Azure IoT Hub Can send device IP, Number of bytes send/received, Mobile connection state, Network link state, IMEI, ICCID, Model, Manufacturer, Serial, Revision, IMSI, SIM State, PIN state, GSM signal, WCDMA RSCP, WCDMA EC/IO, LTE RSRP, LTE SINR, LTE RSRQ, CELL ID, Operator, Operator number, Connection type, Temperature, PIN count to Azure IoT Hub server, SYSTEM CHARACTERISTICS CPU QCA9531, MIPS 24kc, 650 MHz, RAM 128 MB, DDR2, FLASH storage 16 MB, SPI Flash (optional up to 256 MB), FIRMWARE / CONFIGURATION WEB UI Update FW from file, check FW on server, configuration profiles, configuration backup, FOTA Update FW/configuration from server, RMS Update FW/configuration for multiple devices at once, Keep settings Update FW without losing current configuration, INPUT/OUTPUT Configurable I/O 2 x Configurable digital Inputs/Outputs. Digital input 0 - 6 V detected as logic low, 8 - 30 V detected as logic high. Open collector output, max output 30 V, 300 mA, Events SMS, Email, RMS, POWER Connector 4 pin industrial DC power socket, Input voltage range 9 - 30 VDC, reverse polarity protection, voltage surge/transient protection, Power consumption 10.5 W max, PHYSICAL INTERFACES (PORTS, LEDS, ANTENNAS, BUTTONS, SIM) Ethernet 2 x RJ45 ports, 10/100 Mbps, I/Os 2 x Configurable digital Inputs/Outputs on 4 pin power connector, Status LEDs 2 x Mobile connection type, 3 x Mobile connection strength, 2 x Eth status, 1 x Power, SIM 1 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders, Antenna 2 x SMA for LTE, 2 x RP-SMA for WiFi, Power 1 x 4 pin DC connector, Reset Reboot/User default reset/Factory reset button, PHYSICAL SPECIFICATION Casing material Aluminium housing with DIN rail mounting option, Dimensions (W x H x D) 100 x 30 x 85 mm, Weight 247 g, Mounting options DIN rail, flat surface placement, OPERATING ENVIRONMENT Operating temperature -40 C to 75 C, Operating humidity 10 % to 90 % non-condensing, , RUT360 TELTONIKA
