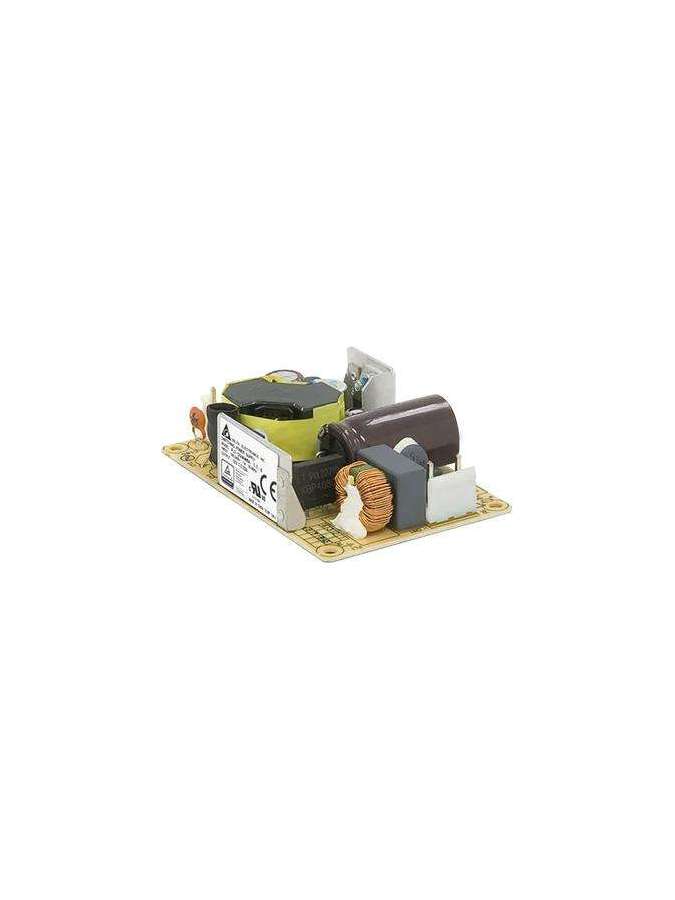

PJT-24V40WBAA DELTA
PJT-24V40WBAA
Fiche technique
- Output Current
- 1.66A
- Output Voltage
- 24V
- Output Power
- 40W
- Line Regulation
- ± 0.5% @ 115Vac & 230Vac
- Load Regulation
- ± 1.0% @ 115Vac & 230Vac
- Start-up Time
- 2800ms typ. @ 115Vac, 1100ms typ. @ 230Vac
- Nominal Input Voltage
- 100-240Vac
- Input Voltage Range
- 90-264Vac
- Nominal Input Frequency
- 50-60Hz
- Input Frequency Range
- 47-63Hz
- Efficiency at 100% load
- 86.0% typ @ 115Vac, 87.0% typ. @ 230Vac
- Operating Temperature
- -10°C to +70°C
- Storage Temperature
- -40°C to +85°C
- Operating Humidity
- 10 to 95% RH (Non-Condensing)
- Shock Test (Non-Operating)
- IEC 60068-2-27, Half Sine Wave: 50G for a duration of 11ms, 3 shocks for each 3 directions
- Overvoltage
- 26.4-36.0V, Latch Mode
- Over Temperature
- Non-Latching (Auto-Recovery)
- Short Circuit
- Hiccup Mode, Non-Latching (Auto-Recovery when the fault is removed)
- Protection Against Shock
- Class I with PE connection
- CE
- In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU
- UKCA
- In conformance with Electromagnetic Compatibility Regulations 2016 and Electrical Equipment (Safety) Regulations 2016
- Emission
- CISPR 32, EN/BS EN 55032, FCC Title 47: Class B
- Leakage Current
- 0.1mA @ 240Vac
- Cooling System
- Convection
- Immunity
- EN/BS EN 55024
- Voltage Fluctuation and Flicker
- IEC/EN/BS EN 61000-3-3
- Inrush Current
- 30A typ. @ 115Vac, 60A typ. @ 230Vac
- Start-up with Capacitive Loads
- 2,000uF Max
