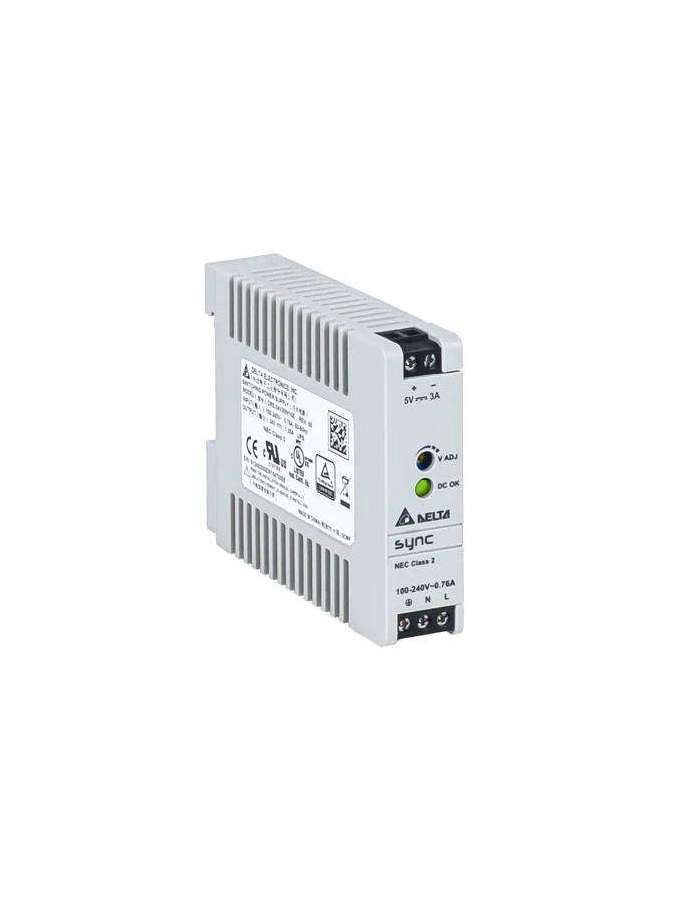

DRS-5V30W1NZ DELTA
DRS-5V30W1NZ
Fiche technique
- Output Current
- 3A
- Output Voltage
- 5V
- Output Power
- 15W
- Dynamic Response (Overshoot and Undershoot O/P Voltage)
- ± 5% @ 85-264Vac input, 5-100% load (Slew Rate: 0.1A/µS, 50% duty cycle @ 5Hz to 1KHz)
- Nominal Input Voltage
- 100-240Vac
- Input Voltage Range
- 85-264Vac
- Nominal Input Frequency
- 50-60Hz
- Input Frequency Range
- 47-63Hz
- Case Chassis / Cover
- Plastic
- Operating Temperature
- -20°C to +70°C (Cold start at -40°C @ 40% load)
- Storage Temperature
- -40°C to +85°C
- Operating Humidity
- 5 to 95% RH (Non-Condensing)
- Shock Test (Non-Operating)
- IEC60068-2-27, Half Sine Wave: 50G for a duration of 11ms; 3 times per direction, 9 times in total
- Vibration (Non-Operating)
- IEC 60068-2-6, Random: 5-500Hz; 2.09Grms, 20 min per axis for all X, Y, Z directions
- Overload / Overcurrent
- 105~140% of rated load current, Hiccup Mode, Non-Latching (Auto-Recovery)
- Short Circuit
- Hiccup Mode, Non-Latching (Auto-Recovery when the fault is removed)
- Degree of Protection
- IP20
- Protection Against Shock
- Class I with PE connection
- CE
- In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU
- UKCA
- In conformance with Electrical Equipment (Safety) Regulations 2016 No. 1011 and The Electromagnetic Compatibility Regulations 2016 No. 1091
- Emission
- Generic Standards: EN/BS EN 61000-6-3, EN/BS EN 61000-6-4, CISPR 32, EN/BS EN 55032, EN/BS EN 55011, FCC Title 47: Class B
- Harmonic Current Emissions
- IEC/EN/BS EN 61000-3-2, Class A
- Cooling System
- Convection
- Immunity
- Generic Standards: EN/BS EN 55024, EN/BS EN 61000-6-1, EN/BS EN 61000-6-2
- Voltage Fluctuation and Flicker
- IEC/EN/BS EN 61000-3-3
- Output Voltage Adjustment Range
- 5.0-5.5Vdc
- DC Input Voltage Range
- 120-375Vdc
- Start-up with Capacitive Loads
- 3,000µF Max
- Vibration (Operating)
- IEC 60068-2-6, Sine Wave: 10-500Hz; 2G peak; displacement of 0.35mm; 1 octave per min; 60 min per axis for all X, Y, Z directions
- Shock Test (Operating)
- IEC 60068-2-27, Half Sine Wave: 10G for a duration of 11ms; 1 time in X axis
- Industrial Control Equipment
- UL/cUL listed: UL 508 and CSA C22.2 No. 107.1-01 (File No. E315335)
- Safety Entry Low Voltage
- SELV (IEC 60950)
- Component Power Supply for General Use
- EN 61204-3
