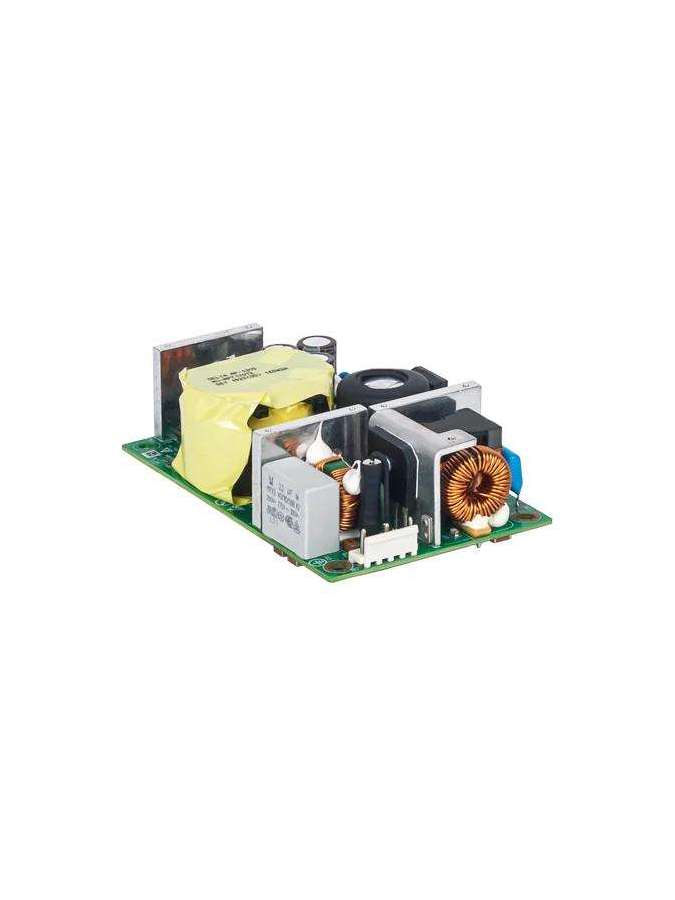

PJL-48V200WBAA DELTA

Fiche technique

Output Current

4.17A

Output Voltage

48V

Output Power

200W

Nominal Input Voltage

100-277Vac

Input Voltage Range

85-305Vac

Nominal Input Frequency

50-60Hz

Input Frequency Range

47-63Hz

Operating Temperature

-40°C to +70°C

Storage Temperature

-40°C to +85°C

Operating Humidity

5 to 95% RH (Non-Condensing)

Vibration (Non-Operating)

IEC 60068-2-6, 10Hz to 150Hz @ 25m/S² (2.5G peak); displacement of 0.35mm; 90 min per axis for all X, Y, Z direction

Expected Cap Life Time

10 years (115Vac & 230Vac, 50% load @ 40°C)

CE

In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU

UKCA

In conformance with Electromagnetic Compatibility Regulations 2016 and Electrical Equipment (Safety) Regulations 2016

Emission

Generic Standards: CISPR 32, EN/BS EN 55032: Class B

Harmonic Current Emissions

IEC/EN/BS EN 61000-3-2, Class C

Voltage Fluctuation and Flicker

IEC/EN/BS EN 61000-3-3 at nominal voltages and full load

Line Regulation

± 1% typ. (@ 100-277Vac input, 100% load)

Load Regulation

± 2% typ. (@ 100-277Vac input, 0-100% load)

Dynamic Response (Overshoot and Undershoot O/P Voltage)

± 5% @ 100-305Vac input, 0-50% load & 50-100% load & 0-100% load (Slew Rate: 2.5A/µS, 50% duty cycle @ 5Hz, 50Hz, 1KHz)

Shock Test (Non-Operating)

IEC 60068-2-27, Half Sine 50G for a duration of 11ms, 3 times per direction, 9 times in total

Over Temperature

Latch Mode

Short Circuit

Hiccup Mode, Non-Latching (Auto-recovery when the fault is removed)

Protection Against Shock

Class I with Primary Earth connection

Output Voltage Adjustment Range

48-50Vdc

Start-up with Capacitive Loads

680µF Max

Operating Altitude

0 to 5,000 Meters (16,400 ft.)

Safety Entry Low Voltage

SELV (IEC 60950-1)

Immunity

Generic Standards: EN/BS EN 55024, EN/BS EN 55035

Indicator

NA

Pollution Degree

2

Over Voltage Category

II
